FUEL PRESSURE/REGULATOR
REMOVAL
(1) Release fuel pressure, Refer to Fuel System
Pressure Release Procedure in the Fuel Delivery sec-
tion.
(2) Remove Fuel Tank refer to the Fuel Tank
Removal/Installation in this group.
(3) Lower fuel tank and remove the purge line and
vent line.
(4) Disconnect fuel line from pressure regulator.
(5) Push locking tab in from locking slot. Turn
pressure regulator to unlock it (Fig. 13).
(6) Pull regulator straight up.
INSTALLATION
(1) Push regulator down and into place.
(2) Turn fuel pressure regulator to lock it in place
(Fig. 13). Make sure take the locking tab is in the
locking slot.
(3) Connect fuel line to regulator
(4) Raise the fuel tank on the transmission stand.
(5) Install fuel pump electrical connector into hole
in the body.
(6) Connect the purge and vent lines.
(7) Raise tank into position and install tank
straps.
(8) Install the fuel filler tube and tighten the
clamp.
(9) Reposition the stabilizer bar and install bolts.
(10) Lower vehicle.
(11) Connect the fuel pump electrical connector
that is in the rear seat.
(12) Install the rear seat.
(13) Connect the battery cable.
(14) Fill fuel tank. Use the DRB scan tool to pres-
surize the fuel system. Check for leaks.
FUEL PUMP INLET STRAINER
REMOVAL
(1) Remove fuel pump module. Refer to Fuel Pump
Module Removal in this section.
(2) Using a thin straight blade screwdriver, pry
back the locking tabs on fuel pump reservoir and
remove the strainer (Fig. 14).
(3) Remove strainer O-ring from the fuel pump
reservoir body.
(4) Remove any contaminants in the fuel tank by
washing the inside of the fuel tank.
INSTALLATION
(1) Lubricate the strainer O-ring with clean engine
oil.
(2) Insert strainer O-ring into outlet of strainer so
that it sits evenly on the step inside the outlet.
(3) Push strainer onto the inlet of the fuel pump
reservoir body. Make sure the locking tabs on the
reservoir body lock over the locking tangs on the
strainer.
(4) Install fuel pump module. Refer to Fuel Pump
Module Installation in this section.
FUEL LEVEL SENSOR
REMOVAL
Remove fuel pump module. Refer to Fuel Pump
Module in this section.

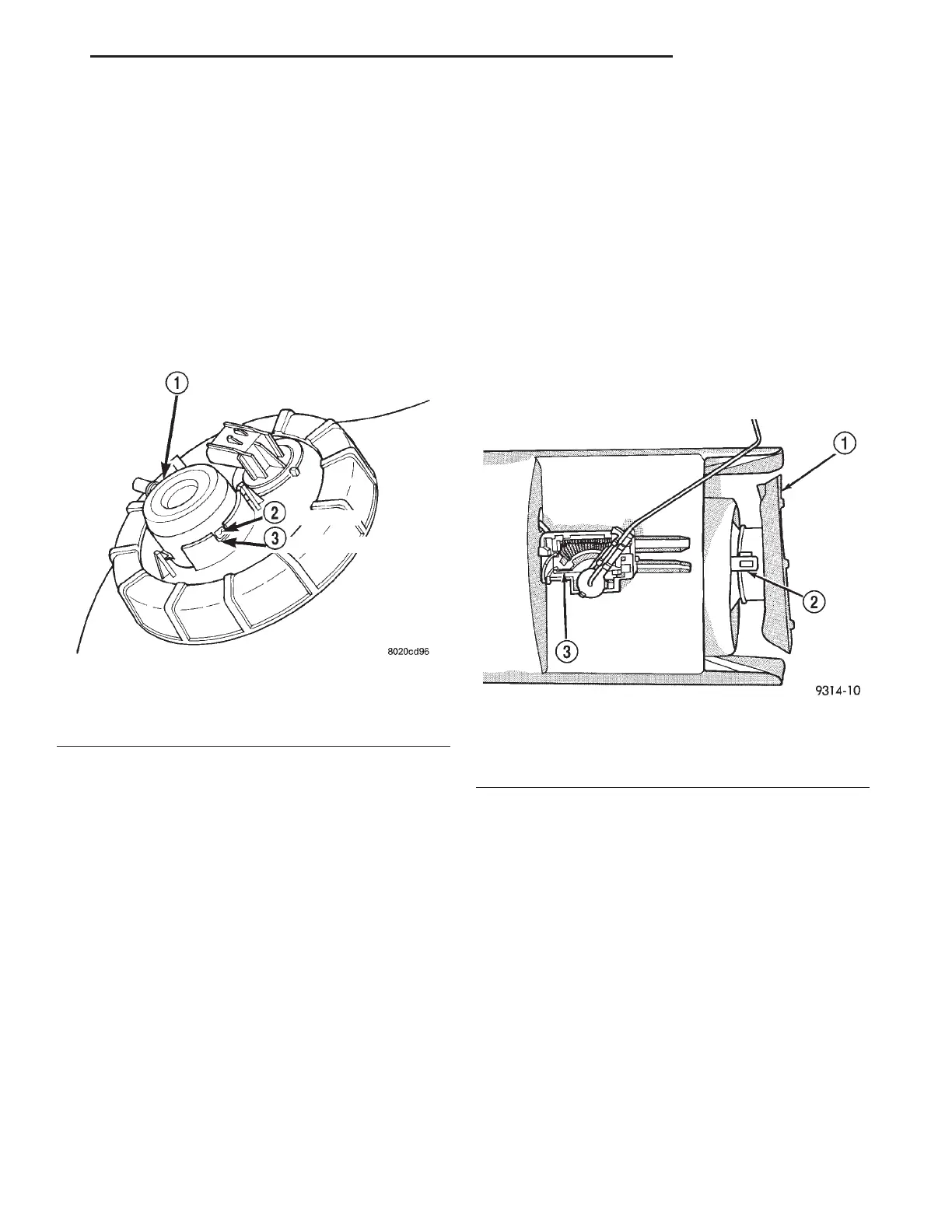

Fig. 13 Fuel Pressure Regulator Locking Tab
1 – FUEL FILTER/PRESSURE REGULATOR
2 – SPRING TAB
3 – LOCATING SLOT
Fig. 14 Inlet Strainer Removal
1 – INLET STRAINER
2 – RETAINING CLIP
3 – FUEL LEVEL SENSOR
LH FUEL SYSTEM 14 - 11
REMOVAL AND INSTALLATION (Continued)
