(1) Assemble hoses on Power Steering Analyzer,
Special Tool 6815, as shown. Install Pressure Hose,
Special Tool 6905 (in 6893 kit), in the inlet fitting on
Power Steering Analyzer. Install Pressure Hose, Spe-
cial Tool 6713 (in 6815 kit) on Pressure Hose, Special
Tool 6905. Install Pressure Hose, Special Tool 6959,
in the outlet fitting on Power Steering Analyzer.
Install the following adapters from Adapter Set,
Special Tool 6893 (Fig. 3), on the analyzer hose ends:
• 2.7L engine — Install Adapter Fitting, Special
Tool 6844, on Pressure Hose, Special Tool 6713.
• 3.2L or 3.5L engine — Install Adapter Fitting,
Special Tool 6825, on Pressure Hose, Special Tool
6713.
• All models — Install Adapter Fitting, Special
Tool 6826, on Pressure Hose, Special Tool 6959.
CAUTION: To prevent personal injury, safety gog-
gles should be worn at all times when performing
any test procedures on the power steering pump or
power steering gear.
The following procedure is to be used to test the
operation of the power steering system on the vehi-
cle.
(2) Check belt tension and adjust as necessary.
NOTE: On vehicles with 3.2 and 3.5 liter engines, it
may be easier to access the power steering pump
pressure fitting from the bottom of the vehicle
engine compartment.
(3) Disconnect the power steering fluid pressure
hose from the power steering pump (Fig. 4) (Fig. 5).

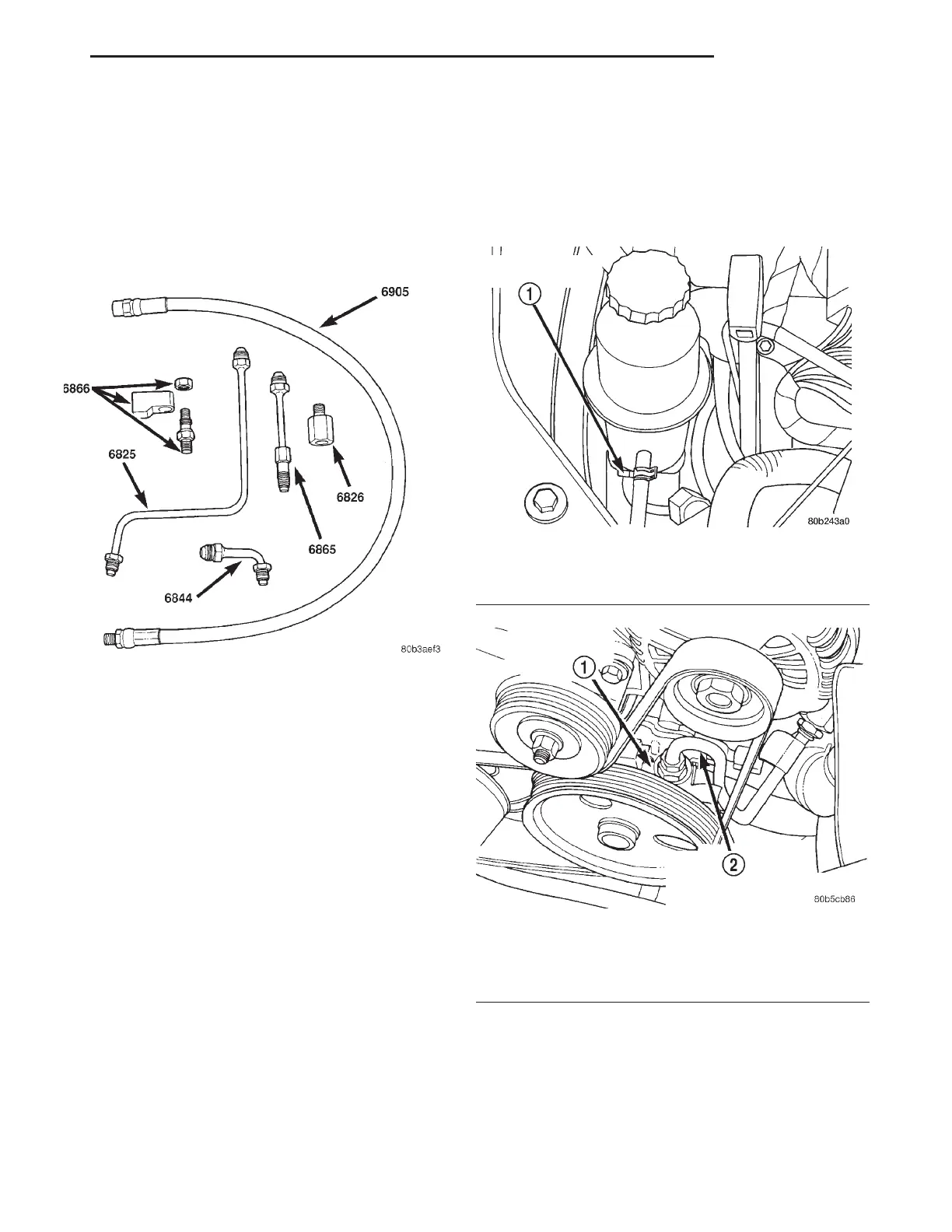

Fig. 3 Power Steering Analyzer Adapters 6893
Fig. 4 Pressure Hose Connection To Power Steering
Pump (2.7L Engine)
1 – POWER STEERING FLUID PRESSURE HOSE
Fig. 5 Pressure Hose Connection To Power Steering
Pump (3.2L/3.5L Engine)
1 – POWER STEERING PUMP
2 – POWER STEERING FLUID PRESSURE HOSE
LH STEERING 19 - 9
DIAGNOSIS AND TESTING (Continued)
