CONDITION POSSIBLE CAUSES CORRECTION
SYSTEM DOES NOT
CANCEL AFTER
COMPLETION OF TURN
1. BROKEN CANCELLING
FINGER ON SWITCH.
2. BROKEN OR MISSING
CANCELLING CAM ON
CLOCKSPRING.
3. STICKING CANCELLING
FINGER ON MULTI-
FUNCTION SWITCH.
1. REPLACE MULTI-FUNCTION SWITCH.
2. REPLACE CLOCKSPRING.
3. REPLACE MULTI-FUNCTION SWITCH.
EXTERNAL LAMPS
OPERATE PROPERLY, NO
INDICATOR LAMP
OPERATION
1. FAULTY INDICATOR
LAMP IN INSTRUMENT
CLUSTER.
1. REPLACE LAMP.

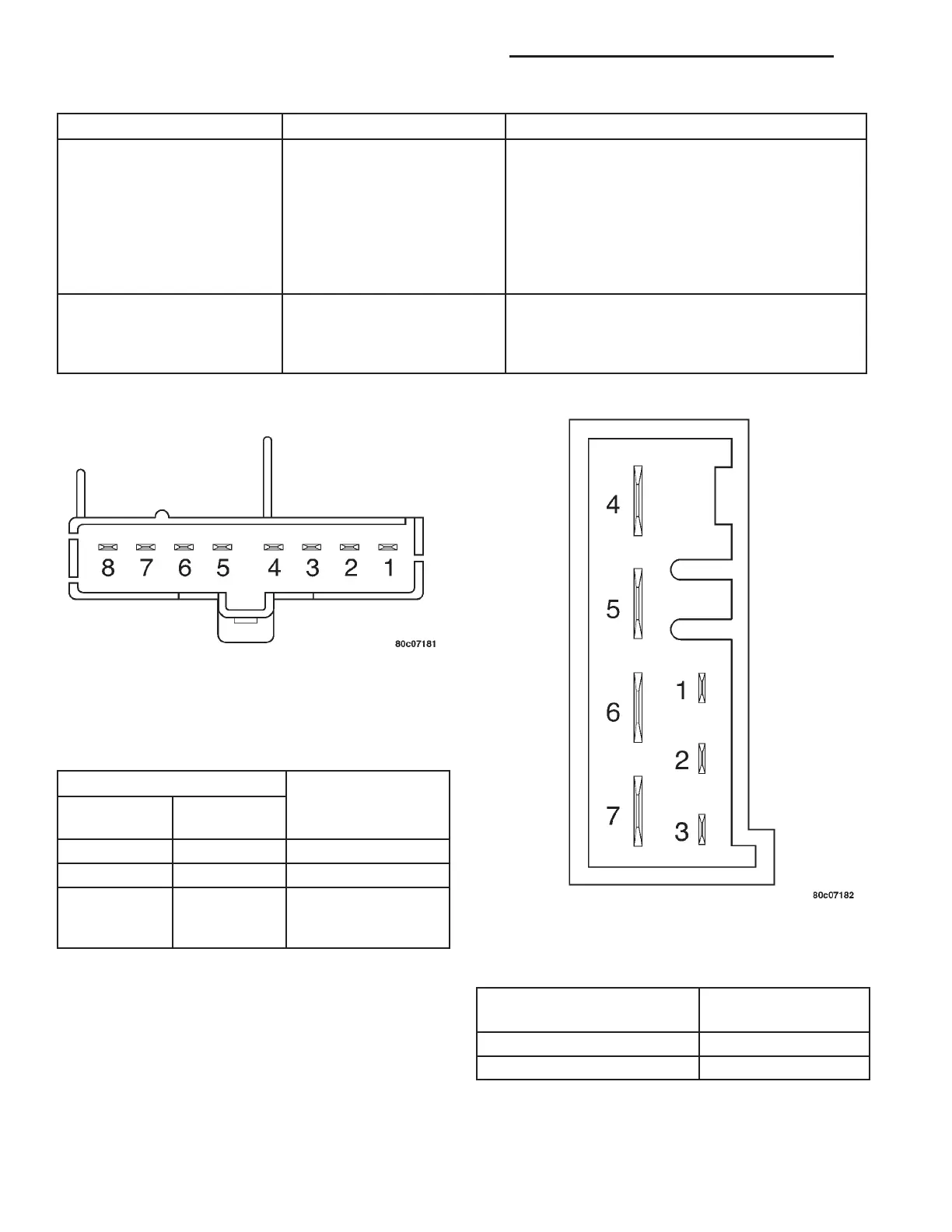

Fig. 3 Turn Signal and Hazard Switch Connector Pin
Call-Out
TURN SIGNAL AND HAZARD SWITCH
CONTINUITY
SWITCH POSITION CONTINUITY
BETWEEN
TURN
SIGNAL
HAZARD
WARNING
LEFT OFF 7 AND 6
RIGHT OFF 7 AND 8
NEUTRAL ON 7 AND 8
7 AND 6
4 AND 5
Fig. 4 Beam Select Switch Connector Pin Call-Out
BEAM SELECT SWITCH CONTINUITY
SWITCH POSITION CONTINUITY
BETWEEN
HIGH BEAM 7 AND 4
OPTICAL HORN 7 AND 5
8J - 4 TURN SIGNAL AND HAZARD WARNING SYSTEMS LH
DIAGNOSIS AND TESTING (Continued)
