(4) Install bolt attaching 40 seat section. Tighten
bolt to 16 N·m (12 ft. lbs.) torque.
(5) Place seat back collar assembly in position in
vehicle.
(6) Install nuts attaching seat back collar assem-
bly. Tighten nuts to 40 N·m (29 ft. lbs.) torque.
(7) Install the rear seat cushion.
REAR SEAT BACK COLLAR ASSEMBLY – 60/40
SEAT
REMOVAL
(1) Open door.
(2) Remove rear seat cushion.
(3) Remove nuts attaching rear seat back collar
assembly.
(4) Remove rear seat back collar assembly.
(5) Remove the 40 seat section from the rear seat
back collar assembly.
(6) Remove the 60 seat section from the rear seat
back collar assembly (Fig. 28).
INSTALLATION
(1) Install the 60 seat section from the rear seat
back collar assembly.
(2) Install the 40 seat section from the rear seat
back collar assembly.
(3) Place the rear seat back collar assembly in
position in vehicle.
(4) Install nuts attaching rear seat back collar
assembly. Tighten nuts to 40 N·m (29 ft. lbs.) torque.
(5) Install the rear seat cushion.

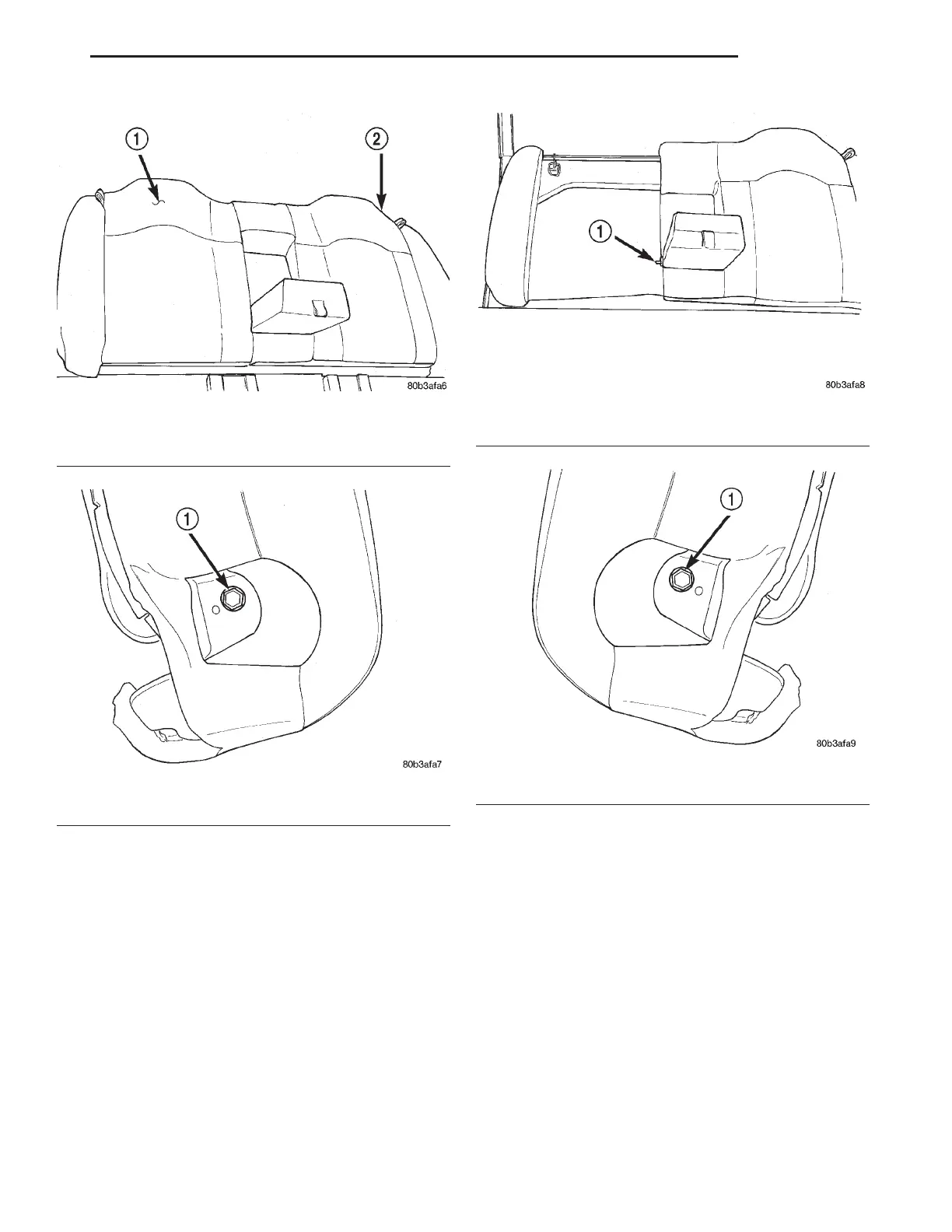

Fig. 24 Collar Assembly
1 – 40–SECTION
2 – 60–SECTION
Fig. 25 Remove 40 Section Seat Back
1 – ATTACHING BOLT
Fig. 26 40 Section Pivot Pin
1 – PIN
Fig. 27 Rear Seat Back 60 Section
1 – ATTACHING BOLT
LH BODY 23 - 19
REMOVAL AND INSTALLATION (Continued)
