(7) Roll cover to top of cushion and remove head
restraint sleeve guides.
(8) Remove cover from seat back.
INSTALLATION
NOTE: Do not reuse the recliner assembly attach-
ing bolts.
(1) Position cover at the top of seat back.
(2) Carefully roll cover down to the area that hog
rings are to be installed.
(3) Install hog rings.
(4) Roll cover downward.
(5) Engage the J-strap retainer
(6) Install lumbar support handle, if equipped.
(7) Install new head restraint sleeve guides.
(8) Install seat back to seat cushion. Tighten bolts
to 30 N·m (22 ft. lbs.) torque.
(9) Install seat in vehicle.
(10) Install head restraint.
(11) Check seat back operation.
FRONT SEAT HEAD RESTRAINT
REMOVAL
(1) Lower head restraint slightly.
(2) Insert a stiff wire into the hole on the right
hand side head restraint sleeve/guide and push to
release latch (Fig. 14).
(3) At the same time, press the button on the head
restraint sleeve/guide left hand side and pull upward
to release the head restraint.
(4) Remove head restraint from seat back.
INSTALLATION
(1) Place head restraint in position.
(2) Push head restraint down into the lock posi-
tion.
(3) Raise head restraint to ensure it locks at the
last stop.
FRONT SEAT LUMBAR SUPPORT
The front seat lumbar support is not service sepa-
rately. The front seat back frame will need to be
replaced.
FRONT SEAT TRACK AND RECLINER
REMOVAL
(1) Remove front seat from vehicle.
(2) Remove seat cushion side shield and disconnect
switch connector, if equipped.
(3) Remove bolts attaching seat back recliner to
seat back frame on each side of seat (Fig. 15).
(4) Remove bolts attaching seat adjuster to cush-
ion pan (Fig. 16).
(5) Disconnect wire harness fasteners from cushion
pan.
(6) Remove seat adjuster from seat cushion.
INSTALLATION
(1) Place seat adjuster in position on seat cushion
pan.
(2) Connect wire harness fasteners to the cushion
pan.
(3) Install bolts attaching seat adjuster to cushion
pad.
(4) Install seat back.
(5) Install bolt to attach seat back recliner to seat
back on each side of seat. Tighten bolt to 8 N·m (71
in. lbs.) torque.

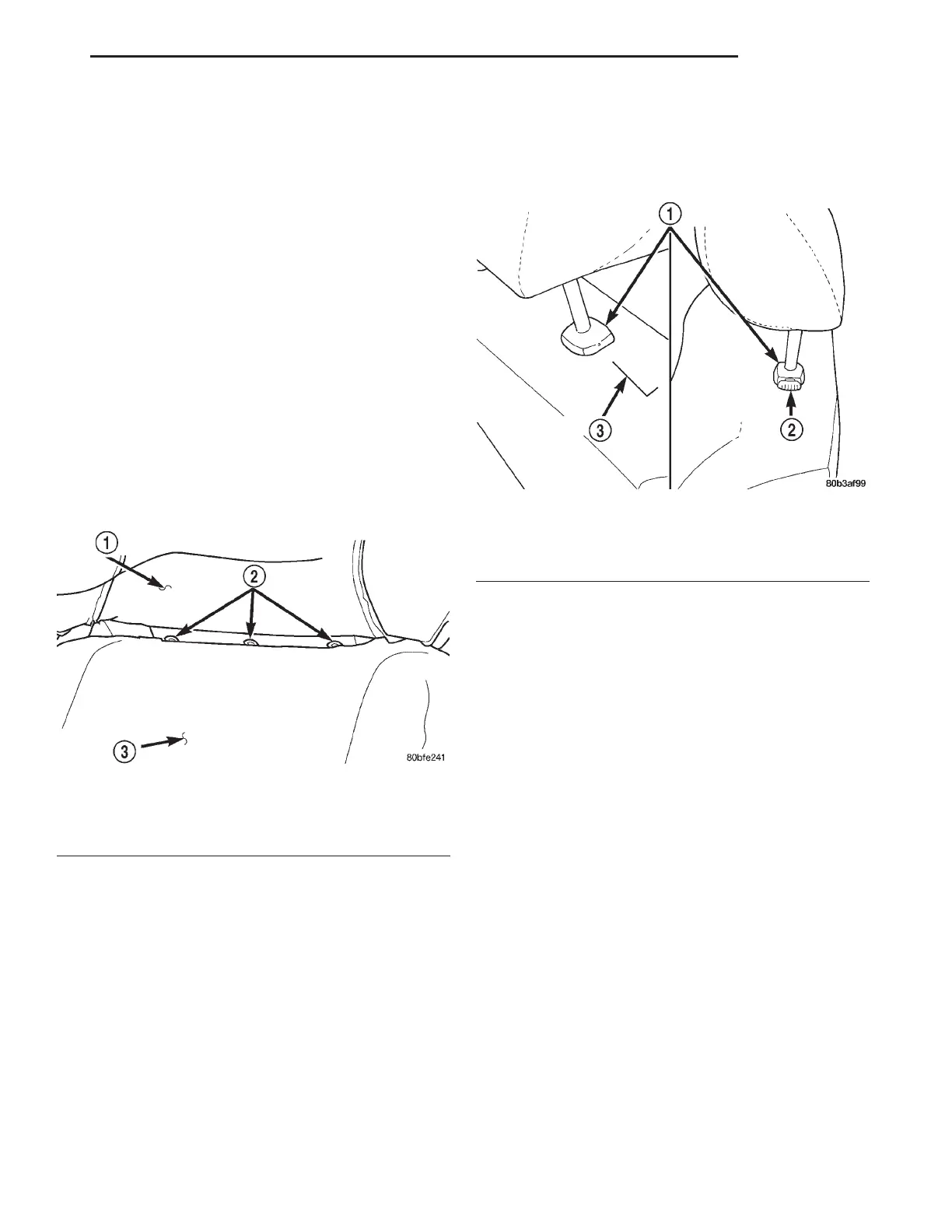

Fig. 13 Front Seat Back Hog Rings
1 – SEAT COVER
2 – HOG RINGS
3 – BACK PAD
Fig. 14 Head Restraint Removal
1 – SLEEVE GUIDE
2 – BUTTON
3 – STIFF WIRE
LH BODY 23 - 15
REMOVAL AND INSTALLATION (Continued)
