(5) Align fascia to bumper reinforcement.
(6) Align the two fascia studs to the fender vertical
attachments, at the same time align the fascia groove
on the horizontal flange with the fender fasteners.
Push fascia rearward to engage the fasteners.
(7) Install nut on fascia stud through the splash
shield access hole, on each side.
FRONT BUMPER FASCIA – INTREPID
REMOVAL
(1) Release hood latch and open hood.
(2) Remove push in fasteners attaching bottom of
fascia (air dam) to lower crossmember (Fig. 6).
(3) Remove fasteners attaching fascia to front
fenders and splash shields (Fig. 7).

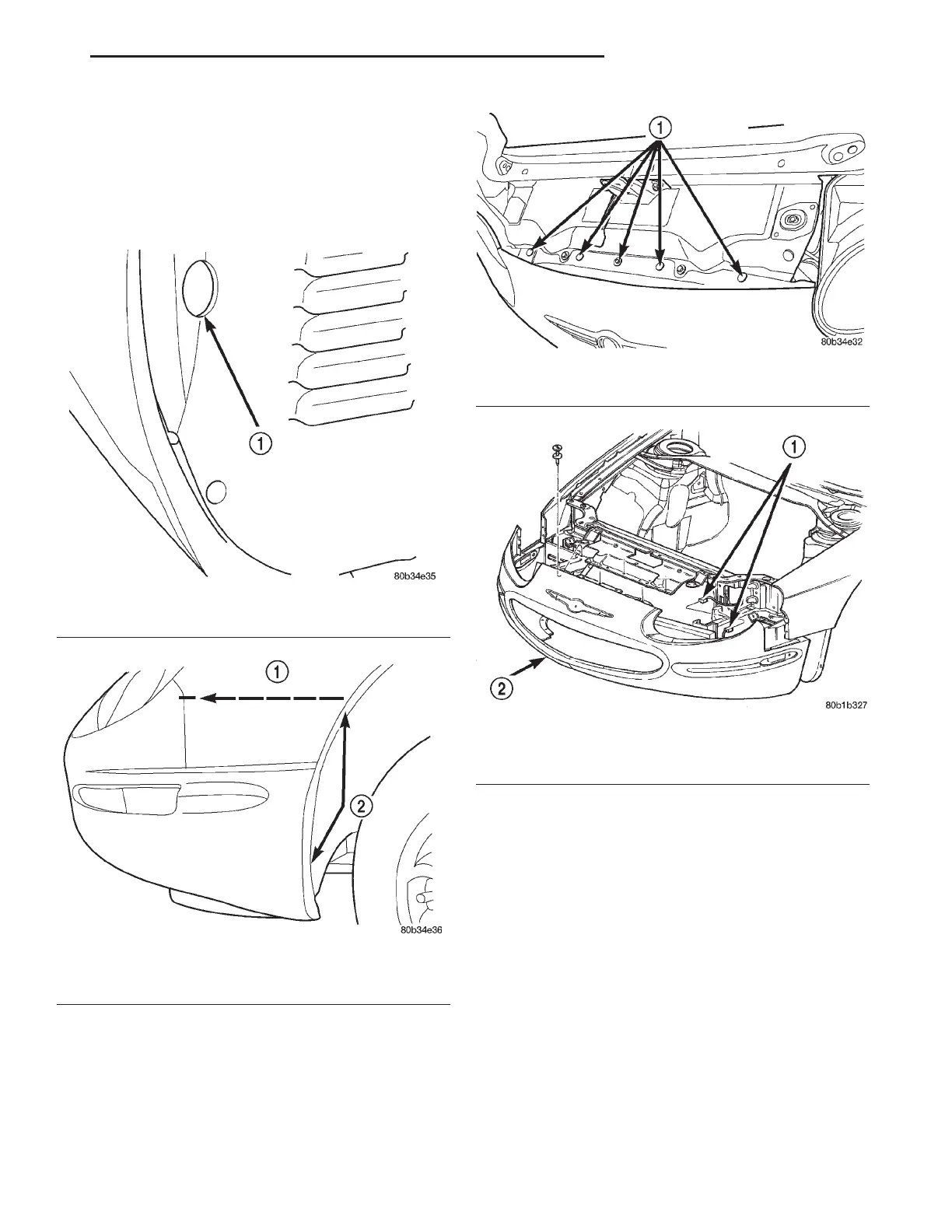

Fig. 2 Access Rubber Grommet
1 – ACCESS RUBBER GROMMET
Fig. 3 Fastener Locations
1 – THROUGH ACCESS REMOVE FASTENER
2 – FASTENERS
Fig. 4 Remove Push In Fasteners
1 – PUSH IN FASTENERS
Fig. 5 Front Bumper Fascia
1 – BODY & FASCIA WIRE CONNECTORS
2 – FRONT FASCIA
LH FRAMES AND BUMPERS 13 - 3
REMOVAL AND INSTALLATION (Continued)
