(11) Disconnect hood release cable from hood latch.
(12) Remove cooling fan module. Refer to COOL-
ING SYSTEM.
(13) Disconnect upper radiator hose at engine.
(14) Disconnect lower radiator hose at radiator.
(15) Disconnect engine oil cooler lines at radiator
(if equpped).
(16) Disconnect transmission oil cooler lines at
radiator.
(17) Remove fasteners attaching A/C condenser to
radiator.
(18) Remove transaxle cooler lines support bracket
and attaching screw at left side of radiator.
(19) Remove radiator.
(20) Remove accessory drive belts. Refer to COOL-
ING SYSTEM.
(21) Remove power steering pump mounting bolts
and set pump aside. Refer to STEERING for proce-
dure.
NOTE: Generator can be removed with engine
assembly.
(22) Disconnect A/C compressor electrical connec-
tor.
(23) Remove A/C compressor mounting bolts and
set compressor aside.
(24) Loosen and remove V-Band clamps at exhaust
manifolds.
(25) Disconnect throttle and speed control cables.
(26) Disconnect coolant hoses at coolant pressure
bottle.
(27) Disconnect heater hoses.
(28) Perform fuel pressure release procedure and
disconnect fuel line.
(29) Disconnect all vacuum lines and electrical
connectors.
(30) Disconnect all ground straps attaching to
engine.
(31) Hoist vehicle and drain engine oil.
(32) Remove fasteners supporting catalytic con-
verter down pipes at front and rear mounts.
(33) Remove structural collar bolts from oil pan
and transaxle. Remove structural collar.

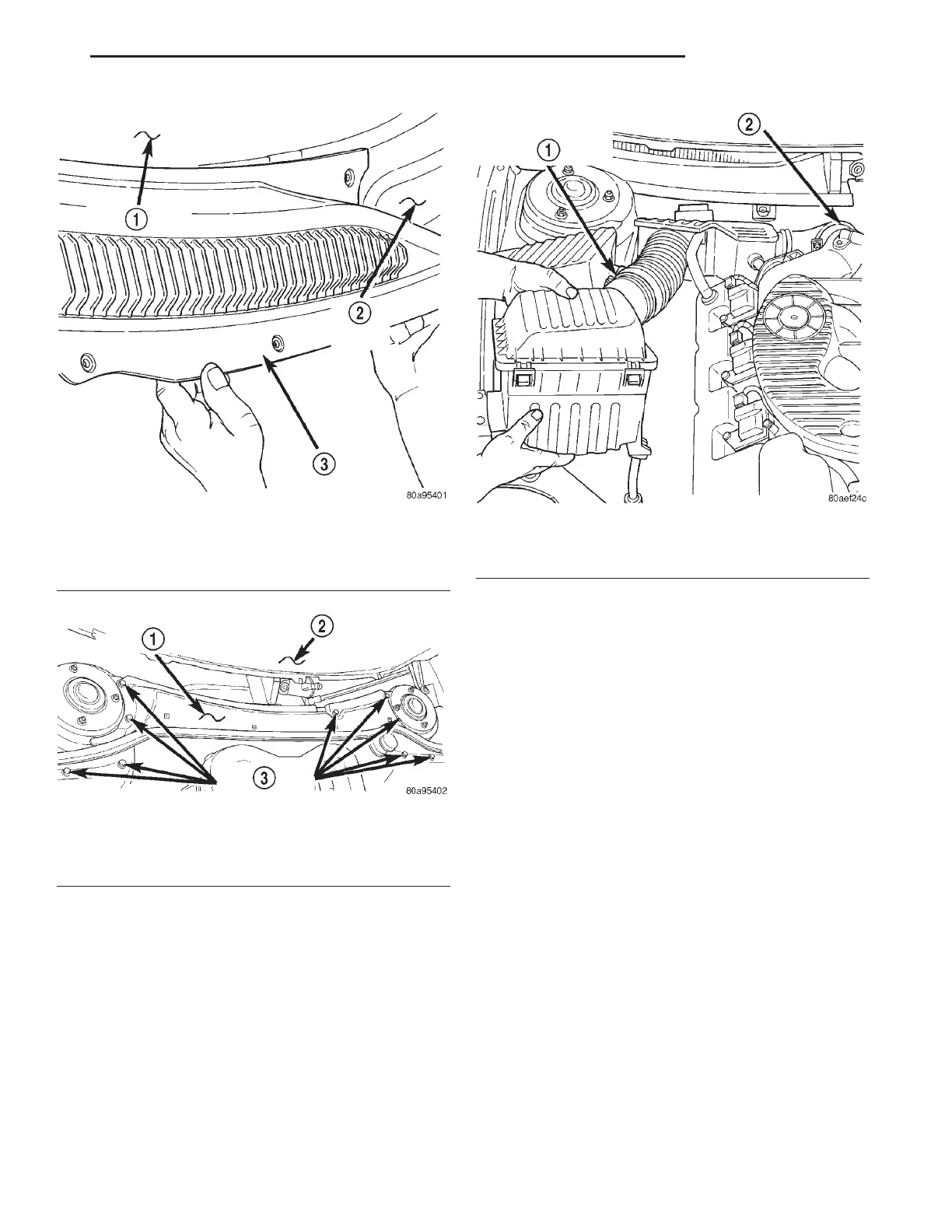

Fig. 42 Cowl Covers
1 – WINDSHIELD
2 – LEFT COWL COVER
3 – RIGHT COWL COVER
Fig. 43 Cowl Support
1 – COWL SUPPORT
2 – WINDSHIELD
3 – SUPPORT FASTENERS
Fig. 44 Air Cleaner and Inlet Hose
1 – AIR CLEANER ASSEMBLY WITH AIR INLET HOSE
2 – THROTTLE BODY
LH 2.7L ENGINE 9 - 33
REMOVAL AND INSTALLATION (Continued)
