(2) Open the glove box door, and pull out the glove
box lamp/switch assembly from upper right hand cor-
ner of opening (Fig. 19).
(3) Replace the lamp if necessary.
(4) To replace the lamp/switch assembly, discon-
nect the wire connector.
(5) Remove the lamp/switch assembly.
INSTALLATION
For installation, reverse the above procedures.
HEADLAMP SWITCH
REMOVAL
(1) Open hood and disconnect the negative battery
cable remote terminal from the remote battery post
(Fig. 22).
(2) Remove the left end cover, left instrument
panel trim cover, and the cluster bezel. Refer to the
various Removal and Installation procedures in this
section.
(3) Remove the three screws retaining headlamp
switch to cluster bezel.
(4) Remove headlamp switch from bezel.
INSTALLATION
For installation, reverse the above procedures.
Twist out lamp sockets are serviceable at this time.
Ensure that the switch is seated against the pad.
HEATER - A/C CONTROLS
REMOVAL
(1) Open hood and disconnect the negative battery
cable remote terminal from the remote battery post
(Fig. 22).
(2) Remove the ash receiver assembly, if necessary.
(3) Remove the instrument panel center trim bezel
and remove the two electrical connectors from the
back of the control head and traction control switch
(if equipped) (Fig. 20) and (Fig. 21).
(4) From the back of the center trim bezel, remove
the six retaining screws from the heater - a/c control
head and remove from the bezel.
INSTALLATION
For installation, reverse the above procedures.
IN-DASH CD CHANGER
Refer to Group 8E-Instrument Panel Systems, In-
Dash CD Changer Removal and Installation.

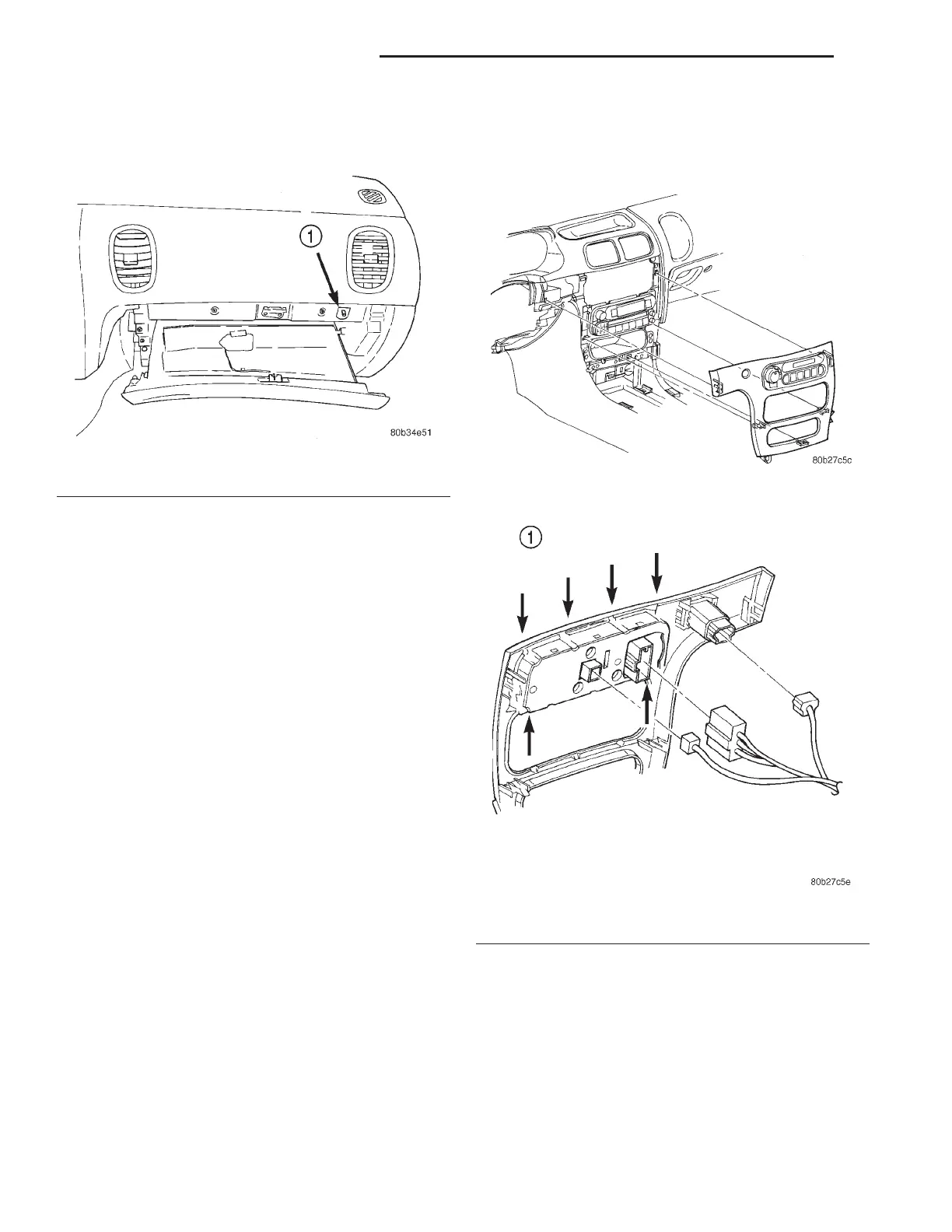

Fig. 19 Glove Box Lamp/Switch
1 – GLOVE BOX LAMP
Fig. 20 Instrument Panel Center Trim Panel
Removal
Fig. 21 Heater - A/C Control Head Removal
1 – RETAINING SCREWS
8E - 14 INSTRUMENT PANEL SYSTEMS LH
REMOVAL AND INSTALLATION (Continued)
