WIPER FRAME ASSEMBLY
REMOVAL
(1) Open hood and disconnect the negative battery
cable remote terminal from the remote battery post.
(2) Remove driver and passenger side wiper arms.
Refer to Wiper Arm Removal and Installation proce-
dures in this section.
(3) Remove nine screws to cowl screen panel. Refer
to Group 23, Body for Removal and Installation pro-
cedures.
(4) Remove wiper module mounting bolt located on
top of the tower to tower beam.
(5) Remove eight bolts to Tower to Tower (crosscar)
support (Fig. 15). Refer to Group 23, Body for
Removal and Installation procedures.
(6) Remove three retaining bolts to windshield
wiper module (Fig. 16).
(7) Lift wiper module away from vehicle body.
(8) Disconnect one wire connector.
(9) Remove windshield wiper module from vehicle.
TRANSFER PARTS
(1) Transfer wiper module grommets to new mod-
ule assembly (Fig. 17).
(2) Remove one nut to crank arm and remove from
motor (Fig. 19).
(3) Remove three retaining bolts from wiper motor
(Fig. 19).
(4) Remove wiper motor from wiper module assem-
bly. Install onto new wiper module assembly. Refer to
Wiper Motor Removal and Installation procedures in
this section.
INSTALLATION
For installation, reverse the above procedures.
(1) Start rear outboard screw first, rear inboard
screw second, and forward outboard screw last.
(2) Start all module mounting screws and bolt by
hand before torquing to specifications.
(3) Assur wiper module pivots are in “PARK” posi-
tion cycling the switch “ON” and “OFF” with engine
off prior to installing arms and blades.

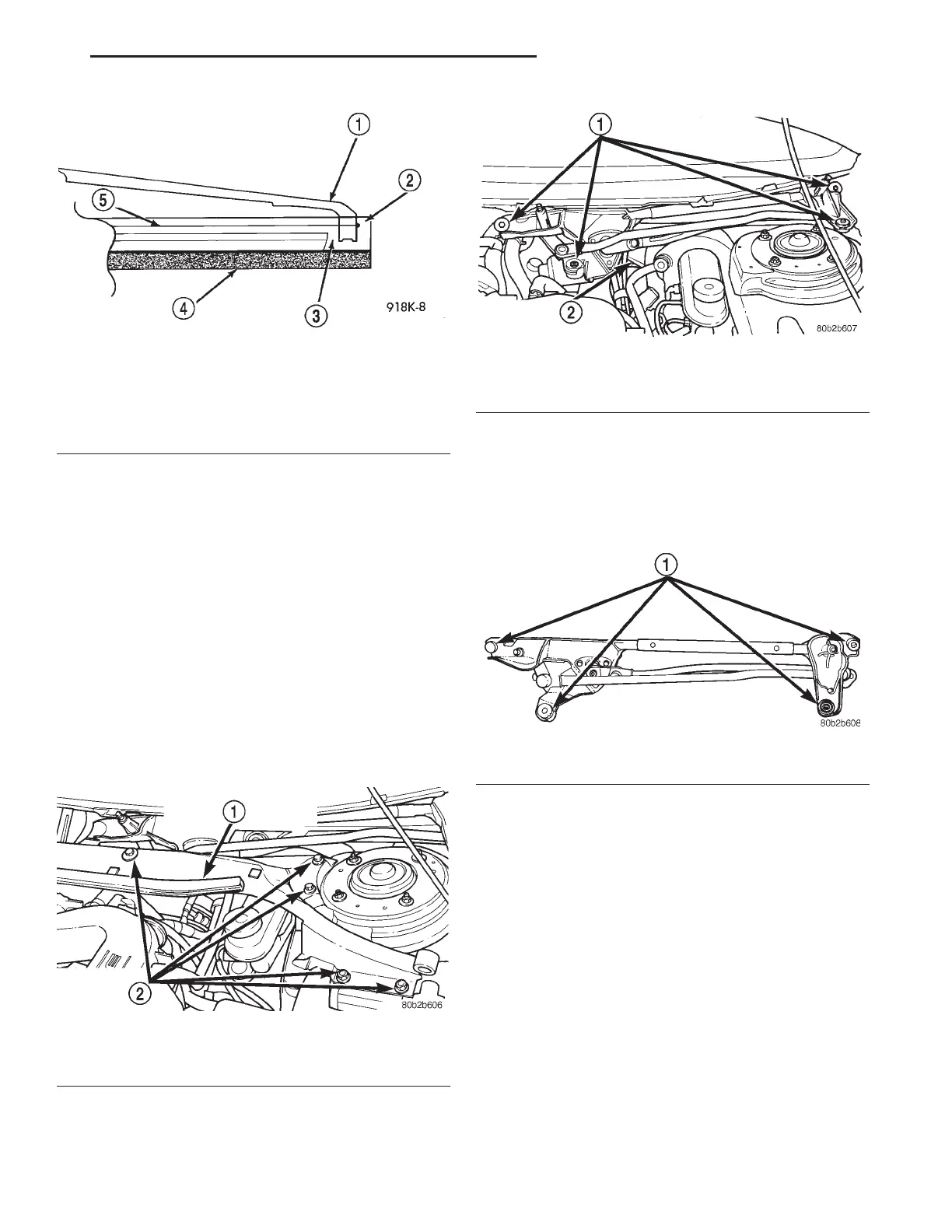

Fig. 14 Wiper Blade and Element
1 – CLAW
2 – TO GRASP AND PULL
3 – CHANNEL
4 – RUBBER ELEMENT
5 – VERTABRA
Fig. 15 Tower to Tower Support Removal
1 – TOWER TO TOWER SUPPORT
2 – RETAINING BOLTS
Fig. 16 Wiper Module Retaining Bolts
1 – RETAINING BOLTS
2 – WIPER MOTOR CONNECTOR
Fig. 17 Wiper Frame Grommets
1 – GROMMETS
LH WIPER AND WASHER SYSTEMS 8K - 17
REMOVAL AND INSTALLATION (Continued)
