REMOVAL
(1) Remove the negative battery cable.
(2) Disconnect the electrical connector from the
MAP sensor.
(3) Remove bolts from sensor.
(4) Remove sensor.
INSTALLATION
(1) Bolt sensor to intake.
(2) Attach electrical connector to sensor.
(3) Install the negative battery cable.
MANIFOLD TUNING VALVE—2.7L ENGINE
REMOVAL
(1) Disconnect negative battery cable.
(2) Disconnect electrical connector (Fig. 20).
(3) Remove manifold tuning valve mounting
screws. Remove tuning valve (Fig. 21).
INSTALLATION
(1) Install tuning valve. Tighten mounting screws
to 11 N·m (8 ft. lbs.) torque.
(2) Install electrical connector.
(3) Connect negative battery cable.
MANIFOLD TUNING VALVE—3.2/3.5L ENGINE
REMOVAL
(1) Disconnect negative battery cable.
(2) Disconnect electrical connector (Fig. 22).
(3) Remove manifold tuning valve mounting
screws. Remove tuning valve.
INSTALLATION
(1) Install tuning valve. Tighten mounting screws
to 11.9 N·m (105 in. lbs.) torque.
(2) Install electrical connector.
(3) Connect negative battery cable.
SHORT RUNNER VALVE
REMOVAL
(1) Remove the negative battery cable.
(2) Remove link.
(3) Remove 2 bolts.
(4) Remove vacuum hose.
(5) Remove valve.

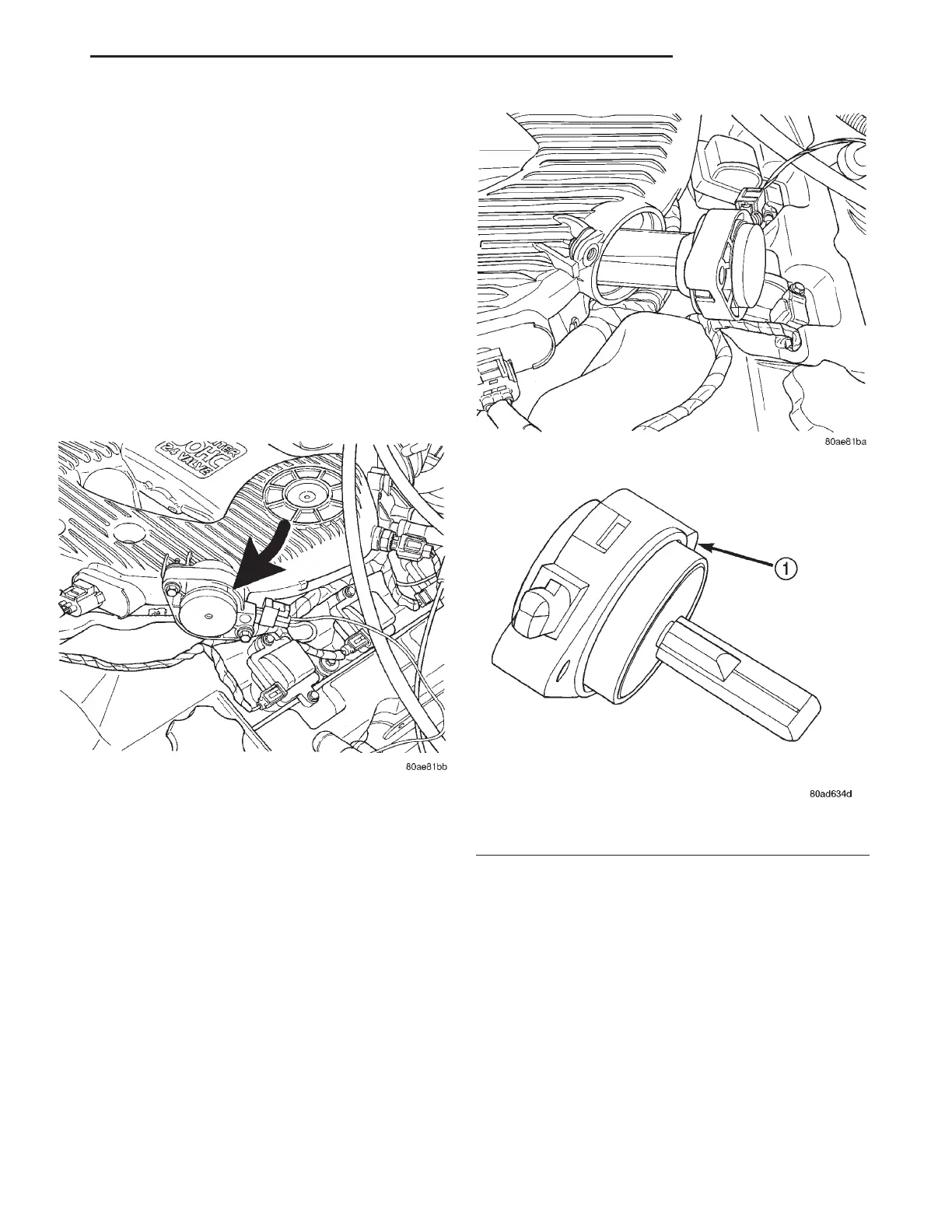

Fig. 20 Manifold Tuning Valve
Fig. 21 Manifold Tuning Valve Removal/Installation
Fig. 22 Manifold Tuning Valve
1 – MTV VALVE
LH FUEL SYSTEM 14 - 39
REMOVAL AND INSTALLATION (Continued)
