(6) Remove the power steering fluid pressure hose
(Fig. 6) from the pressure fitting on the power steer-
ing pump.
(7) Let remaining power steering fluid drain from
the power steering pump.
(8) Loosen the lock-nut (Fig. 7) on the front of the
pulley for the serpentine drive belt tensioner.
(9) Using the adjustment bolt (Fig. 7) remove the
tension from the drive belt for the power steering
pump.
(10) Remove the drive belt from the power steering
pump pulley.
NOTE: Access for the power steering pump mount-
ing bolts is through the holes in the face of the
power steering pump pulley.
(11) Remove the 3 bolts attaching the power steer-
ing pump to the power steering pump mounting
bracket.
NOTE: The following step must be performed to
have the space necessary to remove the power
steering pump from the mounting bracket.
(12) Insert a screwdriver between the power steer-
ing pump and the sleeve in the tensioner bracket
(Fig. 8). Using the screwdriver push the sleeve for-
ward in the tensioner bracket until it is flush with
the back side of the tensioner bracket (Fig. 8).
(13) Remove the power steering pump, power
steering fluid reservoir and pulley as an assembly
from the engine. Power steering pump is removed
from the top of the engine.
(14) Transfer the required parts from the removed
power steering pump to the replacement power steer-
ing pump. See Disassembly and Assembly in this sec-
tion of this group in the service manual.
INSTALLATION
(1) Install the power steering pump back in the
mounting bracket using the reverse sequence of its
removal.

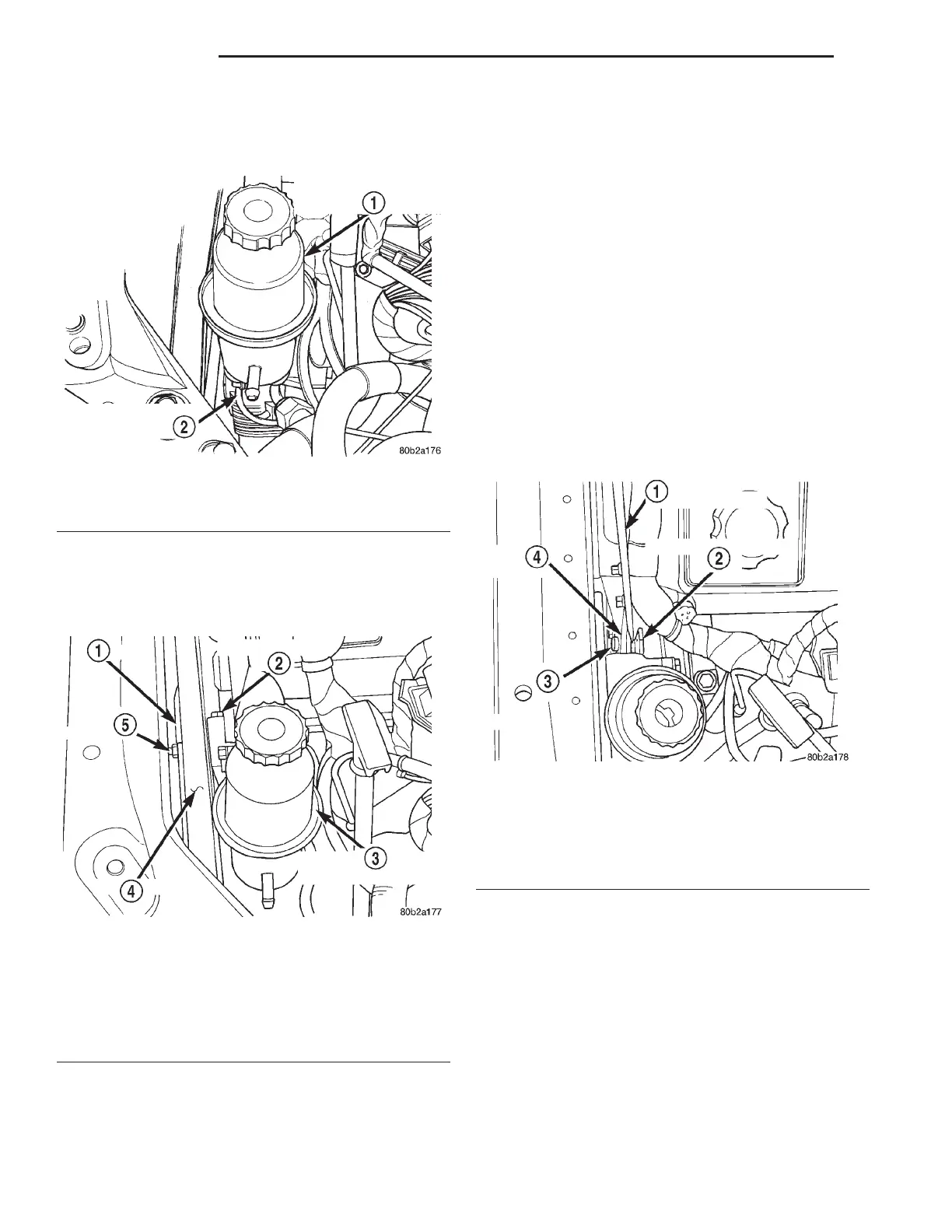

Fig. 6 Pressure Hose At Power Steering Pump
1 – POWER STEERING FLUID RESERVOIR
2 – POWER STEERING FLUID PRESSURE HOSE
Fig. 7 Drive Belt Tensioner Lock-Nut And
Adjustment Bolt
1 – PULLEY
2 – ADJUSTMENT BOLT
3 – POWER STEERING FLUID RESERVOIR
4 – DRIVE BELT
5 – LOCK-NUT
Fig. 8 Tensioner Bracket To Power Steering Pump
Sleeve
1 – SCREWDRIVER
2 – POWER STEERING PUMP
3 – SLEEVE
4 – TENSIONER BRACKET
19 - 22 STEERING LH
REMOVAL AND INSTALLATION (Continued)
