(2) Insert bolt and screw heads through key hole
slots in door panel.
(3) Tighten bolts attaching regulator to door panel.
(4) Tighten bolt to attach regulator support brace
to door panel.
(5) Tighten screw to attach regulator scissor chan-
nel to door panel.
(6) Connect power window motor wire connector.
(7) Lower door glass on to regulator roller channel.
(8) Align glass and verify operation.
(9) Install pull cup support bracket, water shield,
door trim panel and flag cover.
REAR DOOR GLASS
REMOVAL
(1) Remove door trim panel.
(2) Remove water shield as necessary.
(3) Raise door glass to gain access to roller channel
to glass fasteners through holes in inner door panel.
(4) Loosen lift plate nuts attaching regulator roller
channel to glass (Fig. 53).
(5) Slide roller channel rearward to allow lift plate
nuts to pass through key hole slots in channel.
(6) Remove glass from roller channel.
(7) Raise glass upward and out of the opening at
top of door.
INSTALLATION
(1) Lower glass into opening at top of door.
(2) Place glass in position against roller channel.
(3) Insert lift plate nuts into key hole slots in
roller channel and slide channel forward to locked
position.
(4) Tighten nuts to attach regulator roller channel
to glass and lift plate.
(5) Install upper trim retainer channel.
(6) Install water shield.
(7) install door trim panel.
REAR DOOR SAIL PANEL
REMOVAL
(1) Open the rear door.
(2) Using an trim stick, release clip attaching sail
panel to the door.
(3) Remove sail panel.
INSTALLATION
(1) Position sail panel on door.
(2) Press on sail panel to engage clips.
REAR DOOR CHECK STRAP
REMOVAL
(1) Close door glass.
(2) Remove door trim panel.
(3) Remove water shield as necessary.
(4) Remove bolt and nut attaching check strap to
door end and body.
(5) Remove check strap from vehicle (Fig. 54).

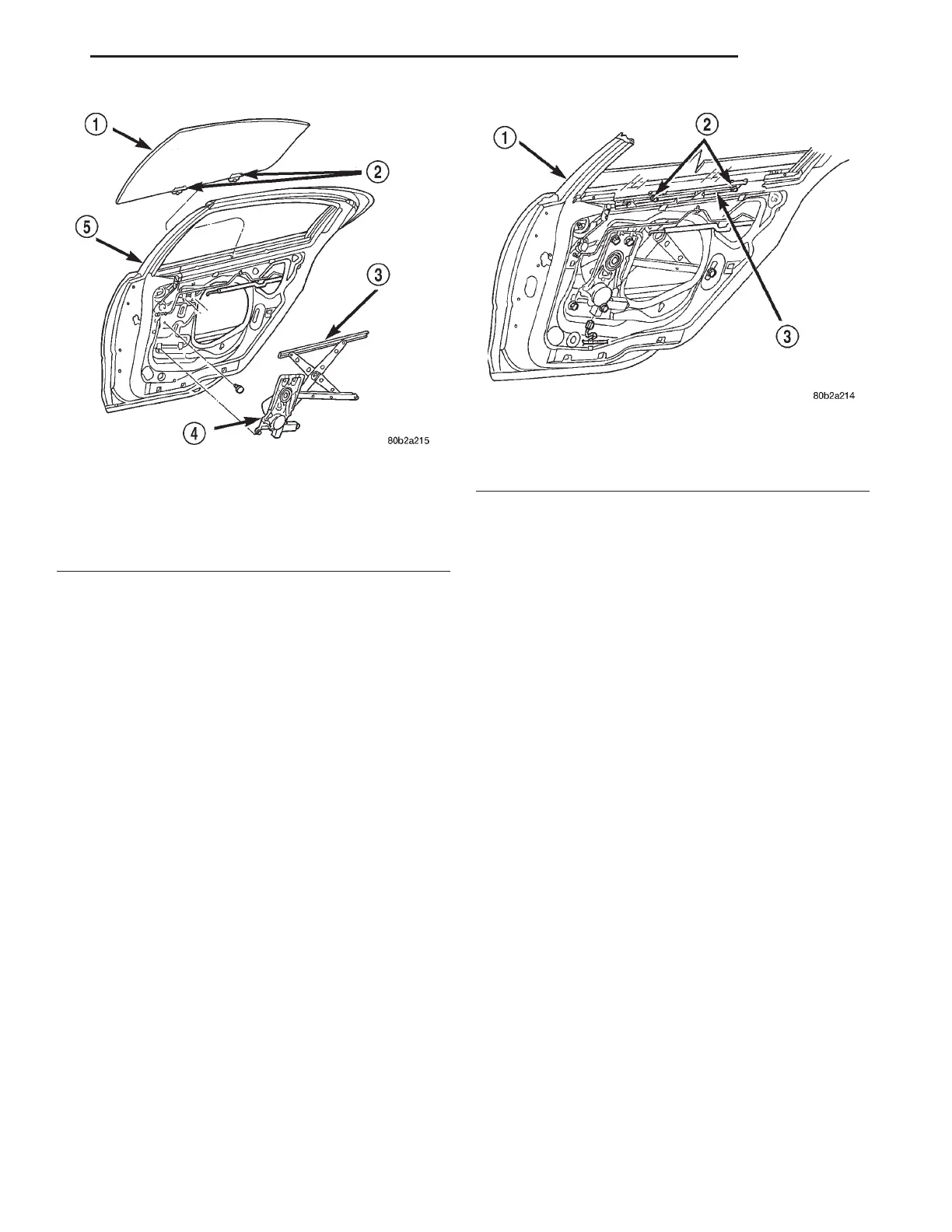

Fig. 52 Rear Door Window Regulator
1 – GLASS
2 – LIFT PLATES
3 – GLASS ROLLER CHANNEL
4 – WINDOW REGULATOR
5 – REAR DOOR
Fig. 53 Rear Door Glass
1 – REAR DOOR
2 – LIFT PLATE NUTS
3 – GLASS ROLLER CHANNEL
LH BODY 23 - 55
REMOVAL AND INSTALLATION (Continued)
