ADJUSTMENTS
FRONT DOOR GLASS ADJUSTMENT
(1) Remove door trim panel.
(2) Remove water shield as necessary.
(3) Loosen fastener attaching scissor channel to
door panel at rear of access hole (Fig. 96).
(4) Position glass in run weatherstrips to achieve
smooth operation and proper fit.
(5) Push glass aft and apply slight downward pres-
sure on scissor channel and tighten screw.
(6) Tighten all fasteners.
(7) Install water shield.
(8) Install door trim panel.
REAR DOOR GLASS ADJUSTMENT
(1) Remove door trim panel.
(2) Remove water shield as necessary.
(3) Loosen fastener attaching scissor channel to
door panel at rear of access hole (Fig. 97).
(4) Position glass in run weatherstrips to achieve
smooth operation and proper fit.
(5) Push glass aft and apply slight downward pres-
sure on scissor channel and tighten screw.
(6) Tighten all fasteners.
(7) Install water shield.
(8) Install door trim panel.
SPECIAL TOOLS
BODY

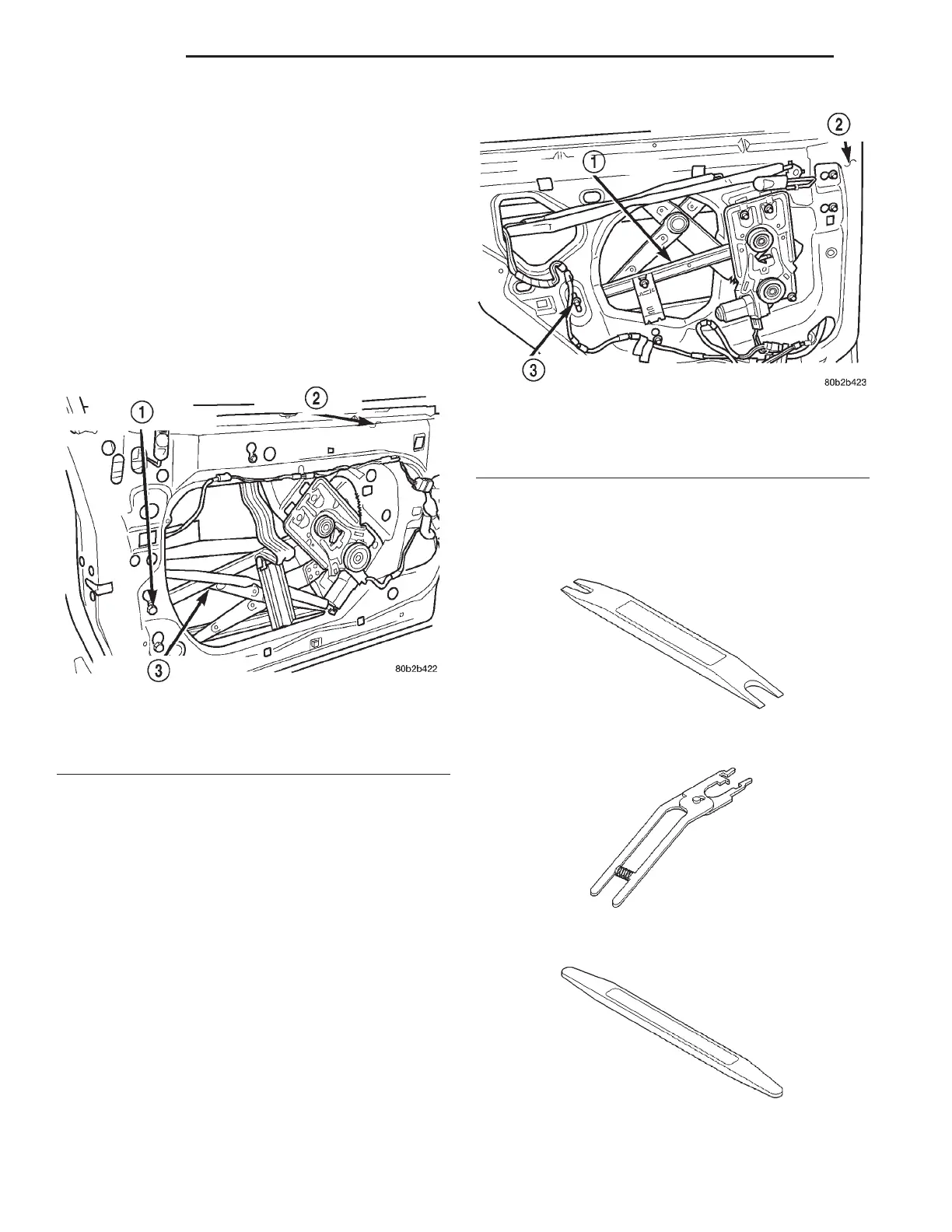

Fig. 96 Front Door Glass Adjustment
1 – DOOR GLASS ADJUSTMENT POINT
2 – FRONT DOOR
3 – SCISSOR CHANNEL
Fig. 97 Rear Door Glass Adjustment
1 – SCISSOR CHANNEL
2 – REAR DOOR
3 – DOOR GLASS ADJUSTMENT
Remover, Moldings C-4829
Pliers, Headliner Clip C–6967
Stick, Trim C-4755
