REMOVAL AND INSTALLATION
MEMORY HEATED SEAT/MIRROR MODULE
(MHSMM)
REMOVAL
(1) Open hood, disconnect and isolate the negative
battery cable remote terminal from the remote bat-
tery post.
(2) Remove two module attaching screws (Fig. 3).
(3) Disconnect four module connectors.
(4) Remove module from vehicle.
INSTALLATION
For installation, reverse the above procedures.
MEMORY SELECTOR SWITCH
REMOVAL
(1) Disconnect and isolate the negative battery
cable remote terminal from the remote battery post.
(2) Unscrew the side shield on the seat, either
driver or passenger side (Fig. 4).
(3) From the bottom, disengage the switch and
gently rock through the opening.
INSTALLATION
For installation, reverse the above procedures.

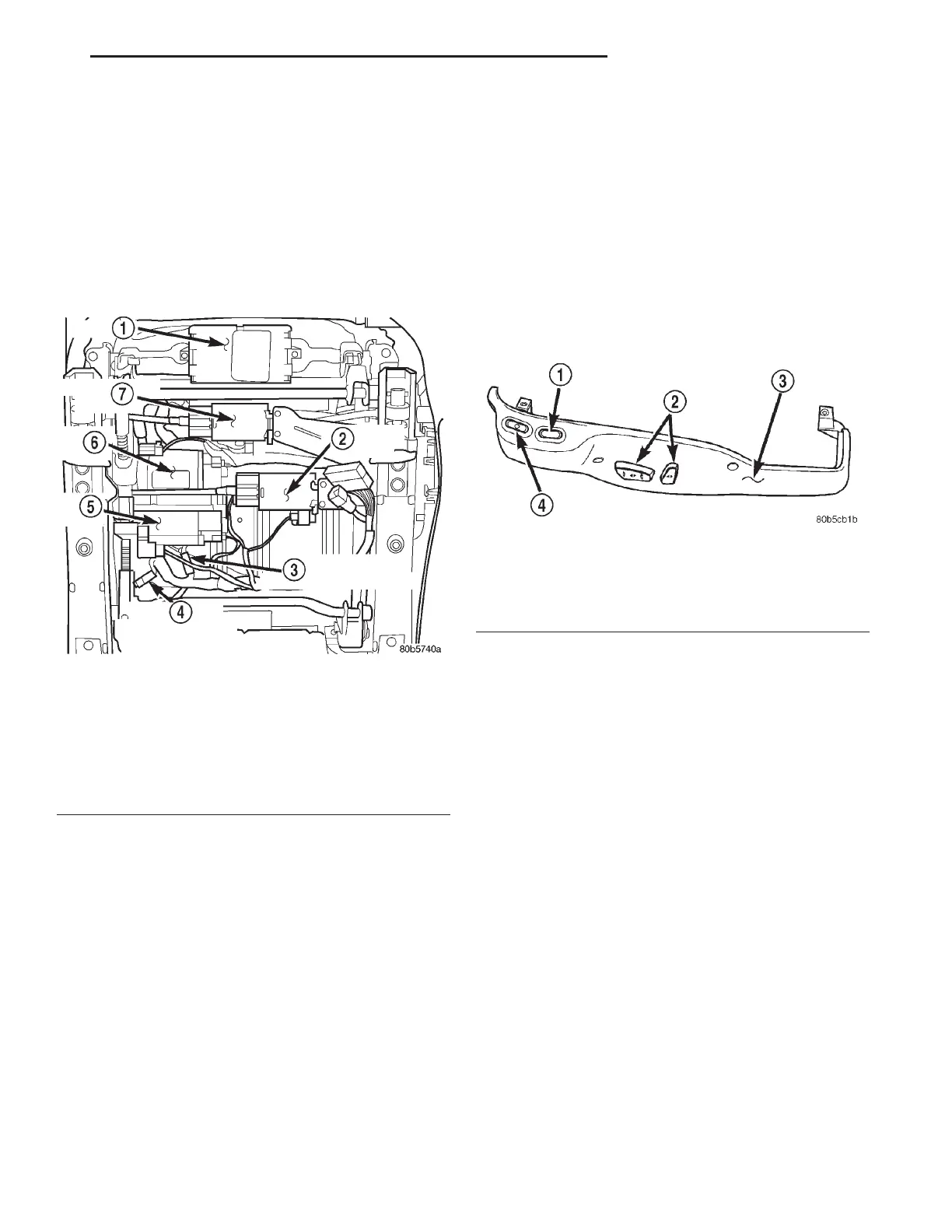

Fig. 3 Memory Heated Seat/Mirror Module Location
1 – MHSMM
2 – RECLINER MOTOR
3 – SEAT HEATER 4–WAY CONNECTOR
4 – SEAT BACK HEATER 2–WAY CONNECTOR
5 – REAR RISER
6 – FRONT RISER
7 – HORIZONTAL MOTOR
Fig. 4 Seat Cushion Side Shield
1 – HEATED SEAT SWITCH
2 – POWER SEAT SWITCH
3 – SEAT CUSHION SIDE SHIELD
4 – MEMORY SELECTOR SWITCH
LH POWER SEAT SYSTEMS 8R - 7
