EXHAUST MANIFOLD
RIGHT EXHAUST MANIFOLD
REMOVAL
(1) Disconnect negative cable from remote jumper
terminal.
(2) Raise vehicle on hoist.
(3) Remove exhaust system. Refer to EXHAUST
SYSTEM for procedure.
(4) Loosen converter pipe support attaching bolt at
transaxle mount.
(5) Loosen A/C belt. Refer to COOLING SYSTEM
for procedure.
(6) Lower vehicle.
(7) Remove air cleaner housing and air inlet tube.
(8) Loosen and remove V-Band clamp at exhaust
manifold connector.
NOTE: Do not reuse V-Band clamp.
(9) Remove A/C compressor attaching bolts and set
compressor aside.
(10) Remove engine oil dipstick tube.
(11) Remove air conditioning compressor bracket.
(12) Disconnect oxygen sensor electrical connector
and remove sensor.
(13) Remove heat shield attaching bolts and
remove heat shield (Fig. 57).
(14) Remove exhaust manifold attaching bolts (Fig.
57).
(15) Remove exhaust manifold (Fig. 57).
INSTALLATION
(1) Install exhaust manifold. Tighten bolts starting
at the center working outward to 23 N·m (200 in.
lbs.) (Fig. 57).
(2) Install heat shields and tighten attaching bolts
to 12 N·m (105 in. lbs.) (Fig. 57).
(3) Install oxygen sensor to manifold and connect
electrical connector.
(4) Install air conditioning compressor mounting
bracket.
(5) Install engine oil dipstick tube.
(6) Install air conditioning compressor and drive
belt. Refer to COOLING SYSTEM for belt installa-
tion procedure.
(7) Install a new V-Band clamp and tighten to 11
N·m (100 in. lbs.).
(8) Raise vehicle on hoist.
(9) Install exhaust system. Refer to EXHAUST
SYSTEM for procedure.
(10) Install and/or tighten nut attaching converter
pipe support to transaxle mount to 47 N·m (35 ft.
lbs.).
(11) Lower vehicle.
(12) Install air cleaner housing and air inlet tube.
(13) Connect negative cable.
LEFT EXHAUST MANIFOLD
REMOVAL
(1) Disconnect negative cable from remote jumper
terminal.
(2) Raise vehicle on hoist.
(3) Remove exhaust system. Refer to EXHAUST
SYSTEM for procedure.
(4) Loosen converter pipe support attaching bolt at
transaxle mount.
(5) Lower vehicle.
(6) Loosen and remove V-Band clamp at exhaust
manifold connector.
NOTE: Do not reuse V-Band clamp.
(7) Remove electrical connector harness bracket.
(8) Disconnect oxygen sensor electrical connector
and remove sensor from manifold.
(9) Remove heat shield attaching bolts and remove
heat shield (Fig. 57).
(10) Remove manifold attaching bolts (Fig. 57).

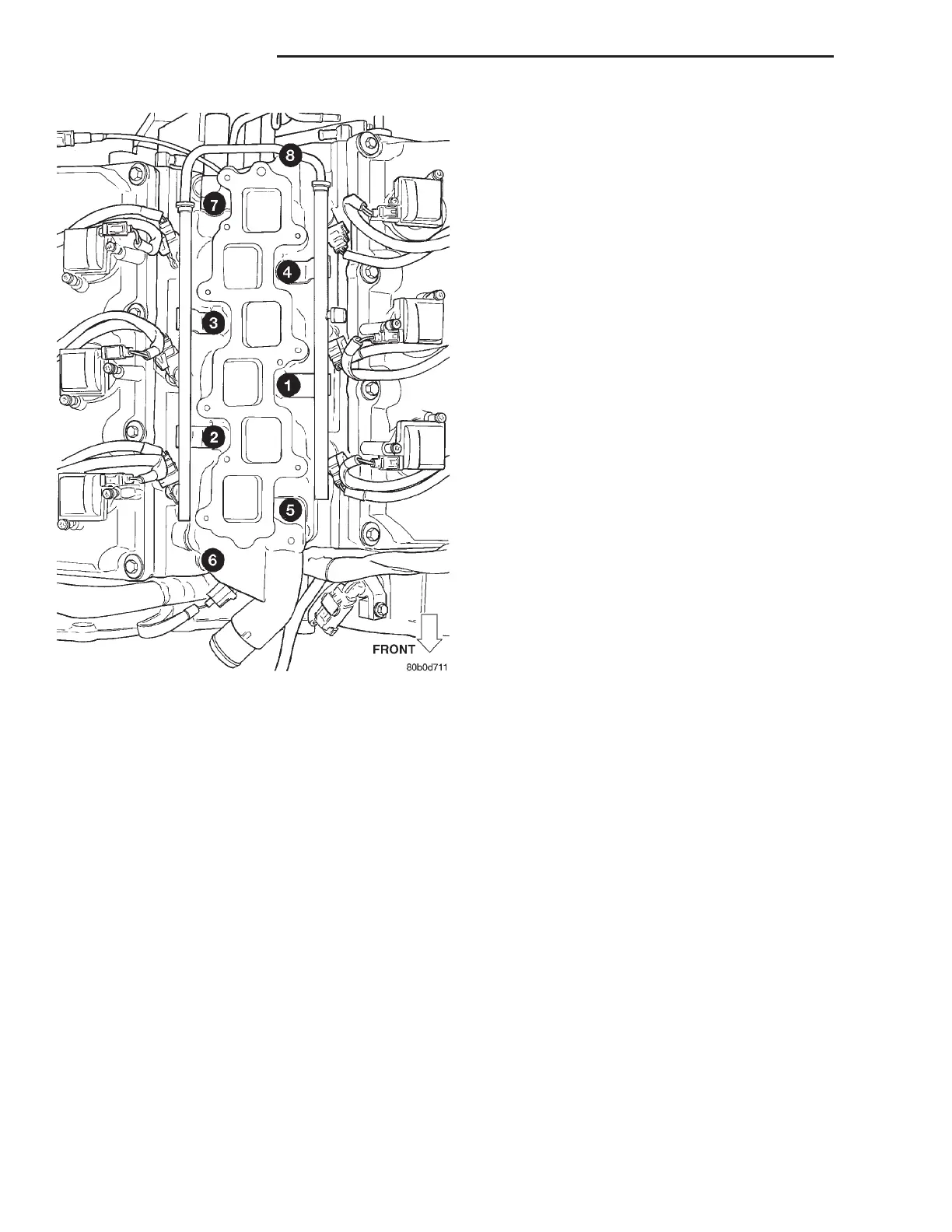

Fig. 56 Lower Intake Manifold Tightening Sequence
9 - 110 3.2/3.5L ENGINE LH
REMOVAL AND INSTALLATION (Continued)
