a. Pinch the latch on the cable connector (1 in Figure 8-65).
b. Carefully plug in the connector.
5. Engage the cable retention clip.
6. Perform “Replacing the Y-axis/Picker Assembly” on page 8-57.
7. Perform “Returning a Library or Library Module to Normal Operations after
Repairs” on page 8-4.
Removing the Y Motor from the Y-axis/Picker Assembly in a
Rack-mounted Library
Tools Required:
v Flashlight
v Small flat blade screwdriver
1. Perform “Preparing a Library or Library Module for Repairs” on page 8-4.
2. Perform one of the following procedures:
v “Removing a 5U Library (Control Module) from a Rack” on page 8-4
v “Removing a Control Module from a Standalone or Rack-mounted Library
(14U or larger)” on page 8-5
3. Remove the Y-axis/Picker Assembly. See “Removing the M2 Robot Assembly
from the Library” on page 8-67.
4. Disengage the cable retention clip.
5. See Figure 8-66 on page 8-65. Remove the large black connector.
a. Pinch the latch (1 in Figure 8-66 on page 8-65) on the cable connector.
b. Carefully lift up on the connector.
a66mi004
1
2
3

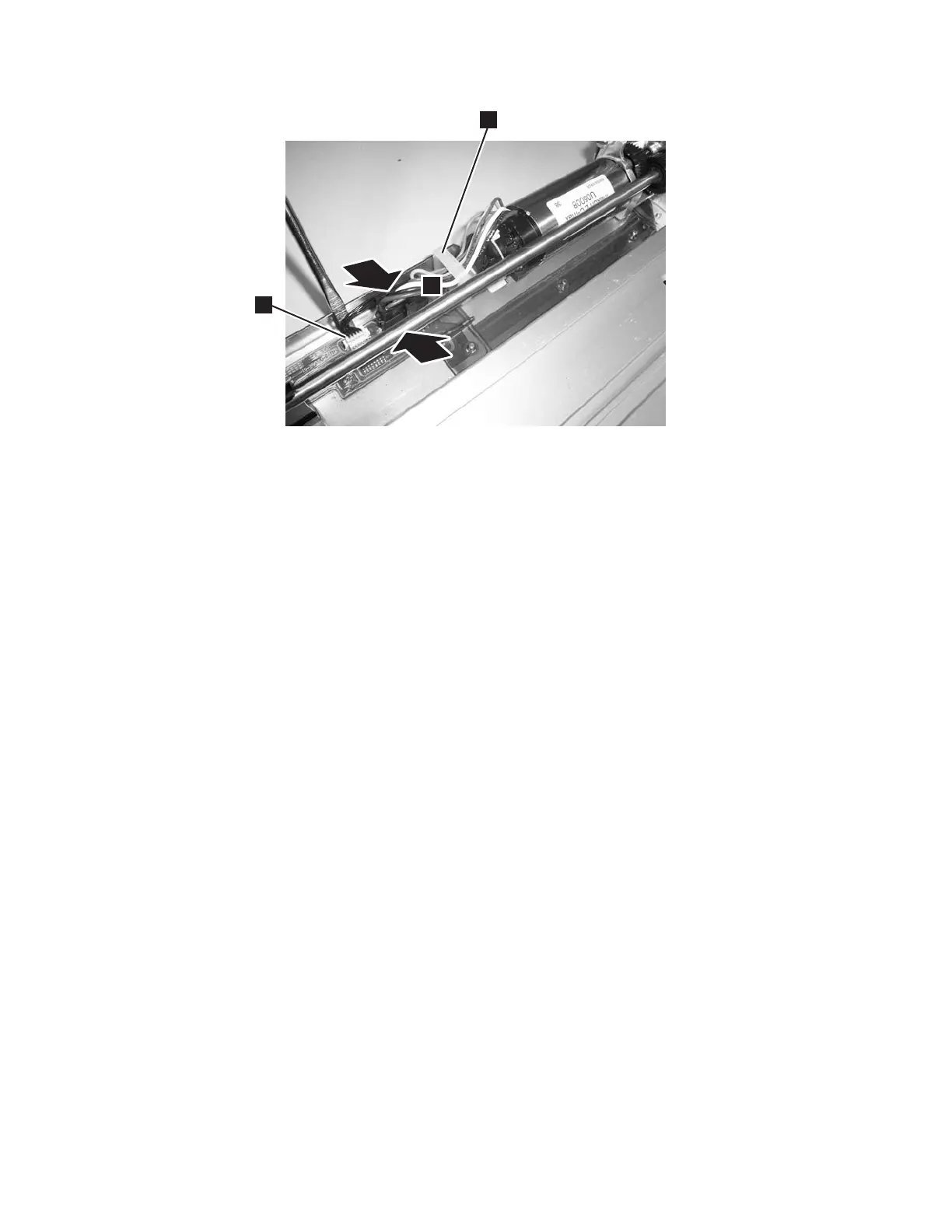

Figure 8-65. Y motor connector
8-64 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
