(5) Install the crankshaft damper using Special
Tools C-4685-C1 Bolt (5.9 in.) and 6792-1. Install cen-
ter bolt, and while holding damper with Special Tool
8191, tighten center bolt to 115 N·m (85 ft. lbs.).
(6) Install the cooling fan module, accessory drive
belts. Refer to COOLING SYSTEM for procedures.
(7) Install upper radiator crossmember. Refer to
BODY for procedure.
(8) Connect negative cable to remote jumper termi-
nal.
TIMING BELT
REMOVAL
CAUTION: The following procedure can only be
used when the camshaft sprockets HAVE NOT
BEEN LOOSENED or removed from the camshafts.
Refer to Camshaft Sprocket and Engine Timing in
this Section, if sprocket(s) or camshaft(s) have
been loosened or removed.

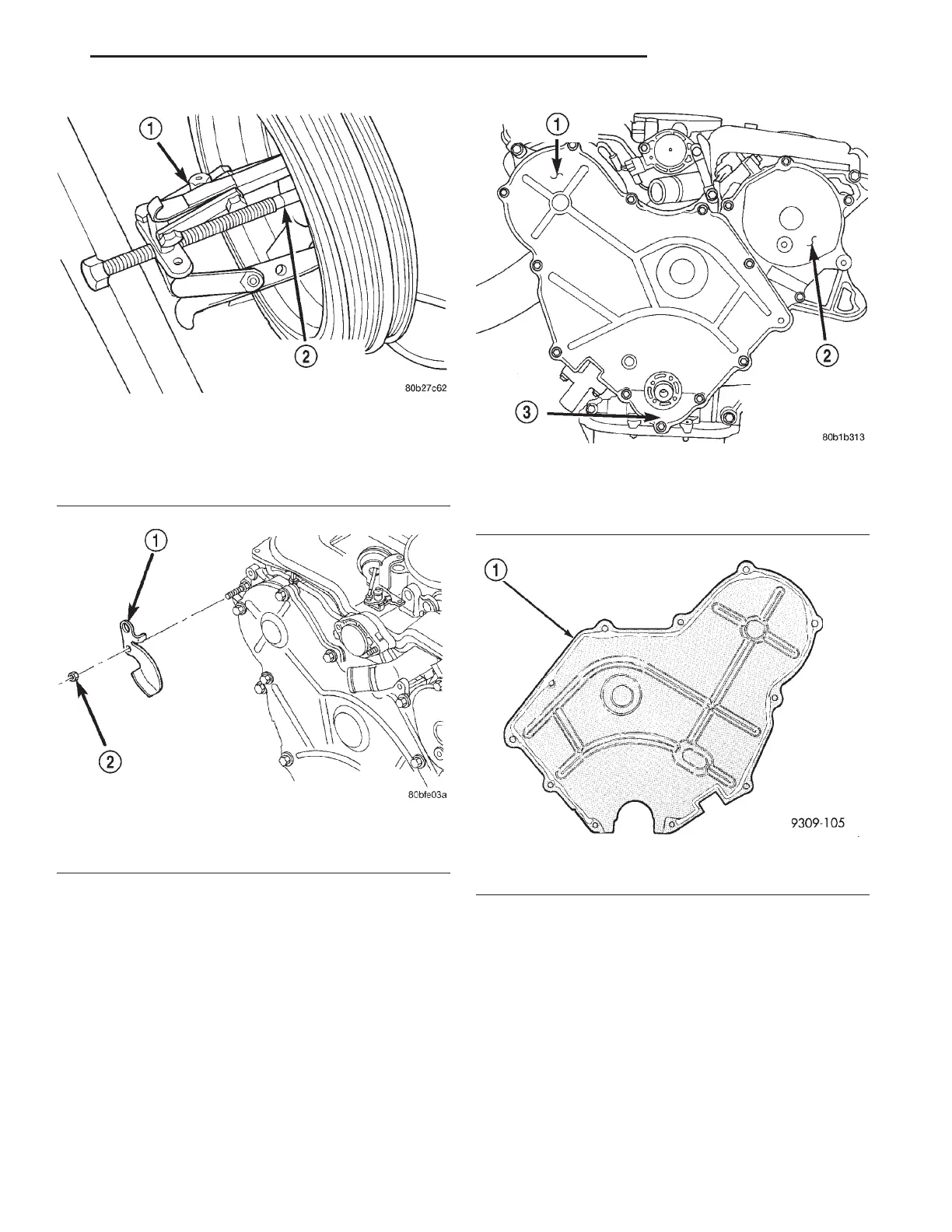

Fig. 90 Crankshaft Damper—Removal
1 – SPECIAL TOOL
1023
2 – SPECIAL TOOL
C-4685–C2
INSERT
Fig. 91 A/C Belt Guide/Lift Bracket
1 – A/C BELT GUIDE/LIFT BRACKET
2 – NUT
Fig. 92 Timing Belt Covers
1 – RIGHT SIDE COVER (STAMPED)
2 – LEFT SIDE COVER (CAST)
3 – LOWER COVER
Fig. 93 Sealer, Timing Belt Cover
1 – SEALER
LH 3.2/3.5L ENGINE 9 - 123
REMOVAL AND INSTALLATION (Continued)
