(5) Lower vehicle and install dipstick and tube.
(6) Fill engine crankcase with proper oil to correct
level.
(7) Connect negative cable.
CAMSHAFT OIL SEAL
REMOVAL
(1) Remove camshaft sprocket(s). Refer to proce-
dure in this section.
(2) Use Special Tool C-3981B to remove camshaft
oil seal (Fig. 101).
INSTALLATION
(1) Apply light coat of engine oil to the camshaft
oil seal lip.
(2) Install the oil seal using Special Tool 6788 Seal
Protector Sleeve (Fig. 102) and Seal Installer 6052
(Fig. 103).
(3) Install camshaft sprocket(s). Refer to procedure
in this section.

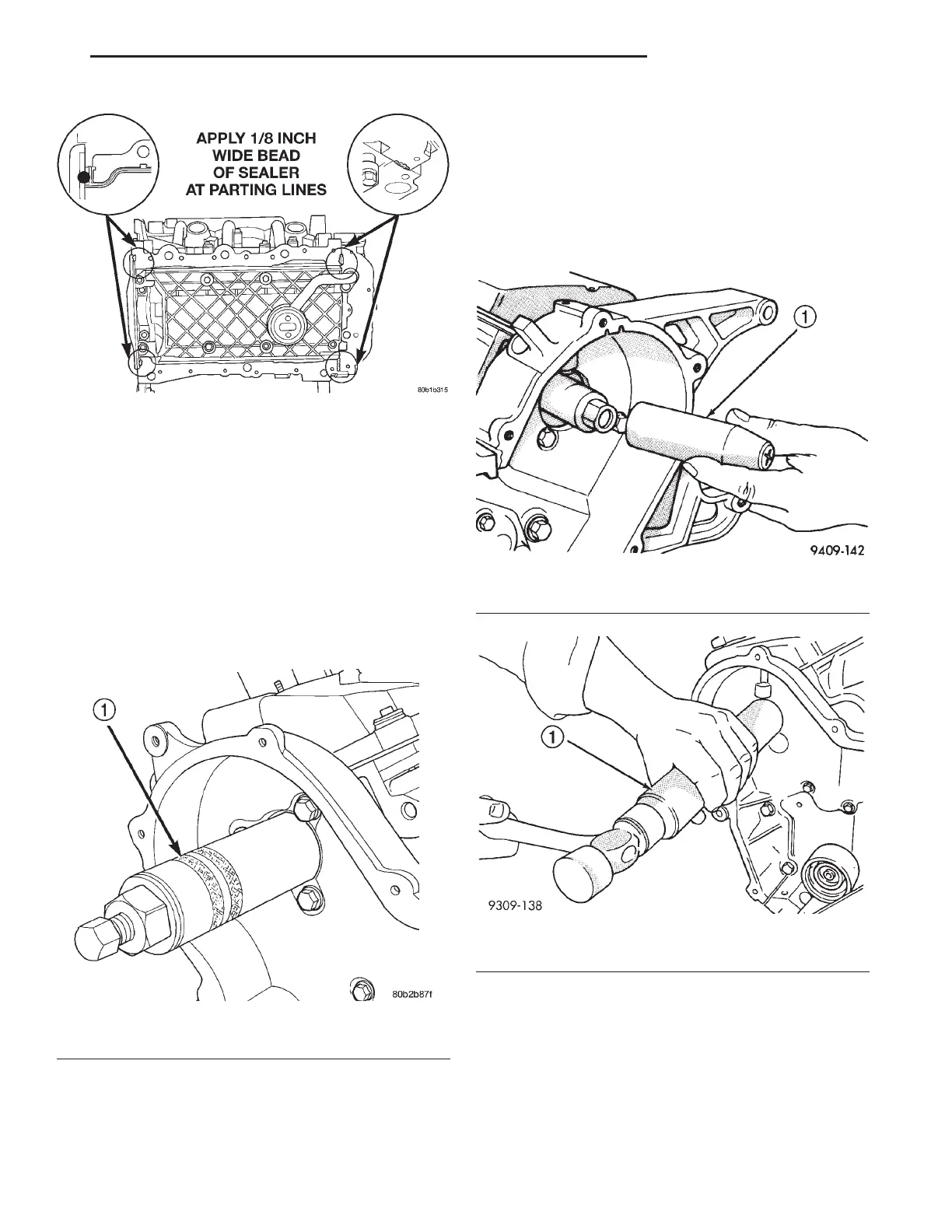

Fig. 100 Oil pan Sealing
Fig. 101 Camshaft Oil Seal—Removal
1 – SPECIAL TOOL C-3981B
Fig. 102 Camshaft Oil Seal Protector Sleeve
1 – SPECIAL TOOL 6788
Fig. 103 Camshaft Oil Seal—Installation
1 – SPECIAL TOOL 6052
LH 3.2/3.5L ENGINE 9 - 127
REMOVAL AND INSTALLATION (Continued)
