attaching nuts. Install the caps on the wiper arms
covering the pivot nuts.
(21) Install the battery ground cable onto the
ground stud on the shock tower.
CAUTION: Do not use automatic transmission fluid.
Use only the proper Mopar Power Steering Fluid or
equivalent when filling the power steering fluid res-
ervoir.
(22) Perform Power Steering Pump Initial Opera-
tion procedure which can be found in the Power
Steering Pump section of this group to properly refill
and bleed power steering system.
(23) Lower vehicle.
(24) Adjust front toe if necessary. Refer to Suspen-
sion, Group 2, for the required procedure.
POWER STEERING FLUID COOLER
REMOVAL
(1) Using a siphon pump, remove as much power
steering fluid as possible from the power steering
fluid reservoir.
(2) Raise vehicle using a frame contact type hoist
or supported as required using jack stands. See
Hoisting in the Lubrication And Maintenance group
of this service manual for the required hoisting or
jacking procedure to be used for this vehicle.
(3) 300M only - The front fascia will require
removal to access the power steering cooler. See
Frames and Bumpers, Group 13, in this service man-
ual for required procedure.
(4) Remove the hose clamp from the lower hose at
the power steering fluid cooler (Fig. 28). Remove the
lower hose from the power steering fluid cooler.
Drain remaining power steering fluid from the hoses
and the power steering fluid cooler.
(5) Remove the hose clamp and upper hose (Fig.
29) from the power steering fluid cooler.
(6) Remove the 6 clips (Fig. 30) mounting the air
dam to the radiator lower support.
(7) Remove the 2 nuts (Fig. 31) attaching the
power steering fluid cooler to the radiator lower
crossmember.

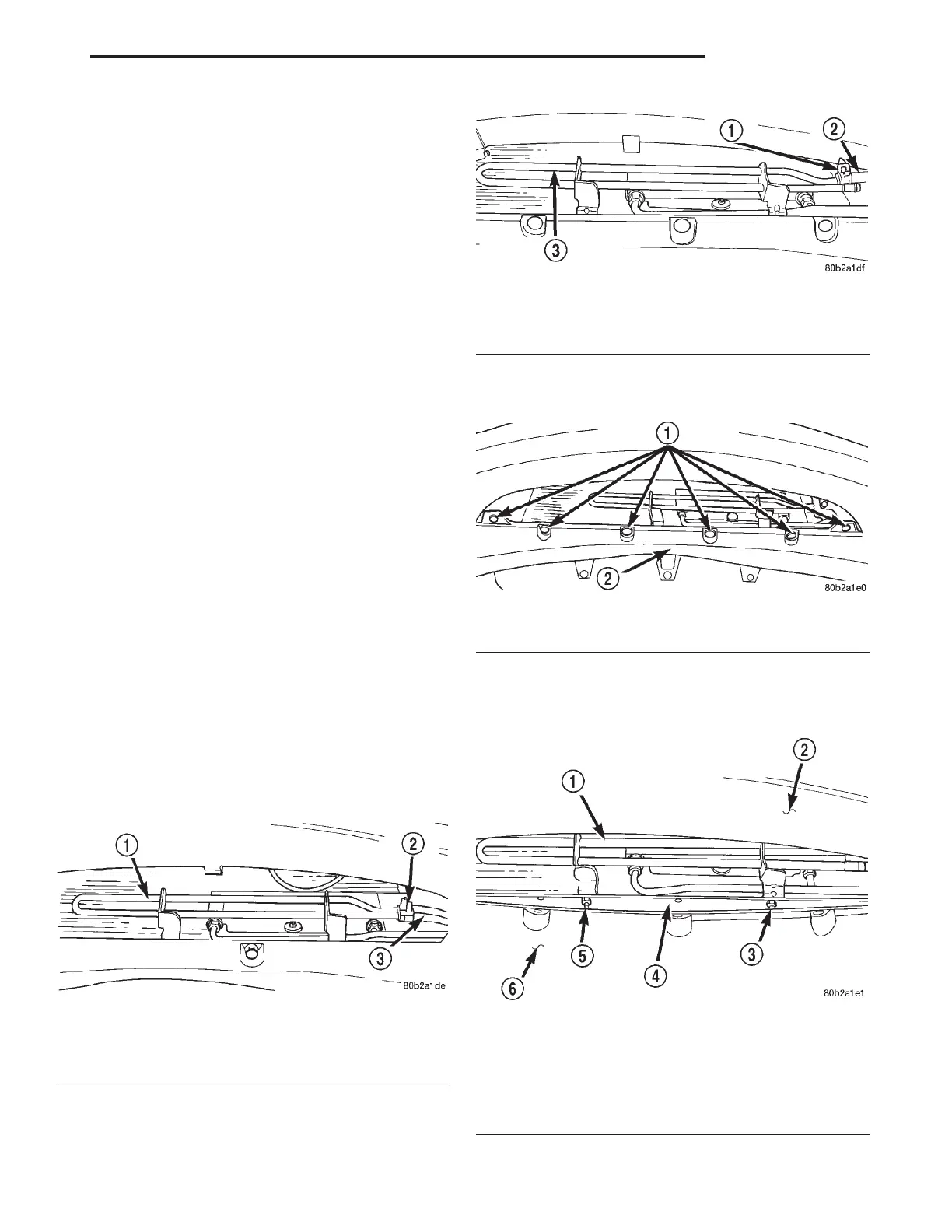

Fig. 28 Lower Hose At Power Steering Fluid Cooler
1 – POWER STEERING FLUID COOLER
2 – HOSE CLAMP
3 – LOWER HOSE
Fig. 29 Upper Hose At Power Steering Fluid Cooler
1 – HOSE CLAMP
2 – UPPER HOSE
3 – POWER STEERING FLUID COOLER
Fig. 30 Air Dam Retaining Clips
1 – RETAINING CLIPS
2 – AIR DAM
Fig. 31 Power Steering Fluid Cooler Attachment
1 – POWER STEERING FLUID COOLER
2 – FASCIA
3 – NUT
4 – RADIATOR LOWER SUPPORT
5 – NUT
6 – AIR DAM
LH STEERING 19 - 17
REMOVAL AND INSTALLATION (Continued)
