(2) Remove seat from vehicle. Refer to the proce-
dure in this group.
(3) Remove screws attaching seat cushion side
shield to the bottom and side of seat cushion (Fig. 4)
and (Fig. 5).
(4) Remove shield from seat
(5) Disconnect switch wire connectors, if equipped.
(6) Remove seat switches, if equipped.
INSTALLATION
(1) Transfer seat switches, if equipped.
(2) Connect switch wire connectors to cushion side
shield, if equipped.
(3) Place shield in position on seat cushion.
(4) Install screws attaching seat cushion side
shield. Tighten screws in sequence refer to (Fig. 4).
(5) Install seat. Tighten front screws to 61 N·m (45
ft. lbs.) and the rear screws to 61 N·m (45 ft. lbs.).
(1) Connect the remote negative battery cable.
(2) Using the DRB III Scan Tool erase all DTC’s
and perform airbag system diagnostics.
FRONT SEAT BACK PANEL - AIRBAG
EQUIPPED
REMOVAL
WARNING: DISCONNECT AND ISOLATE THE NEG-
ATIVE BATTERY CABLE REMOTE TERMINAL
BEFORE BEGINNING ANY FRONT SEAT REMOVAL
OR INSTALLATION PROCEDURE. THIS WILL DIS-
ABLE THE AIRBAG SYSTEM. FAILURE TO DISCON-
NECT THE BATTERY COULD RESULT IN
ACCIDENTAL AIRBAG DEPLOYMENT AND POSSI-
BLE PERSONAL INJURY.
WARNING: ONCE THE NEGATIVE CABLE IS DIS-
CONNECTED WAIT FOR 2 MINUTES BEFORE
REMOVING ANY AIRBAG SYSTEM COMPONENTS.
(1) Disconnect and isolate the remote negative bat-
tery cable.
(2) Using a flat bladed trim tool, insert between
upper portion of seat back cover and seat back panel.
Gently pry panel away from seat back to free push
pins (Fig. 7).
(3) Grasp the middle edge portion of back panel
and push inboard while pulling sharply to release
retaining tabs (Fig. 7).

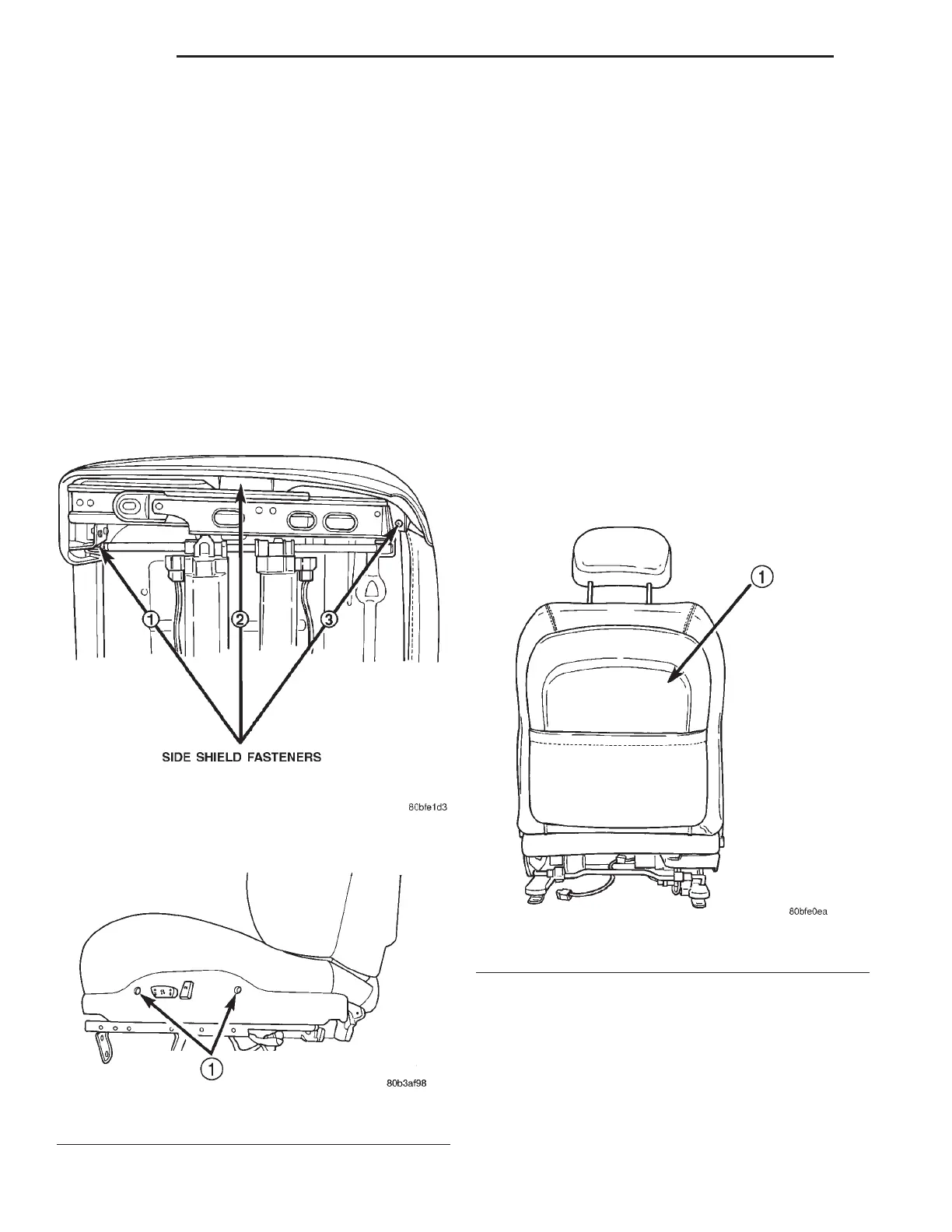

Fig. 4 Bottom View of Side Shield and Tightening
Sequence
Fig. 5 Side View of Side Shield
1 – SIDESHIELD FASTENERS
Fig. 6 Front Seat Back Panel
1 – FRONT SEAT BACK PANEL
23 - 4 BODY LH
REMOVAL AND INSTALLATION (Continued)
2000 LHS, 300M, CONCORDE AND INTREPID
