(4) Connect airbag wire harness connector and
secure push pin. Be certain connector is securely con-
nected.
(5) Connect heated seat element connector and
secure push pin.
(6) Install seat cushion side shields. Refer to the
procedure in this group.
(7) Install seat in vehicle. Refer to the procedure
in this group.
(8) Connect the negative battery cable.
(9) Using the DRB III Scan Tool erase all DTC’s
and perform airbag system diagnostics.
FRONT SEAT HEAD RESTRAINT - AIRBAG
EQUIPPED
REMOVAL
WARNING: DISCONNECT AND ISOLATE THE NEG-
ATIVE BATTERY CABLE REMOTE TERMINAL
BEFORE BEGINNING ANY FRONT SEAT REMOVAL
OR INSTALLATION PROCEDURE. THIS WILL DIS-
ABLE THE AIRBAG SYSTEM. FAILURE TO DISCON-
NECT THE BATTERY COULD RESULT IN
ACCIDENTAL AIRBAG DEPLOYMENT AND POSSI-
BLE PERSONAL INJURY.
WARNING: ONCE THE NEGATIVE CABLE IS DIS-
CONNECTED WAIT FOR 2 MINUTES BEFORE
REMOVING ANY AIRBAG SYSTEM COMPONENTS.
(1) Disconnect the remote negative battery cable.
(2) If fully extended, lower head restraint slightly.
(3) Insert a stiff wire into the hole on the right
hand side head restraint sleeve/guide and push to
release latch (Fig. 13).
(4) At the same time, press the button on the head
restraint sleeve/guide and pull upward to release the
head restraint.
(5) Remove head restraint from seat back.
INSTALLATION
(1) Place head restraint in position.
(2) Push head restraint down into the lock posi-
tion.
(3) Raise head restraint to ensure it locks at the
last stop.
(1) Connect the remote negative battery cable.
FRONT SEAT HEAD RESTRAINT GUIDE
SLEEVES - AIRBAG EQUIPPED
REMOVAL
WARNING: DISCONNECT AND ISOLATE THE NEG-
ATIVE BATTERY CABLE REMOTE TERMINAL
BEFORE BEGINNING ANY FRONT SEAT REMOVAL
OR INSTALLATION PROCEDURE. THIS WILL DIS-
ABLE THE AIRBAG SYSTEM. FAILURE TO DISCON-
NECT THE BATTERY COULD RESULT IN
ACCIDENTAL AIRBAG DEPLOYMENT AND POSSI-
BLE PERSONAL INJURY.
WARNING: ONCE THE NEGATIVE CABLE IS DIS-
CONNECTED WAIT FOR 2 MINUTES BEFORE
REMOVING ANY AIRBAG SYSTEM COMPONENTS.
(1) Disconnect the remote negative battery cable.
(2) Remove the head restraint from the seat back.
Refer to the procedure in this group.
(3) Remove the back panel from the seat back.
Refer to the procedure in this group.
(4) Disengage upper J-strap from seat back trim
cover.
(5) Working through the rear of seat back, depress
the two head restraint guide sleeve retaining tabs
and pull guide straight up and out of the seat back.
INSTALLATION
NOTE: The head restraint guide sleeve equipped
with height adjustment button is always installed on
the left side of the seat back.

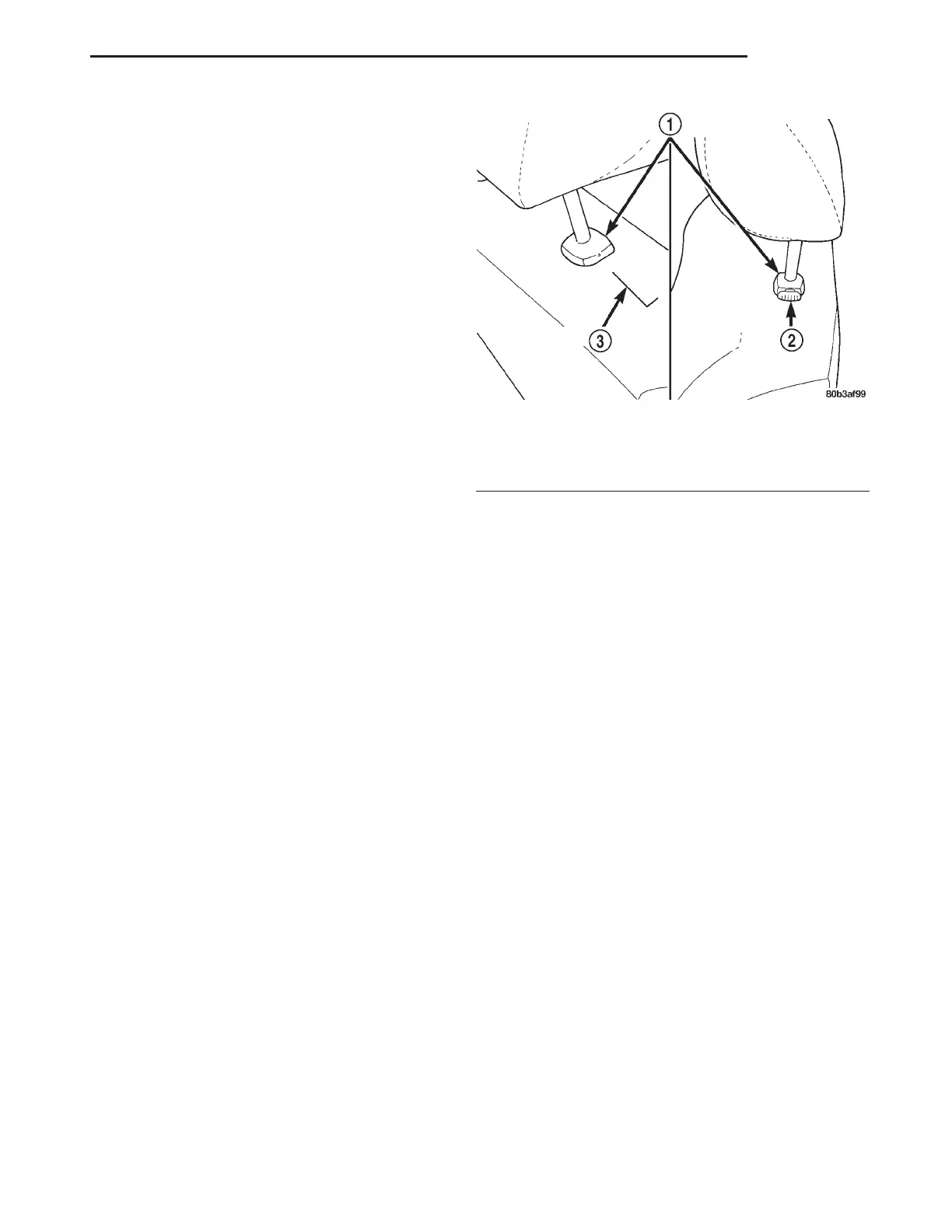

Fig. 13 Head Restraint Removal
1 – SLEEVE GUIDE
2 – BUTTON
3 – STIFF WIRE
LH BODY 23 - 7
REMOVAL AND INSTALLATION (Continued)
2000 LHS, 300M, CONCORDE AND INTREPID
