Tool 6864, on strut shaft nut. Use a deep well socket
inserted into the opening of tool 6864 to keep strut
shaft from turning. Tighten the strut shaft nut to a
torque of 75 N·m (55 ft. lbs.).
(8) Slowly release the tension from the coil spring
by backing off the compressor drive fully. As the ten-
sion is relieved, make sure the upper mount, spring,
and strut align properly.
(9) Remove the clamp from the lower end of the
coil spring and strut. Push back the spring compres-
sor upper and lower hooks, then remove the strut
assembly from the spring compressor.
(10) Install the strut assembly back into the vehi-
cle. Refer to REMOVAL AND INSTALLATION in
this section for the required procedure.
SPECIFICATIONS
REAR SUSPENSION FASTENER TORQUE
SPECIFICATIONS
DESCRIPTION TORQUE
STRUT ASSEMBLY:
Body Mounting Nuts ....... 25N·m(19ft.lbs.)
Spindle Pinch Bolt ......... 53N·m(40ft.lbs.)
Strut Shaft Nut ........... 75N·m(55ft.lbs.)
Stabilizer Bar Link Upper
Attaching Nut ............ 23N·m(17ft.lbs.)
SPINDLE:
Brake Support Plate Mounting Bolts . . . 109 N·m
(80 ft. lbs.)
Brake Hose Bracket Bolt .... 23N·m(17ft.lbs.)
Caliper Adapter Spindle Bolts ........ 115N·m
(85 ft. lbs.)
Disc Brake Caliper Bolts .... 22N·m(16ft.lbs.)
HUB AND BEARING:
Spindle Retaining Nut .... 168N·m(124 ft. lbs.)
Wheel Mounting Nuts ........... 109-150 N·m
(80-110 ft. lbs.)
LATERAL LINKS:
Jam Nuts ................ 88N·m(65ft.lbs.)
Spindle Nut ............ 135N·m(100 ft. lbs.)
Suspension Crossmember Nuts ........ 95N·m
(70 ft. lbs.)
TRAILING ARM:
Attaching Nuts .......... 100N·m(75ft.lbs.)
Bracket To Body Bolts ...... 60N·m(45ft.lbs.)
Bracket To Spindle Bolts . . . 110 N·m (80 ft. lbs.)
REAR SUSPENSION CROSSMEMBER:
Body Attaching Bolts ...... 100N·m(75ft.lbs.)
STABILIZER BAR:
Bushing Retainer Bolts ..... 40N·m(30ft.lbs.)
Strut Attaching Link Lower Nut ....... 95N·m
(70 ft. lbs.)
SPECIAL TOOLS
REAR SUSPENSION

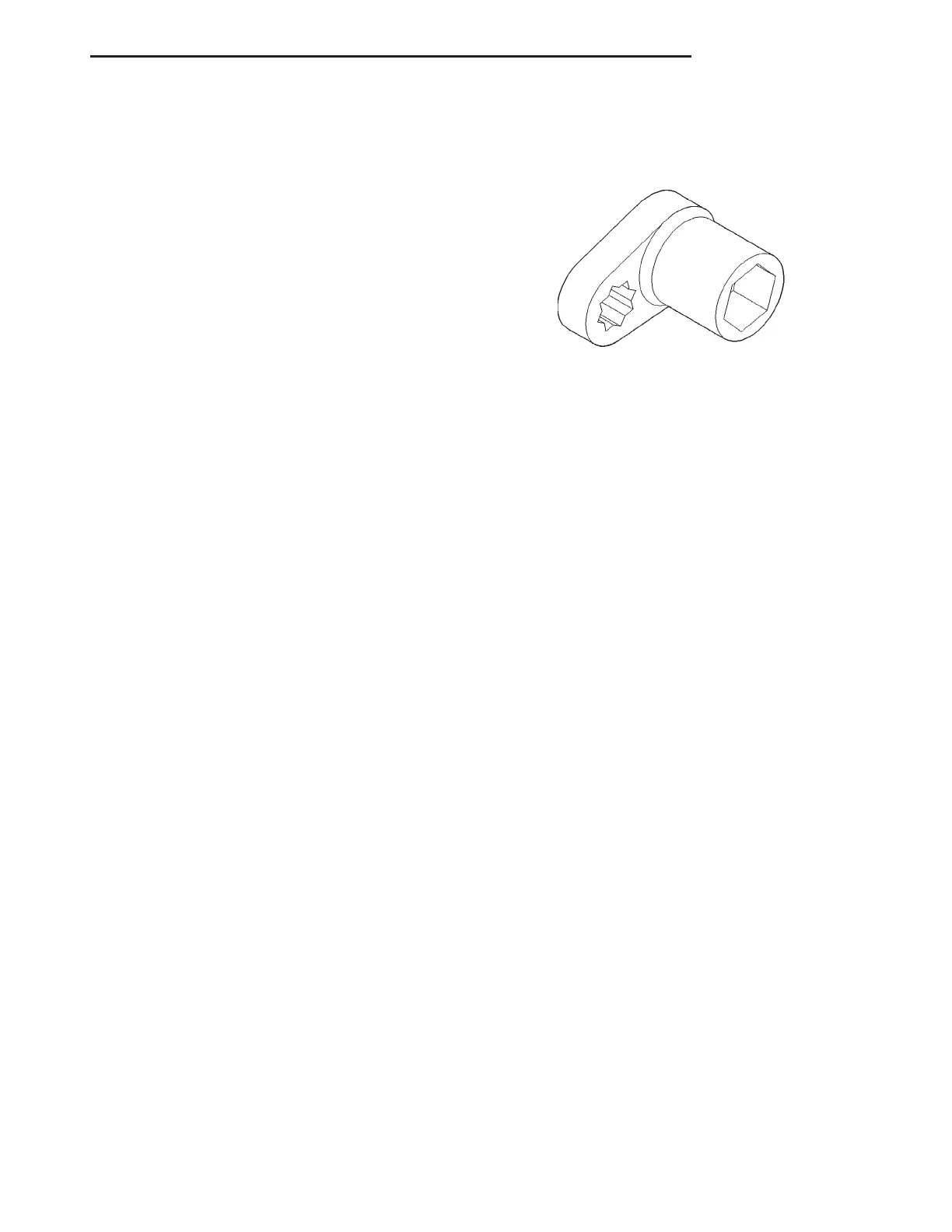

Socket Strut Shaft Nut 6864
LH SUSPENSION 2 - 63
