ENGINE ASSEMBLY
REMOVAL
(1) Disconnect negative cable at right strut tower
(Fig. 42).
(2) Mark hood position at hinges and remove hood.
(3) Remove both wiper arms.
(4) Remove both cowl covers (Fig. 43).
(5) Remove cowl support (Fig. 44).
(6) Remove air cleaner assembly with air inlet
hose (Fig. 45).
(7) Remove upper radiator crossmember. Refer to
BODY for procedure.
(8) Disconnect hood release cable from hood latch.
(9) Drain cooling system. Refer to COOLING SYS-
TEM for procedure.
(10) Remove cooling fan module and accessory
drive belts. Refer to COOLING SYSTEM for proce-
dures.
(11) Disconnect upper radiator hose at engine.
(12) Disconnect lower radiator hose at radiator.
(13) Disconnect engine oil and transmission cooler
lines at radiator.
(14) Remove power steering line bracket at left
side of radiator.
(15) Remove fasteners attaching air conditioning
condenser to radiator.
(16) Remove radiator.
(17) Remove generator.
(18) Remove power steering pump mounting bolts
and set pump aside.
(19) Remove air conditioning compressor mounting
bolts and set aside.
(20) Loosen and remove V-Band clamp at right
exhaust manifold.
(21) Remove front and rear support bracket fasten-
ers attaching right side catalytic converter down
pipe.
(22) Release fuel pressure. Refer to FUEL SYS-
TEM for procedure.
(23) Disconnect fuel line.
(24) Disconnect throttle and speed control cables
from bracket.

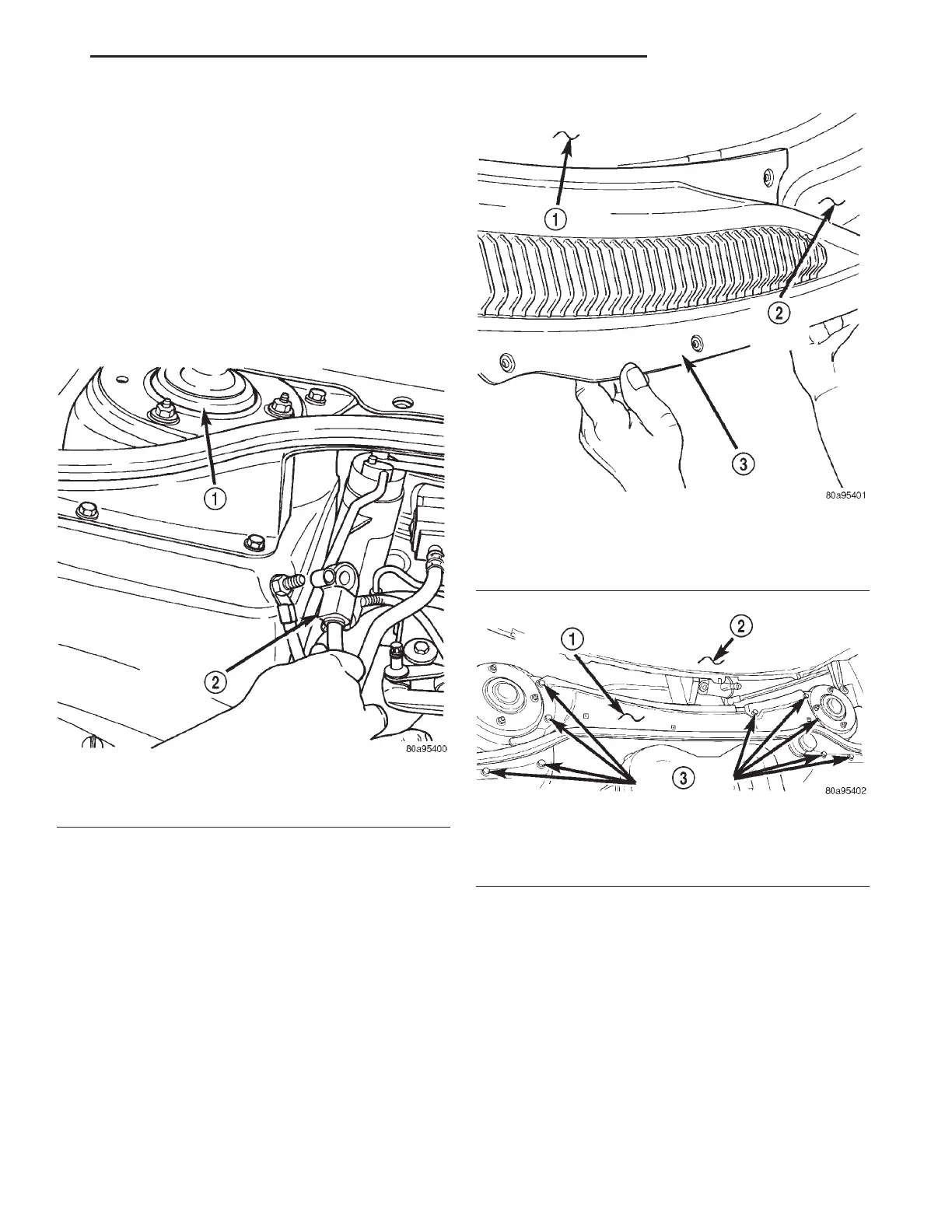

Fig. 42 Negative Cable—Disconnect
1 – RIGHT STRUT TOWER
2 – BATTERY NEGATIVE CABLE
Fig. 43 Cowl Covers
1 – WINDSHIELD
2 – LEFT COWL COVER
3 – RIGHT COWL COVER
Fig. 44 Cowl Support
1 – COWL SUPPORT
2 – WINDSHIELD
3 – SUPPORT FASTENERS
LH 3.2/3.5L ENGINE 9 - 103
REMOVAL AND INSTALLATION (Continued)
