INSTALLATION
CAUTION: The collar must be tighten using this
service procedure, as damage to collar and/or oil
pan may occur.
(1) Install structural collar (Fig. 41) using the fol-
lowing tightening sequence:
a. Install the vertical collar to oil pan bolts.
Torque bolts initially to 1.1 N·m (10 in. lbs.).
b. Install the horizontal collar to transmission
bolts and torque to 55 N·m (40 ft. lbs.).
c. Starting with the center vertical bolts and work-
ing outward, final torque bolts to 55 N·m (40 ft. lbs.).
(2) Lower vehicle.

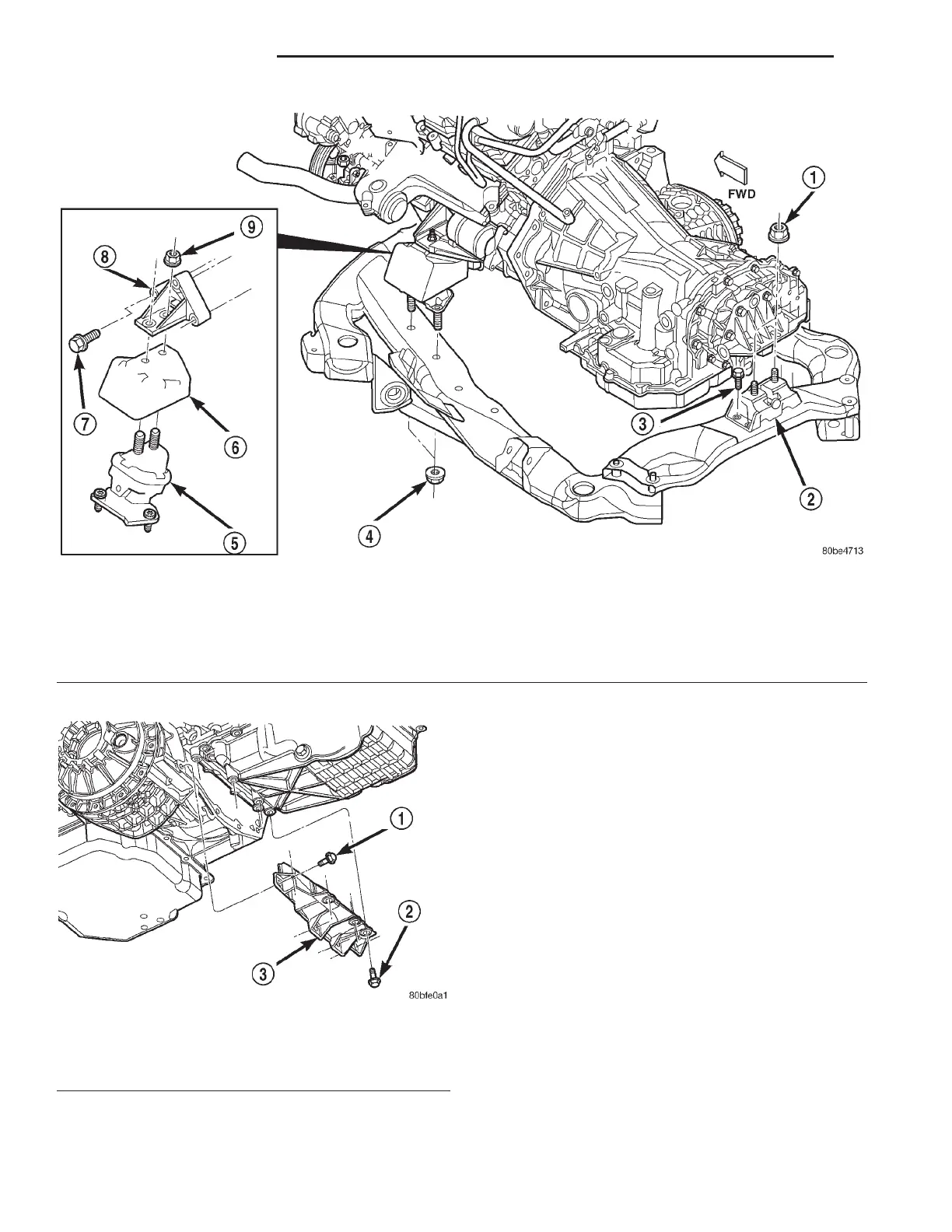

Fig. 40 Engine Mounting—Right, Left, and Rear
1 – NUT
2 – REAR ISOLATOR
3 – BOLT
4 – NUT
5 – ISOLATOR
6 – HEAT SHIELD
7 – BOLT
8 – ENGINE MOUNT BRACKET
9 – NUT
Fig. 41 Structural Collar
1 – BOLT-HORIZONTAL
2 – BOLT-VERTICAL
3 – STRUCTURAL COLLAR
9 - 102 3.2/3.5L ENGINE LH
