(25) Connect throttle and speed control cables to
bracket and throttle arm.
(26) Connect fuel line.
(27) Install new V-Band clamp at right exhaust
manifold. Tighten V-Band clamp to 11 N·m (100 in.
lbs.).
(28) Install and tighten right side catalytic con-
verter down pipe support bracket fastener at tran-
saxle mount.
(29) Install air conditioning compressor and
tighten fasteners to 28 N·m (250 in. lbs.).
(30) Install power steering pump and tighten fas-
teners to 28 N·m (250 in. lbs.).
(31) Install generator.
(32) Install radiator.
(33) Attach air conditioning condenser to radiator.
(34) Install power steering line bracket to radiator.
(35) Connect engine oil and transmission cooler
lines to radiator.
(36) Install lower radiator hose.
(37) Install upper radiator hose.
(38) Install accessory drive belts and cooling fan
module. Refer to COOLING SYSTEM for procedures.
(39) Fill cooling system. Refer to COOLING SYS-
TEM for procedure.
(40) Fill engine with proper amount of oil.
(41) Connect hood release cable to hood latch and
install upper radiator crossmember.
(42) Install air cleaner and air inlet hose.
(43) Install cowl support.
(44) Install both cowl covers.
(45) Install both wiper arms.
(46) Install hood.
(47) Connect negative cable.
CRANKSHAFT DAMPER
REMOVAL
(1) Disconnect negative cable at right strut tower.
(2) Remove upper radiator crossmember. Refer to
BODY for procedure.
(3) Remove fan module. Refer to COOLING SYS-
TEM for procedure.
(4) Remove the accessory drive belts. Refer to
COOLING SYSTEM for procedure.
(5) Use Special Tool 8191 to hold crankshaft
damper while removing center bolt (Fig. 46).
(6) Use Special Tool 1023 puller, and insert
C-4685-C2, remove crankshaft damper (Fig. 47).
INSTALLATION
(1) Install crankshaft damper using Special Tools
C-4685-C1 (5.9 in.) Bolt, with Nut and Thrust Bear-
ing from 6792, and 6792-1 Installer (Fig. 48). Install
center bolt and tighten to 115 N·m (85 ft. lbs.) (Fig.
46).
(2) Install accessory drive belts. Refer to COOL-
ING SYSTEM for procedure.
(3) Install fan module. Refer to COOLING SYS-
TEM for procedure.
(4) Install upper radiator crossmember. Refer to
BODY for procedure.
(5) Connect negative cable.

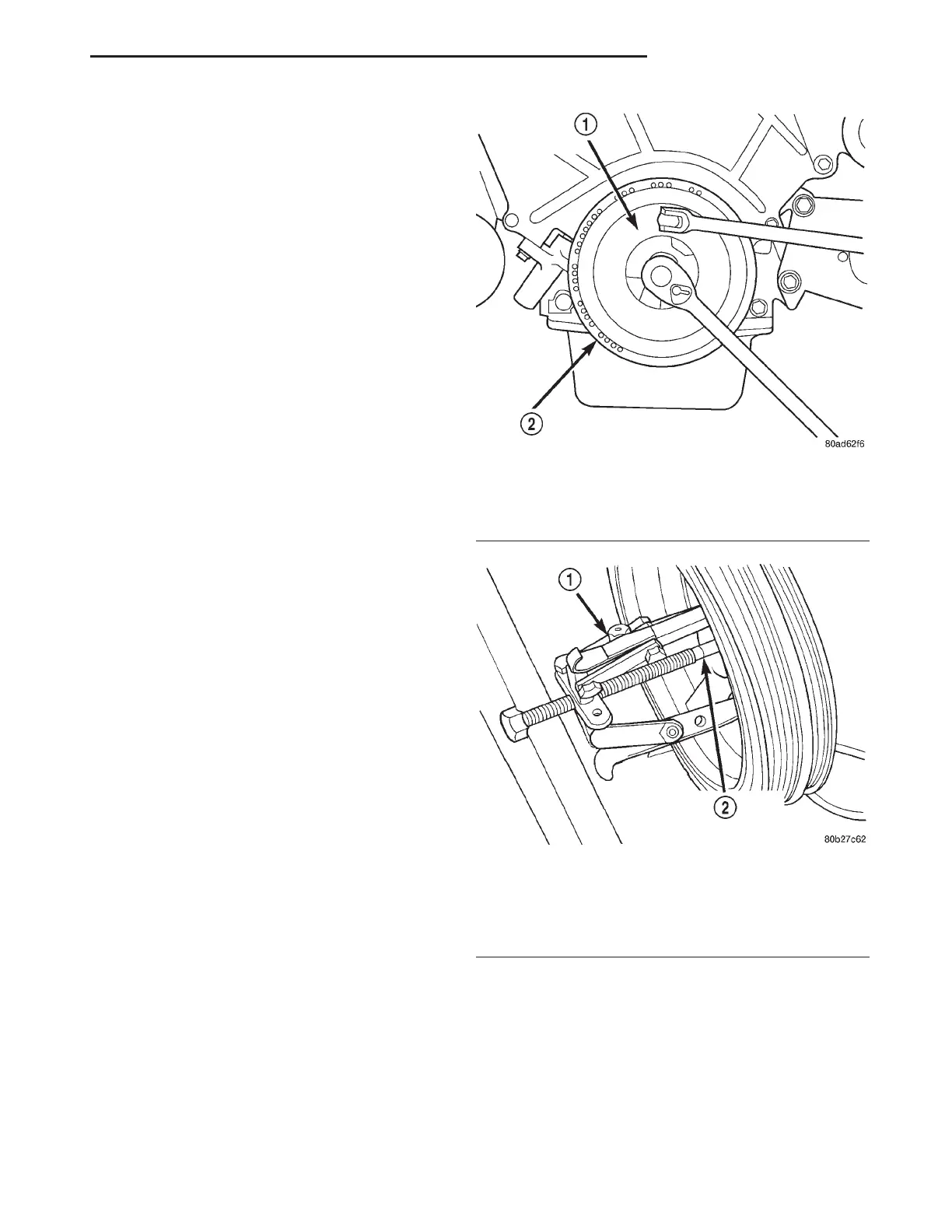

Fig. 46 Crankshaft Damper Center Bolt—Removal
and Installation
1 – SPECIAL TOOL 8191
2 – CRANKSHAFT DAMPER
Fig. 47 Crankshaft Damper—Removal
1 – SPECIAL TOOL
1023
2 – SPECIAL TOOL
C-4685–C2
INSERT
LH 3.2/3.5L ENGINE 9 - 105
REMOVAL AND INSTALLATION (Continued)
