INTAKE MANIFOLD—UPPER
REMOVAL
(1) Disconnect negative cable from remote jumper
terminal.
(2) Remove air cleaner housing and inlet hose (Fig.
49).
(3) Remove throttle and speed control cables from
throttle arm and bracket.
(4) Disconnect electrical connectors from the fol-
lowing sensors and actuators (Refer to FUEL SYS-
TEM for component locations):
• Secondary Runner Valve (SRV)
• Manifold Tuning Valve (MTV)
• Throttle Position Sensor (TPS)
• Idle Air Control (IAC)
• Intake Air Temperature/Manifold Absolute Pres-
sure (TMAP)
• Vacuum Reservoir Solenoid
(5) Disconnect vacuum hoses from the following:
• Secondary Runner Valve (SRV) Reservoir
• Speed Control Reservoir
• Positive Crankcase Ventilation (PCV) Valve
• Proportional Purge Solenoid
• Power Brake Booster
(6) Remove right side (Fig. 50) and left side (Fig.
51) intake manifold supports.
(7) Remove support brackets at intake manifold
front corners and at MTV (Fig. 52).
(8) Loosen upper fastener attaching throttle body
to support bracket.
(9) Remove clips attaching EGR tubes to intake
manifold. Refer to EMISSION CONTROL SYSTEM
for procedure.
(10) Remove bolts attaching intake manifold and
remove manifold.

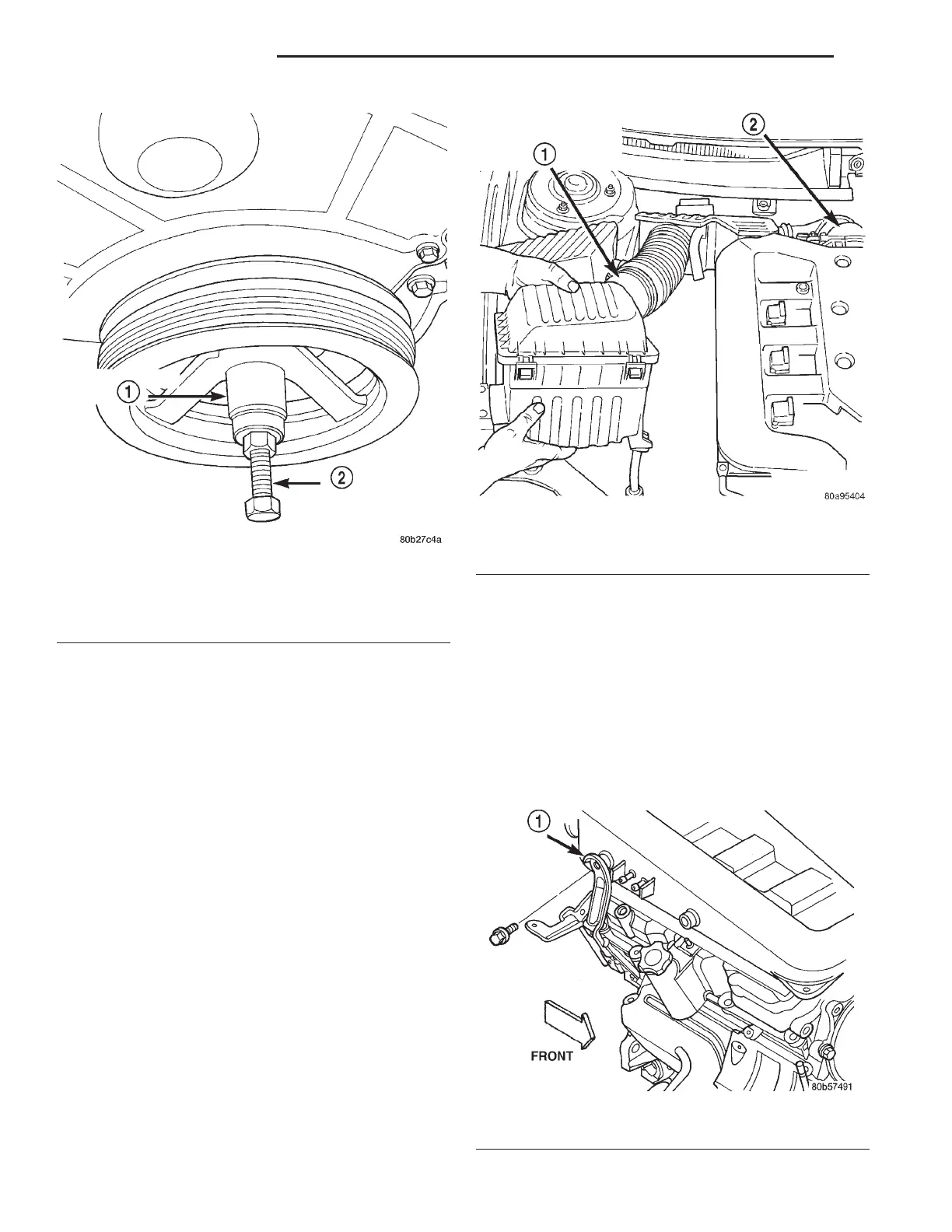

Fig. 48 Crankshaft Damper—Installation
1 – SPECIAL TOOL
6792–1
2 – SPECIAL TOOL
C-4685–C1
Fig. 49 Air Cleaner Housing and Inlet Hose
1 – AIR CLEANER ASSEMBLY WITH AIR INLET HOSE
2 – THROTTLE BODY
Fig. 50 Intake Manifold Support—Right Side
1 – SUPPORT BRACKET
9 - 106 3.2/3.5L ENGINE LH
REMOVAL AND INSTALLATION (Continued)
