(2) Carefully roll cover down to the area that hog
rings are to be installed. Install hog rings.
(3) Roll cover downward, fastening velcro as you
go.
(4) Position seat back foam and cover on frame.
(5) Carefully slide the seat airbag module in nylon
sleeve (Fig. 20) and install retaining nuts (Fig. 21).
Torque the nuts to 7 N·m ( 62 in. lbs.).
CAUTION: Seat Airbag Module Must Be Installed IN
Nylon Sleeve. Failure To Do So Will Adversely
Affect Function Of Airbag System.
(6) Connect seat airbag module electrical connector
(Fig. 20). Be certain yellow locking tab is in the
locked position after connection is made. Upon con-
nection completion, double check connection by trying
to disconnect without releasing yellow lock. If connec-
tor cannot be removed connection is secure.
(7) Connect heating element wire connector.
(8) Install the outboard recliner attaching bolt
(Fig. 22). Torque the bolt to 8 N·m ( 71 in. lbs.).
(9) Engage J- strap retaining clips.
(10) Install the front seat cushion side shield.
Refer to the procedure in this group.
(11) Install the head restraint guide sleeves in the
seat back. Refer to the procedure in this group.
(12) Install the front seat back panel. Refer to the
procedure in this group.
(13) Install the front seat head restraint. Refer to
the procedure in this group.
(14) Install the front seat in the vehicle. Refer to
the procedure in this group.
(15) Connect the negative battery cable.
(16) Using the DRB III Scan Tool erase all DTC’s
and perform airbag system diagnostics.
(17) Check trim cover fit and finish and verify seat
operation.
FRONT SEAT LUMBAR SUPPORT
The front seat lumbar support is not serviced sep-
arately. The front seat back frame will need to be
replaced.

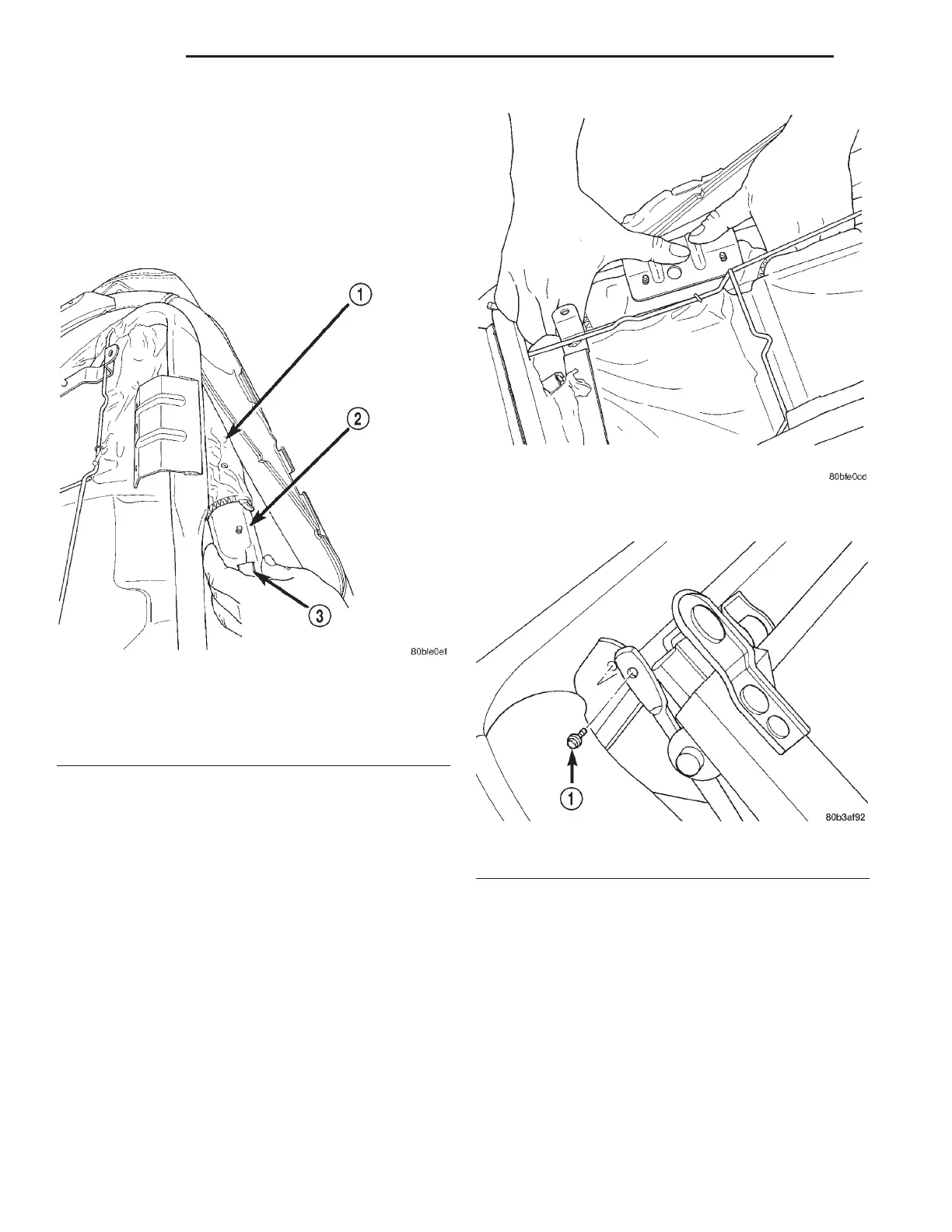

Fig. 20 Installing Seat Airbag Module in Nylon
Sleeve
1 – AIRBAG MODULE NYLON SLEEVE
2 – AIRBAG MODULE
3 – AIRBAG MODULE ELECTRICAL CONNECTOR
Fig. 21 Installing Seat Airbag Module on Seat Back
Frame
Fig. 22 Recliner Attaching Bolt
1 – RECLINER BOLT
23 - 10 BODY LH
REMOVAL AND INSTALLATION (Continued)
2000 LHS, 300M, CONCORDE AND INTREPID
