Configuring ATM Over MPLS Gateway Solution on CBX 3500
Configuring a Layer 2 Tunnel Over MPLS Core Network

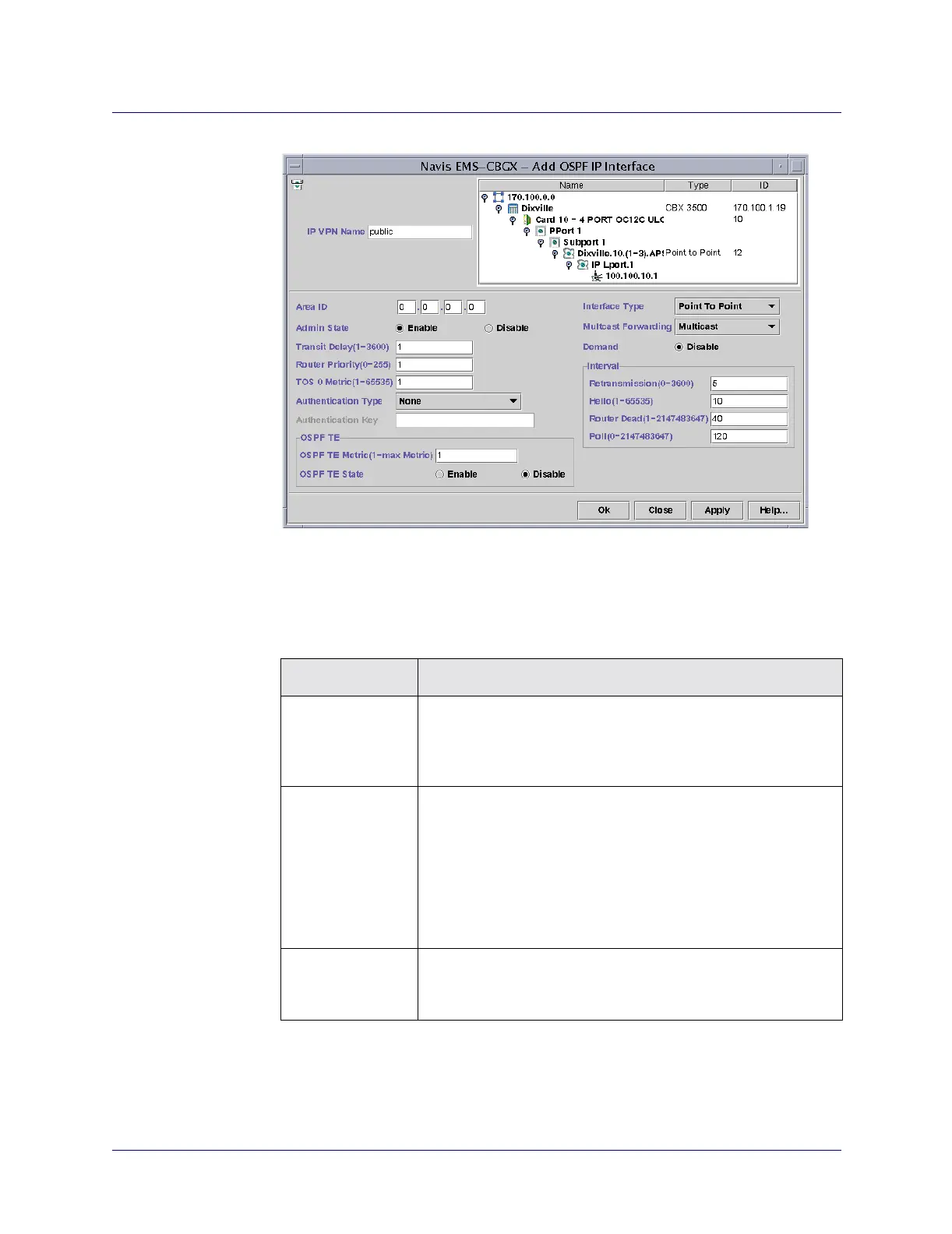

Figure 9-20. Add OSPF IP Interface Dialog Box
5. Complete the fields in the Add OSPF IP Interface dialog box, as described in
Table 9-16.
Table 9-16. Add OSPF IP Interface Fields
Field Action/Description
Area ID Enter the area ID (x.x.x.x) for the area in which you want to
locate this interface. Area 0.0.0.0 is the network backbone area.
Areas are collections of networks, hosts, and routers. The area ID
identifies the area.
Admin State Select one of the following options:
Enable – (default) This parameter allows this interface to
communicate using IP OSPF. In addition, this interface can send
or receive Hello packets.
Disable – This parameter prevents this interface from
communicating using IP OSPF. In addition, this interface cannot
send or receive Hello packets.
Transit Delay
(1-3600)
Enter a value betweeen 1 and 3600 (the default value is 1). This
value is the estimated number of seconds it takes to transmit a
link-state update packet over this interface.
