Beta Draft Confidential
10-801/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM PVCs
Configuring PMP Circuits
4. (Optional - CBX 500 and GX 550) Choose the NDC tab. See the Switch
Diagnostics User’s Guide
for CBX 3500, CBX 500, GX 550, and B-STDX 9000 for
configuration information.
5. (Optional) To configure NavisXtend Accounting Server parameters for this
circuit, select the Accounting tab. For more information, see the NavisXtend
Accounting Server Administrator’s Guide.
6. Choose OK to configure the PMP root and close the Add Point-to-Multipoint
PVC Root dialog box.
After you configure a PMP root, complete the following steps to dedicate it to a VPN:
1. In the switch object tree tab in the Navigation Panel, expand the circuits class
node and double-click on the PMP Roots class node for which you want to choose
a VPN.
2. Select a PMP Root from the list, then right-click on it.
3. From the pop-up menu, choose L2 VPN/Customer Info. The Choose VPN/Policy
dialog box appears (Figure 10-24).

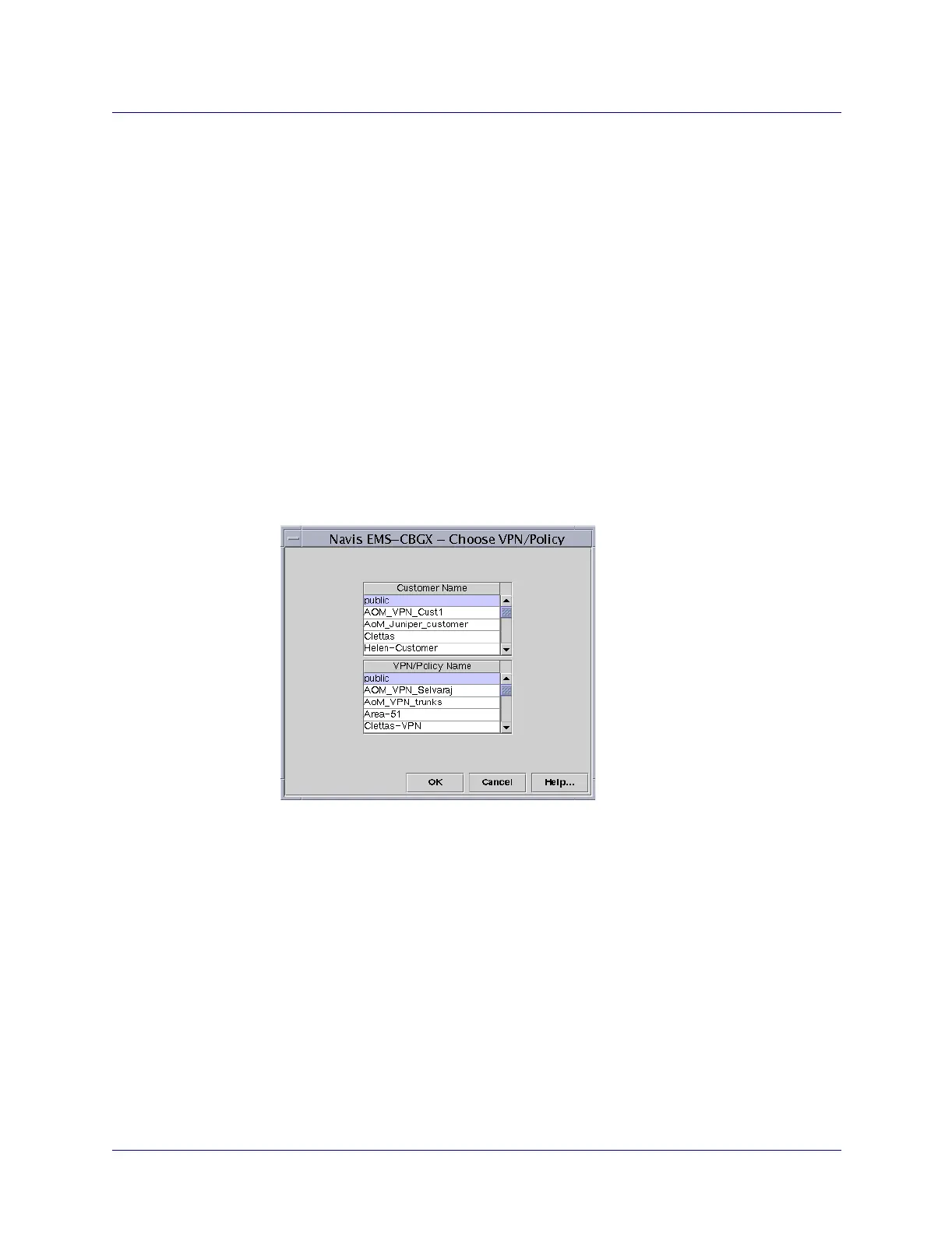

Figure 10-24. Choose VPN/Policy Dialog Box
4. Select a customer name from the Customer Name list.
5. Select a policy name from the VPN/Policy Name list (includes policies for
policy-based circuits as well as the Layer 2 VPNs).
6. Choose OK.
7. Continue with “Defining PMP Circuit Leafs” on page 10-81.
