Beta Draft Confidential
Configuring ATM PVCs
Configuring PMP Circuits
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0510-75
Selecting an Endpoint From a Physical Port
To select an endpoint from a physical port:
1. In the Select Endpoint dialog box, expand the node for the desired switch for the
endpoint (see Figure 10-21).

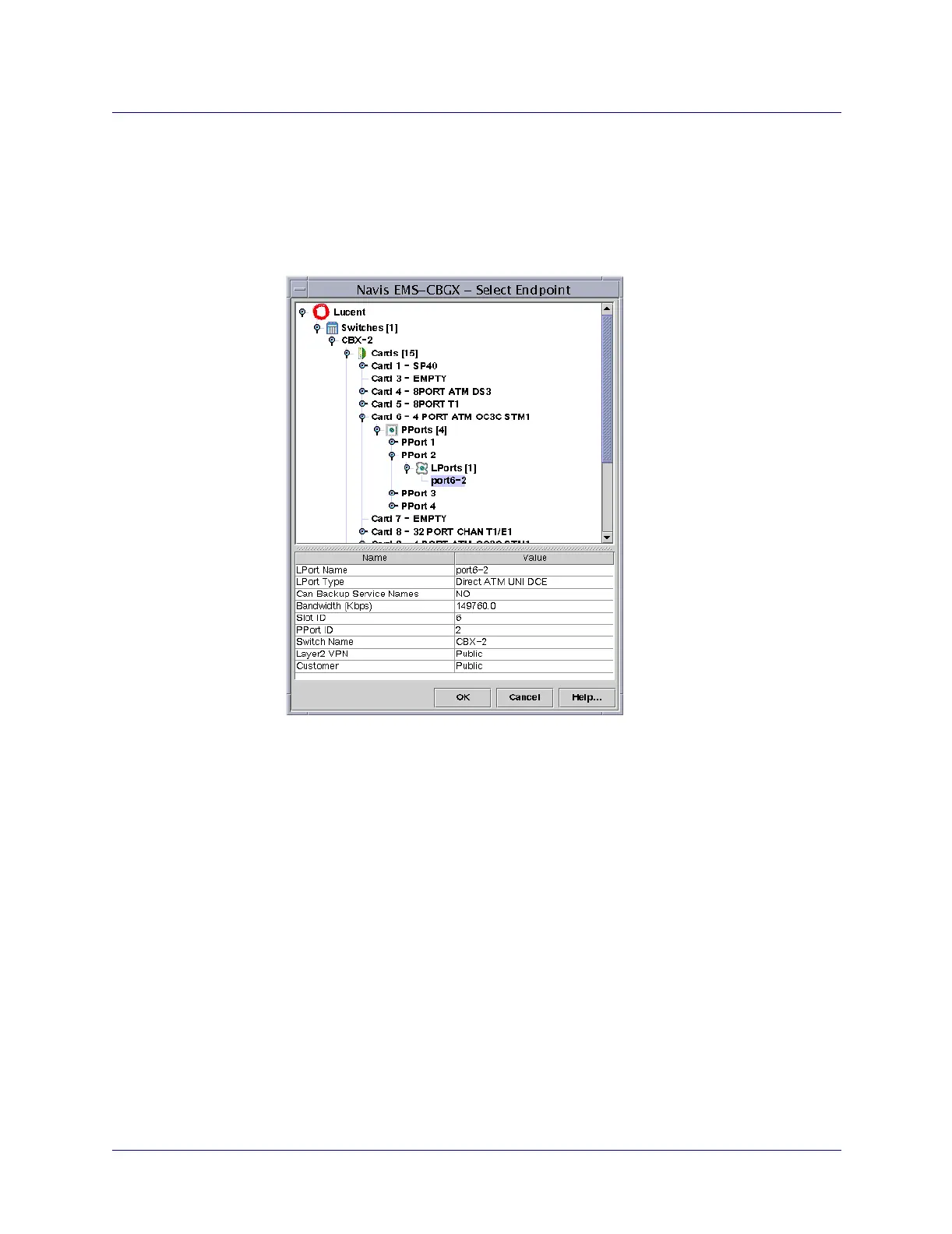

Figure 10-21. Selecting an Endpoint From a Physical Port
2. Expand the Cards class node.
3. Expand the node for the desired card.
4. Expand the PPorts class node.
5. Expand the node for the desired physical port.
6. Expand the LPorts or subports class node.
7. Select the desired LPort.
8. Choose OK and continue with “Configuring PMP PVC Root Parameters” in the
next section.
