Configuring ATM PVCs
About the PVC Tabs
Traffic Type Attributes
Select the Traffic Type tab from the Add PVC dialog box (Figure 10-5) to specify TD
settings for forward and reverse traffic. For more information about using ATM traffic
descriptors, see Chapter 12, “Configuring ATM Traffic Descriptors.”

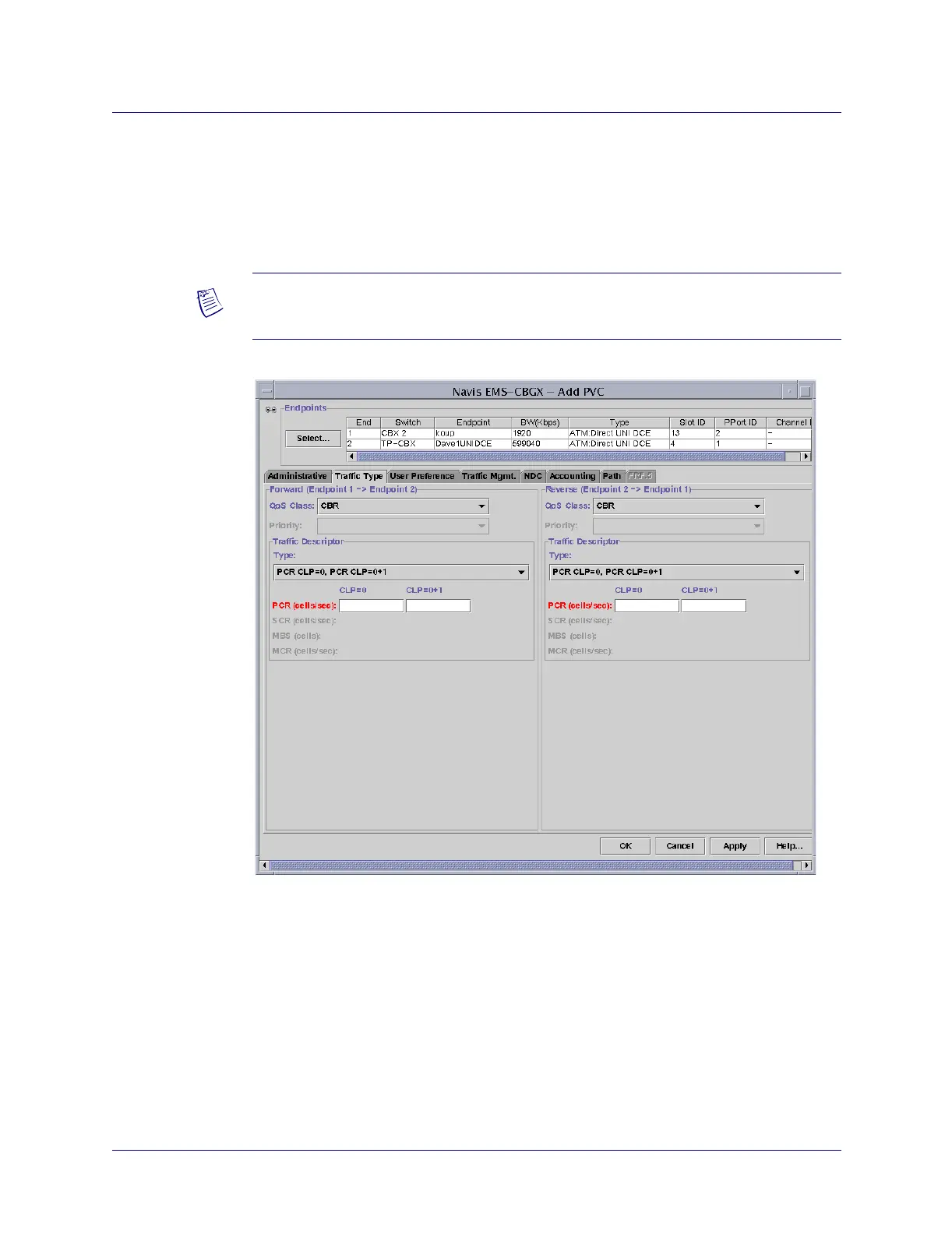

Figure 10-5. Add PVC: Traffic Type Tab
Forward traffic is traffic from Endpoint 1 to Endpoint 2, and reverse traffic is traffic
from Endpoint 2 to Endpoint 1. Complete the Traffic Type tab fields as described in
Table 10-4 to set traffic type attributes in each direction.
Note – If either port is not ATM CE, you must configure Traffic Type attributes before
choosing OK in the Add PVC dialog box to save the circuit configuration.
