9-241/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM Over MPLS Gateway Solution on CBX 3500
Configuring a Layer 2 Tunnel Over MPLS Core Network
To set the QoS Parameters:
1. In the Add Logical Port dialog box, select the QoS tab (Figure 9-11).

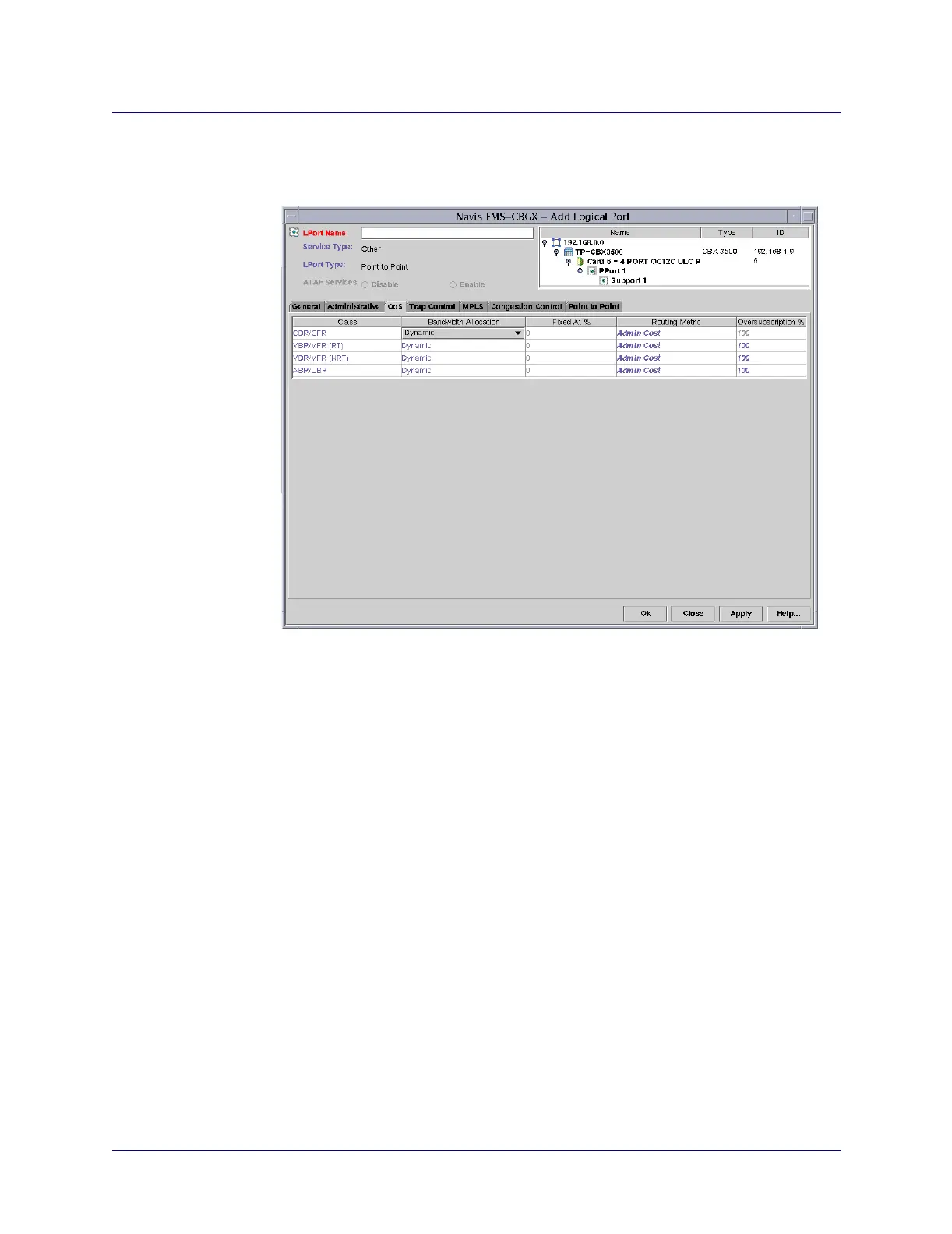

Figure 9-11. Add Logical Port: QoS Tab
2. Complete the required fields described in Table 9-9 for each service class listed in
the Class field.
