Beta Draft Confidential
Configuring CBX or GX Logical Ports
Setting Logical Port Attributes
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/053-41
Traffic Descriptor Attributes
The Traffic Descriptors tab is only available for ATM Direct and OPTimum Trunk
logical port types. The fields in this tab enable you to modify the traffic characteristics
for the configurable control channel. These traffic descriptors (TDs) are used for
bandwidth allocation, not for policing.
From the Add Logical Port dialog box, select the Traffic Descriptors tab
(Figure 3-13and complete the steps that follow.

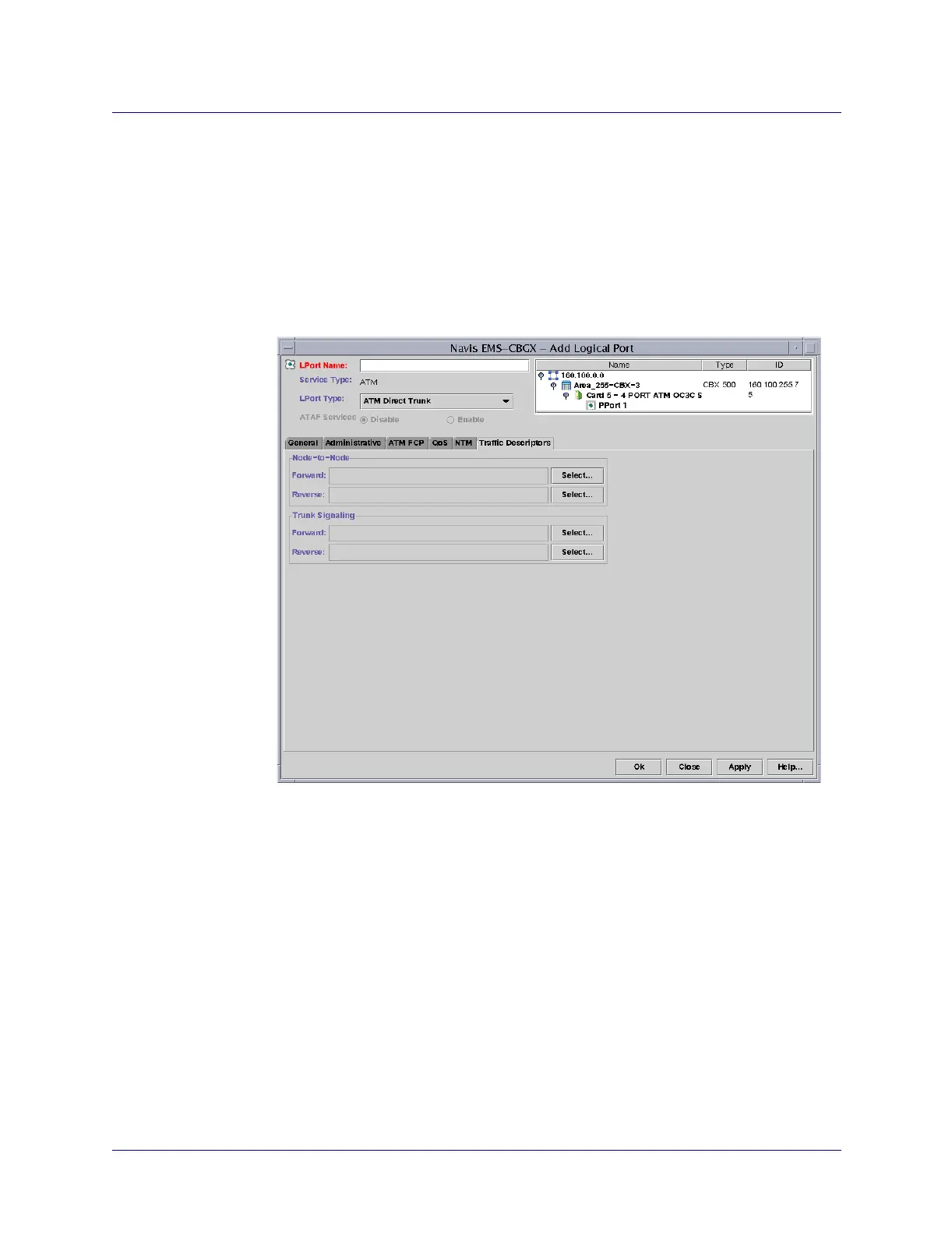

Figure 3-13. Traffic Descriptors Tab
1. To enter the Node-to-Node Forward traffic descriptor, choose Select. The
Node-to-Node Forward Traffic Descriptor dialog box appears (Figure 3-14).
