Beta Draft Confidential
Configuring ATM Traffic Descriptors
Configuring ATM TDs
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0512-11
Defining TD Attributes
To assign a TD to a logical port or SPVC:
1. See one of the following sections to access the Traffic Descriptor dialog box to
select TD attributes:
• For UNI logical ports, see “ILMI/OAM Attributes” on page 3-34.
• For Direct/OPTimum trunk logical ports, see “Traffic Descriptor Attributes”
on page 3-41.
• For SPVCs, see “Traffic Type Attributes” on page 18-15.
• For PNNI routing control channel (RCC), see “Configuring an ATM NNI
Logical Port” on page 21-50.
Figure 12-3 shows an example of defined TDs and fields.

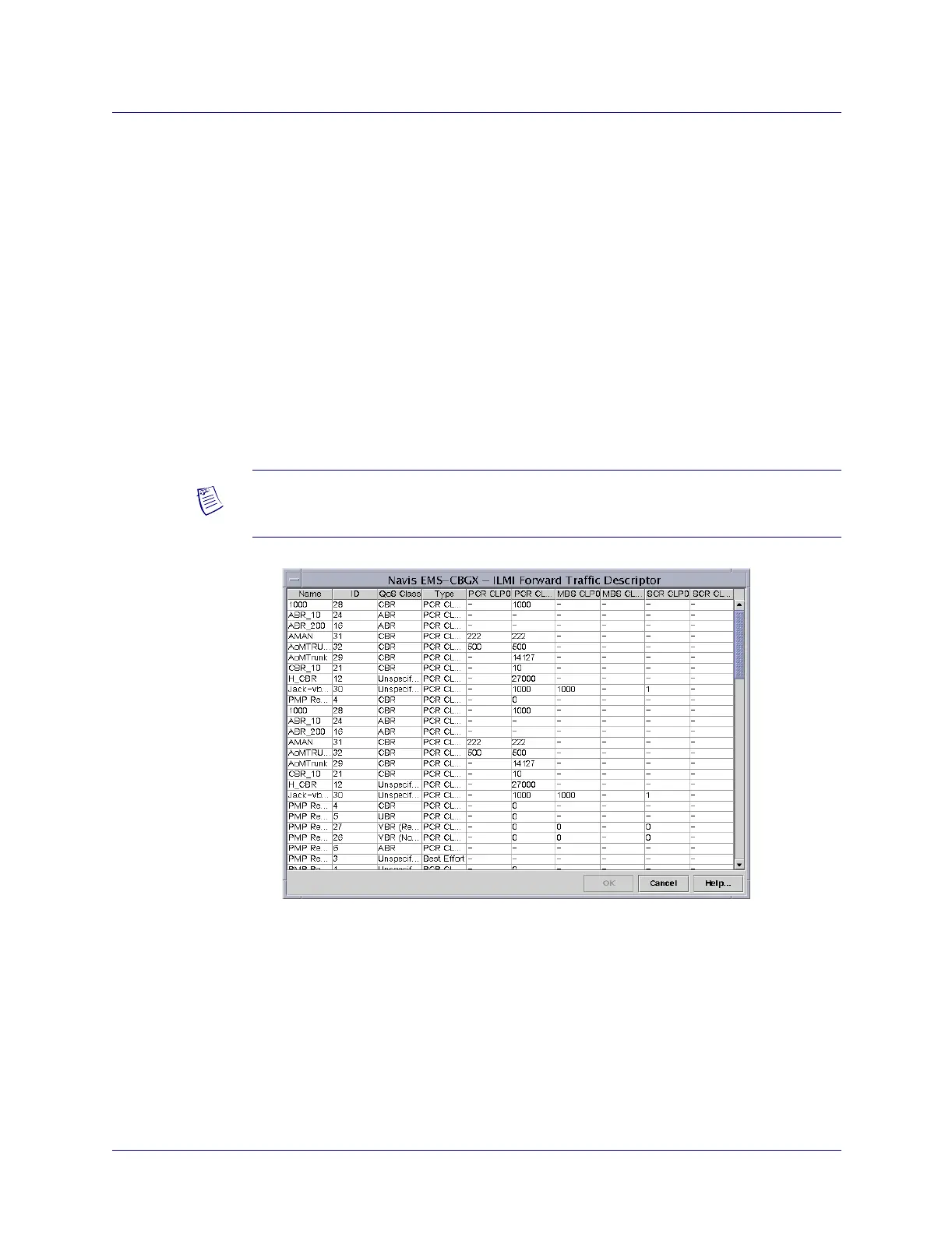

Figure 12-3. ILMI Forward Traffic Descriptor Dialog Box
2. Select a traffic descriptor name from the Name field for either the forward TD or
the reverse TD.
3. Choose OK to complete this configuration.
Note – The fields in Figure 12-3 are display-only and are configured from the Add
Traffic Descriptor dialog box (Figure 12-2 on page 12-9).
