4-52 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM Logical Ports on Frame-based Modules
Completing the Logical Port Configuration
Completing the Logical Port Configuration
Use the following steps to complete the logical port configuration:
1. (Optional) To configure this logical port for a specific Layer2 VPN and customer
name, see “Configuring a Logical Port for Layer 2 VPN” on page 13-7.
2. (Optional) If this is an ATM UNI, ATM OPTimum cell trunk, or ATM direct cell
trunk logical port type on a 1-port ATM CS DS3/E3 or 1-port ATM IWU
OC-3c/STM-1 card, you can configure QoS parameters.
From the Add Logical Port dialog box (Figure 4-12), select the QoS tab.

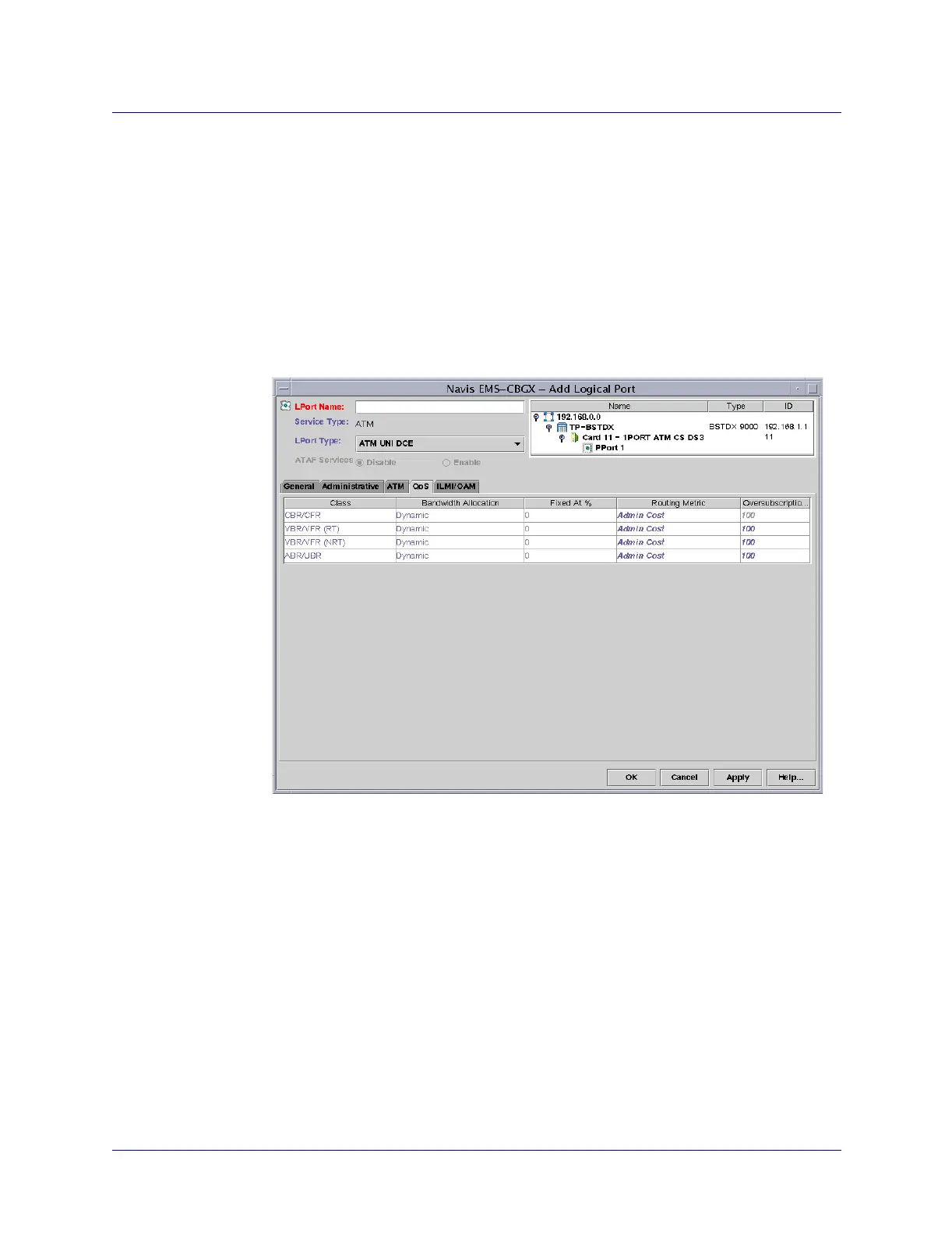

Figure 4-12. Add Logical Port: QoS Tab
See “Setting QoS Parameters” on page 3-51 for more information.
3. Choose OK. The Add Logical Port dialog box closes and the logical port is saved.
4. Configure the remaining logical ports for this physical port. See the instructions in
this chapter for the specific type of logical port you want to add.
