Beta Draft Confidential
Configuring ATM PVCs
Configuring PMP Circuits
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0510-87
Figure 10-28 illustrates invalid and valid configuration examples that show how
multiplexing cannot and can occur at the port level.

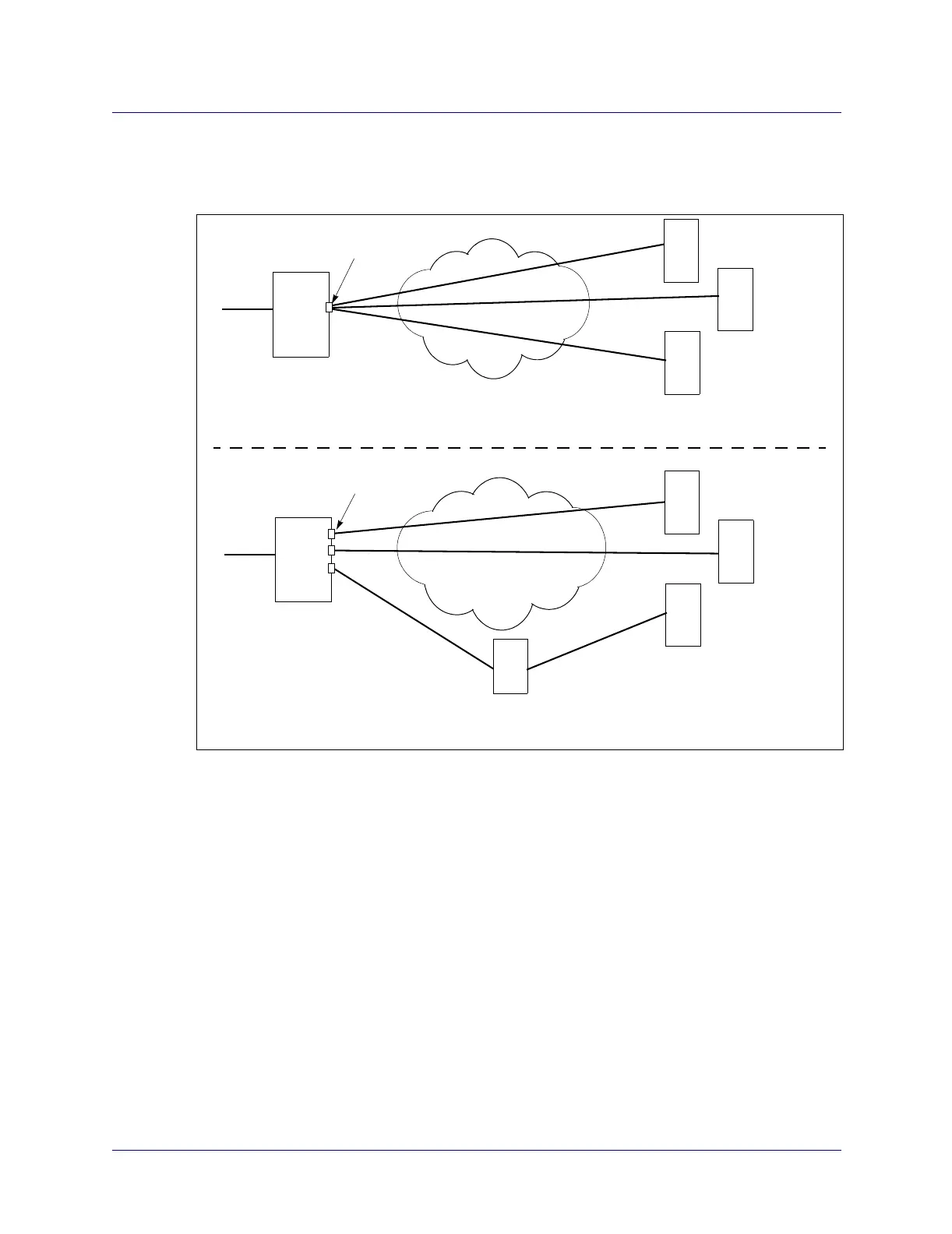

Figure 10-28. PMP Circuit Example
Three OPTimum trunks configured
on one physical port
Leaf 1
Leaf 2
Leaf 3
This configuration is not completely successful. Data can only be sent over one of the defined leafs.
This configuration is valid. Data can be sent over all three leafs because each leaf is configured on
its own physical port.
Root
Root
Leaf 1
Leaf 2
Leaf 3
Three OPTimum trunks configured
on three different physical ports
