Configuring CBX or GX Logical Ports
Working With ATM Logical Ports

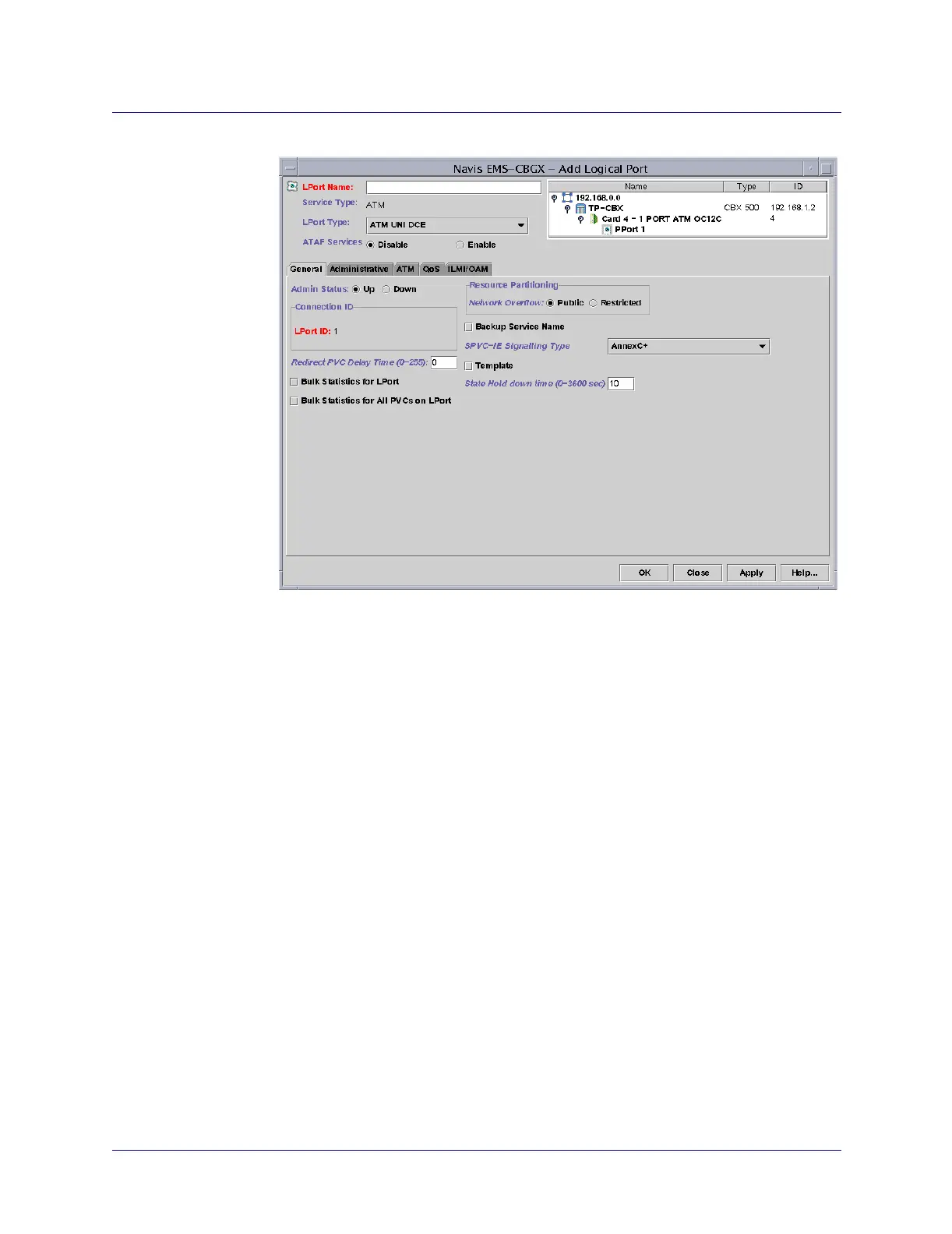

Figure 3-5. Add Logical Port Dialog Box
4. In the LPort Name field, enter a unique alphanumeric name for the logical port.
5. In the Service Type field, several types of logical ports default to an automatic
selection:
• ATM will be automatically selected for ATM-based logical ports.
• ATM CE will be automatically selected for ATM circuit emulation (CE)
logical ports.
• Other will be automatically selected for logical ports on POS cards, which
will also default to an LPort Type of Point to Point.
6. In the LPort Type field, select the ATM logical port type you want to configure
from the pull-down list.
The available options in the LPort Type field differ depending on the supported
ATM logical port types for your module. Possible options include:
•ATM CE
•ATM UNI DCE
•ATM UNI DTE
•ATM NNI
• ATM OPTimum Cell Trunk
•ATM Direct Trunk
