Configuring VNN OSPF

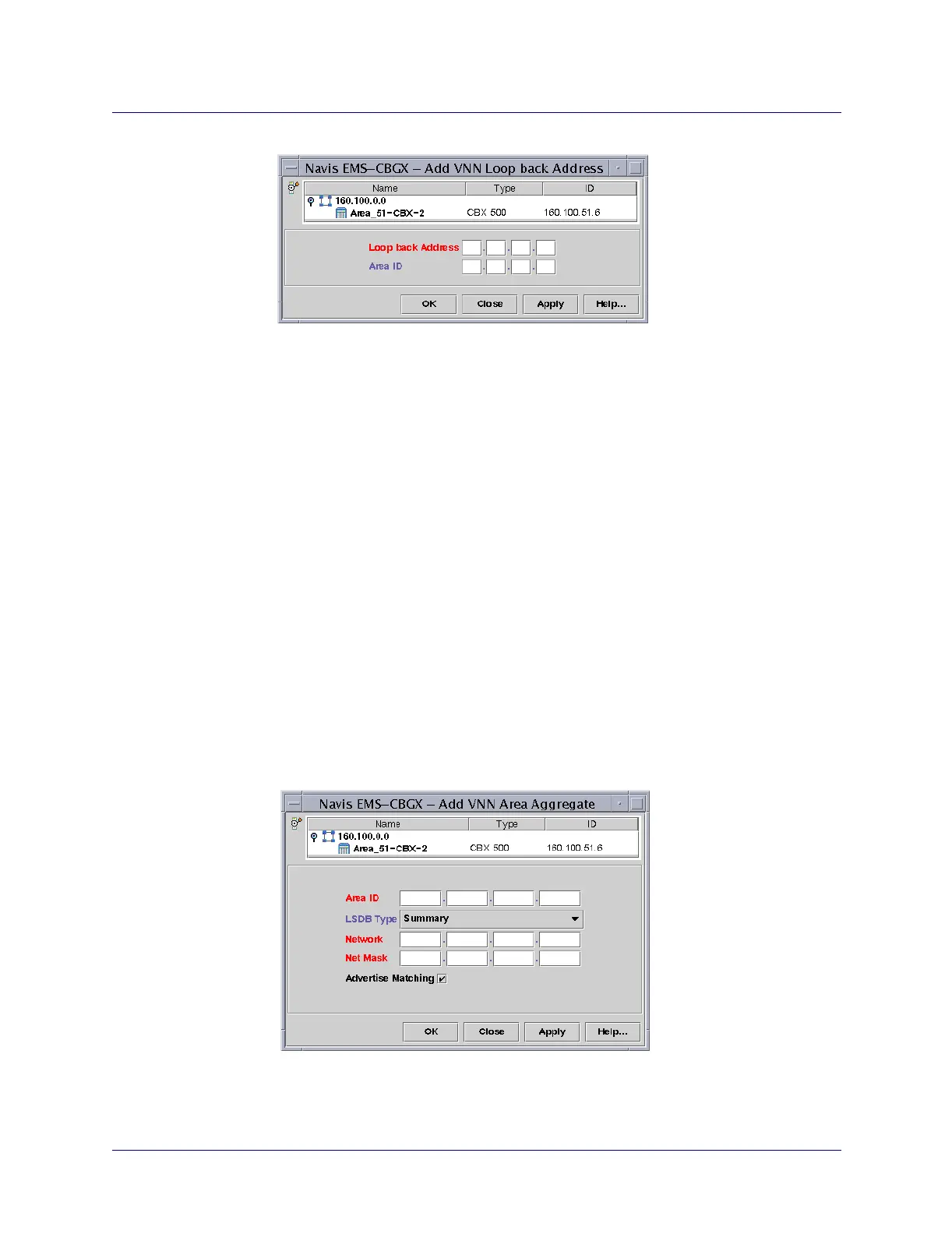

Figure 7-19. Add VNN Loop back Address Dialog Box
4. In the Loop back Address field, enter the loopback IP address (for example,
152.148.30.5).
5. Enter the Area ID (for example, 0.0.0.2).
6. When you have filled in the fields, choose OK to configure the VNN OSPF
loopback address.
The Add VNN Loop back Address dialog box closes.
Configuring VNN OSPF Area Aggregates
To configure a VNN OSPF area aggregate for a GX 550 or CBX 500 switch:
1. Expand the instance node for the switch to which you want to add a VNN OSPF
area aggregate.
2. Expand the VNN class node.
3. Right-click on the VNN Area Aggregates class node and select Add from the
pop-up menu.
The Add VNN Area Aggregate dialog box appears (Figure 7-20).
Figure 7-20. Add VNN Area Aggregate Dialog Box
