7-301/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring Trunks
Configuring APS Trunk Backup and Fast APS 1+1 for ATM Direct Trunks
5. Perform one of the following:
• Select Modify from the Actions menu.
• Choose the Modify button from the toolbar.
• Right-click on the PPorts class node and select Modify from the pop-up menu.
The Modify PPort dialog box appears (Figure 7-11).

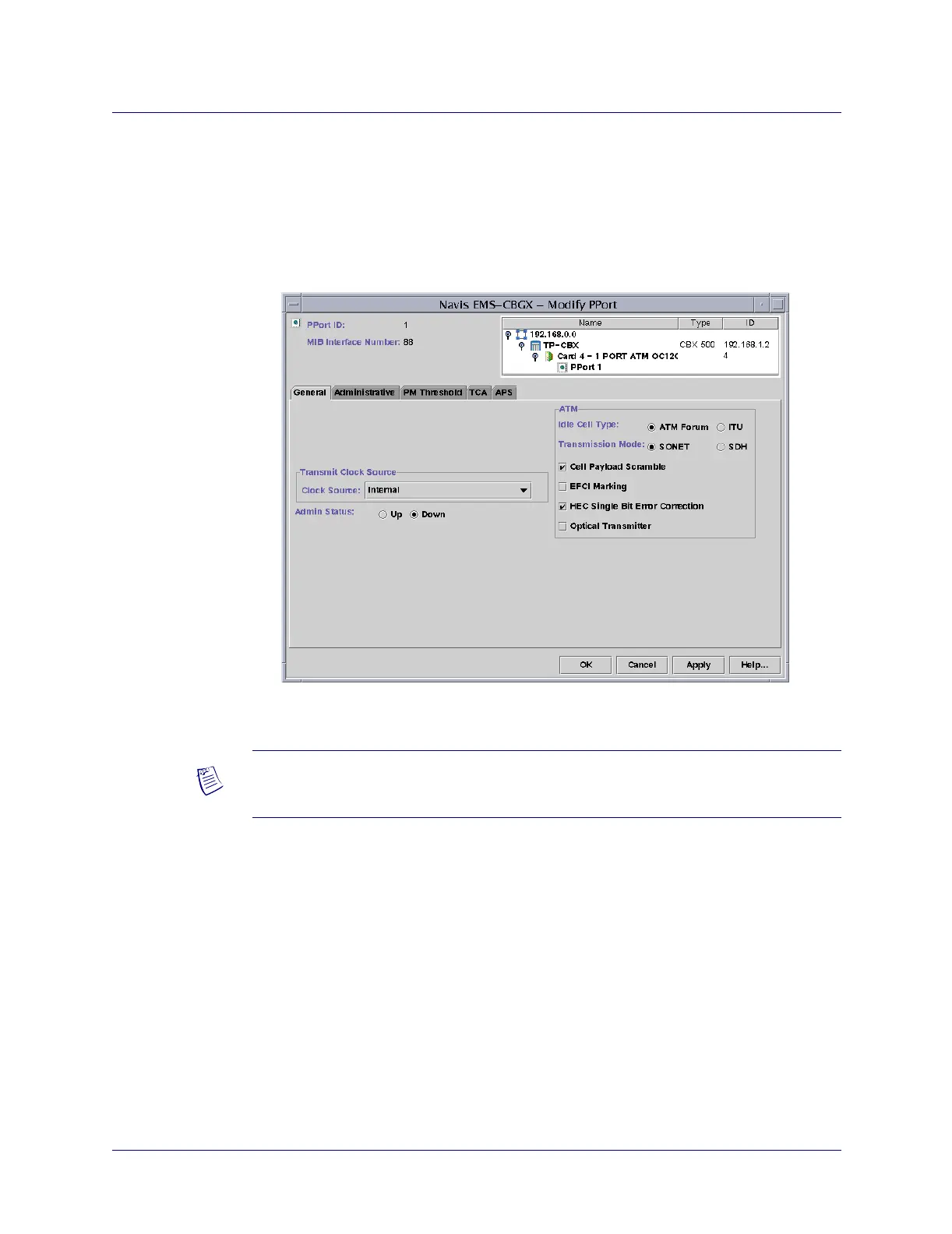

Figure 7-11. Modify PPort Dialog Box
6. Select the APS tab (Figure 7-11).
Note – For detailed descriptions of the tabs and fields in this dialog box, see the
Switch Module Configuration Guide
for CBX 3500, CBX 500, GX 550, and B-STDX 9000.
