Configuring ATM Over MPLS Trunks
Configuring Feeder Logical Ports
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/058-23
ATM Attributes

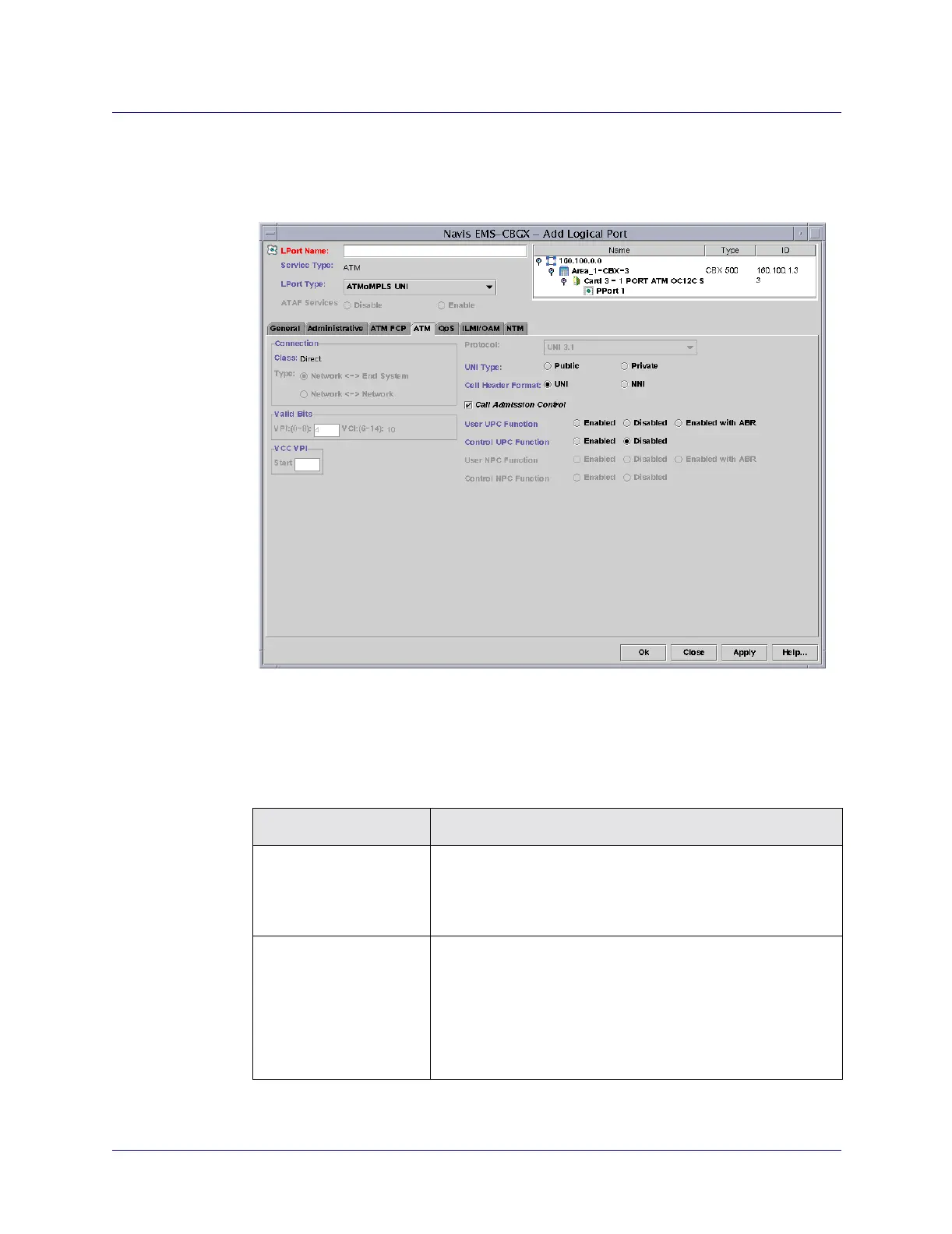

The ATM tab in the Add Logical Port dialog box is shown in Figure 8-12.
Figure 8-12. Add Logical Port: ATM Tab
For ATMoMPLS UNI/NNI feeder logical ports, you can configure the fields in the
ATM tab as described in Table 8-5.
Table 8-5. Add Logical Port: ATM Tab Fields
Field Action/Description
Class Specifies the logical port connection type, either Direct or
Virtual. Set to Direct when you configure the first UNI/NNI
logical port on this physical port. Set to Virtual when you
configure subsequent UNI/NNI ports on this physical port.
Type Specifies whether this port connects to another switch or
endsystem, or to a router or host.
Network <-> Endsystem – Port connects to a router or host
(UNI-DCE ports only). This is the default for DCE.
Network <-> Network – Port connects to another switch or an
end system. This is the default for DTE/NNI.
