Configuring SPVCs
Defining a Point-to-Point Offnet Circuit Connection
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0518-7
4. Choose the Select button in the Endpoints field to select circuit endpoints.
The Offnet Endpoint Selection dialog box appears (Figure 18-2).

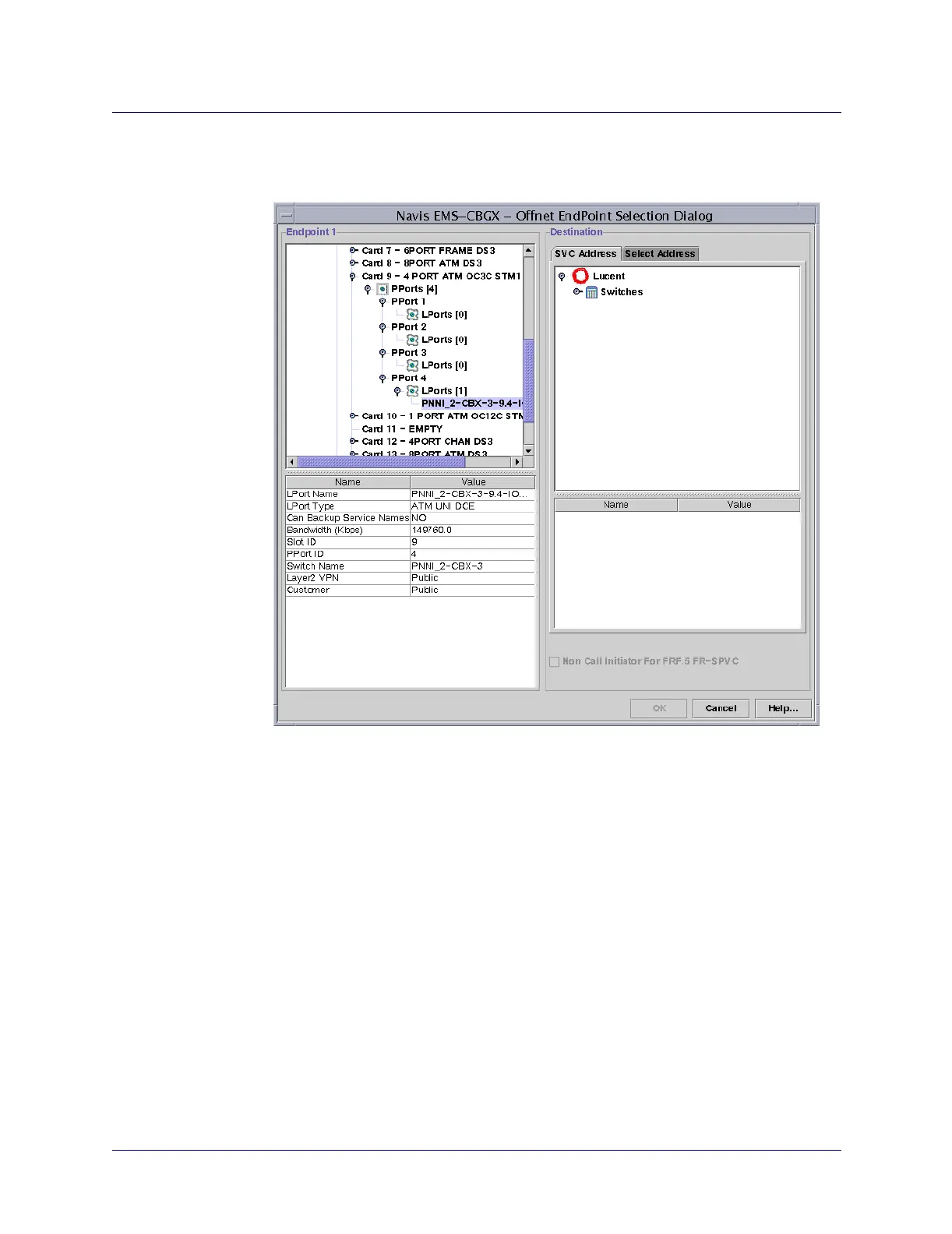

Figure 18-2. Offnet Endpoint Selection Dialog Box
5. Continue with “Selecting an Endpoint From a Switch” or “Selecting an Endpoint
From a Physical Port” to select the endpoint.
Selecting an Endpoint From a Switch
To select an endpoint fr0m a switch:
1. In the Offnet EndPoint Selection dialog box, expand the node for the desired
switch for Endpoint 1.
If you are creating an Offnet Circuit from an LPort node, Endpoint 1 is already set
for that LPort. Skip to step 4.
2. Expand the LPorts node under the switch.
3. Select the desired LPort.
4. Select the SVC Address tab or the Select Address tab to select or create a
Terminating Endpoint.
