Beta Draft Confidential
Configuring ATM PVCs
Moving Circuits
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0510-91

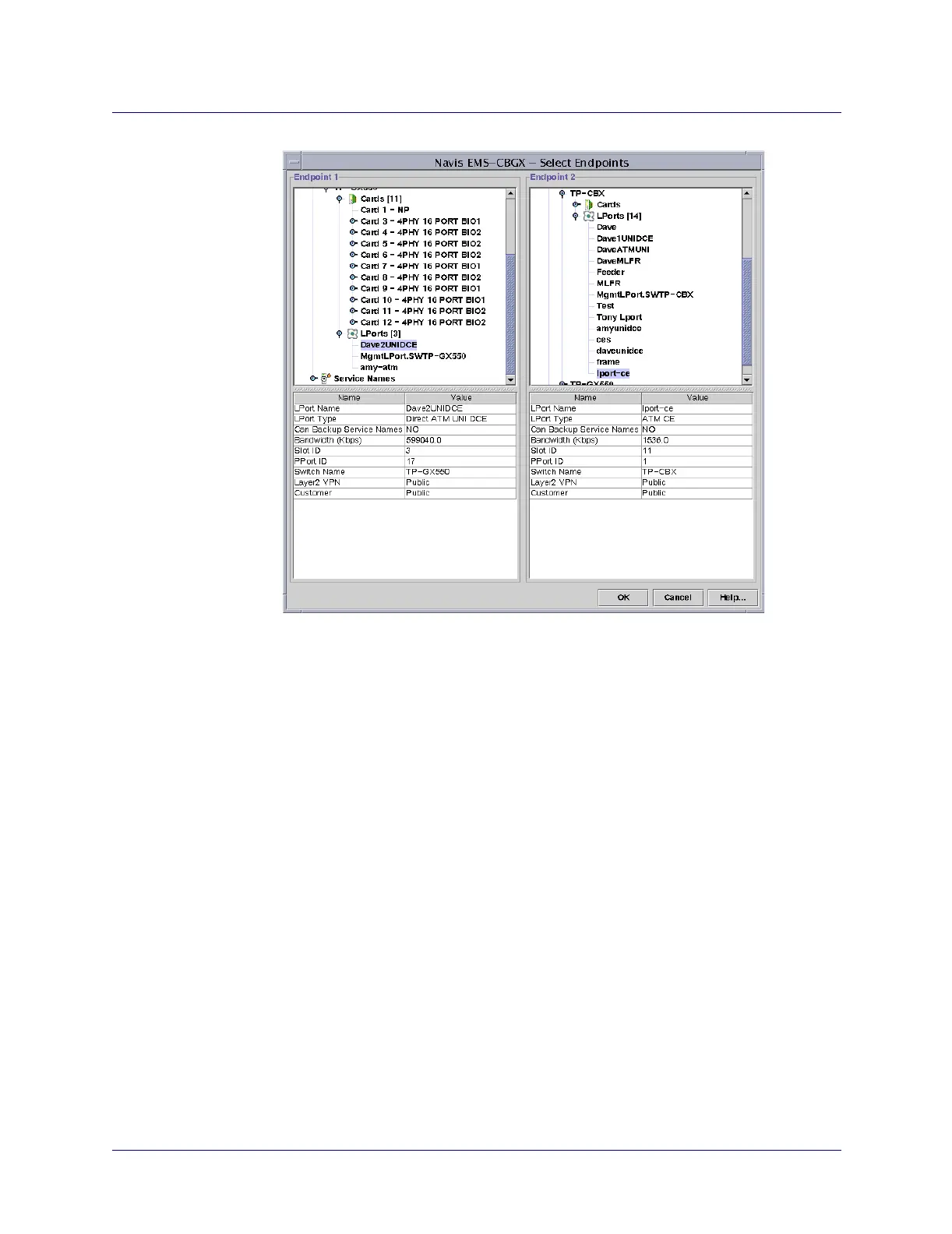

Figure 10-31. Select Endpoints Dialog Box
5. Select the logical ports between which you want to move circuit endpoints. The
left-hand side of the dialog box reflects the old (source) logical port endpoint, and
the right-hand side of the dialog box reflects the new (destination) logical port
endpoint.
6. Select the new endpoint by repeating this procedure or select an endpoint from a
physical port.
7. Choose OK when you have selected the logical ports.
8. To complete the circuit endpoint move, select the circuits to be moved in the Move
Circuit Endpoint dialog box, and choose Start to begin the move process.
9. Choose Close to close the Move Circuit Endpoint dialog box.
