Configuring SPVCs
Defining a PMP SPVC (Offnet Circuit)
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0518-31

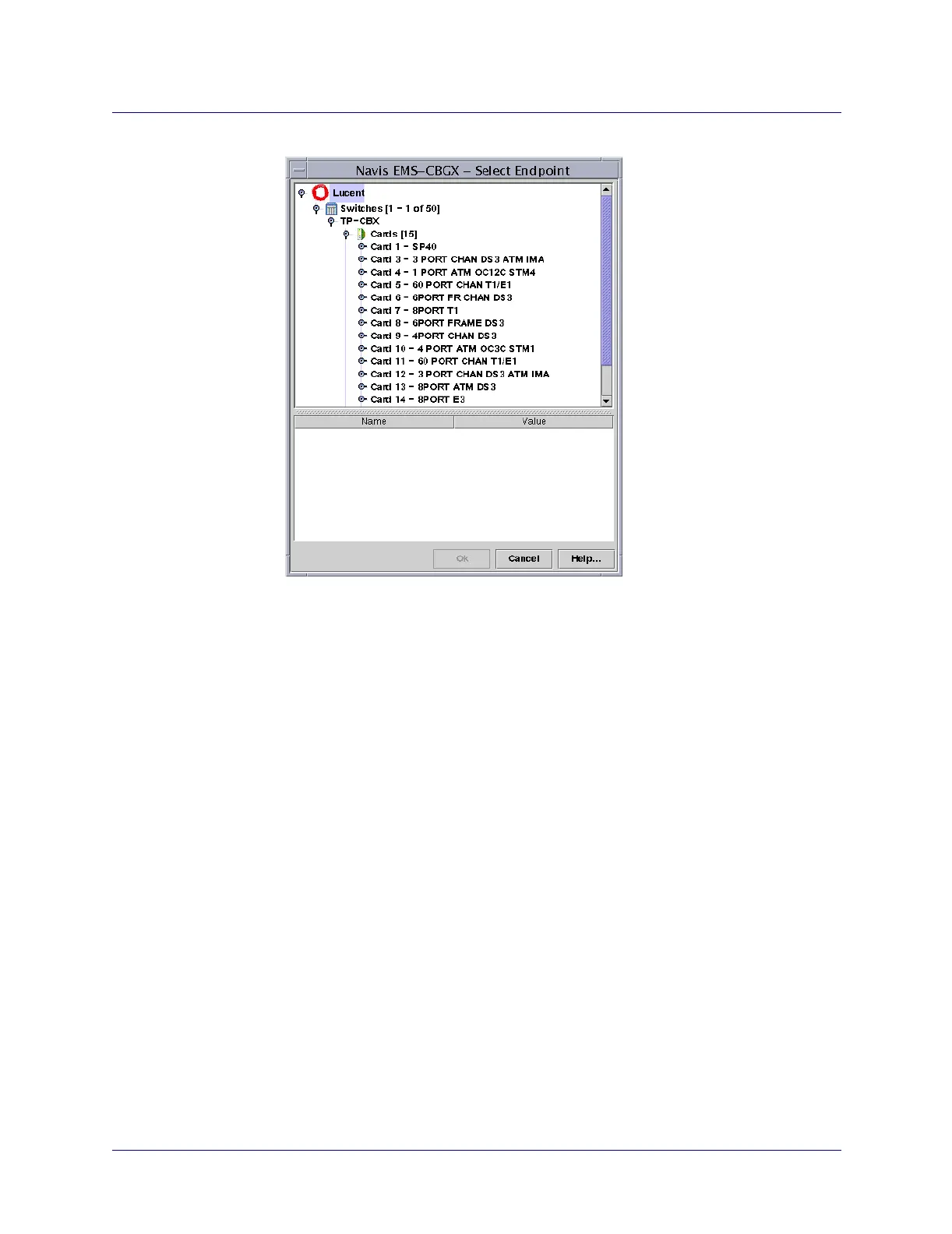

Figure 18-13. Select Endpoint Dialog Box
If you are creating an Offnet PMP PVC Root from an LPort node, you do not need
to select an endpoint. Continue with “Configuring Offnet PMP PVC Root
Parameters” on page 18-32.
5. Select the PMP root endpoint by using either of the following procedures:
• “Selecting an Endpoint From a Switch” below.
• “Selecting an Endpoint From a Physical Port” below.
Selecting an Endpoint From a Switch
To select an endpoint from a switch:
1. In the Select Endpoint dialog box, expand the node for the desired switch for the
endpoint.
2. Expand the LPorts node under the switch and select the desired LPort.
3. Choose OK and continue with “Configuring Offnet PMP PVC Root Parameters”
below.
