Configuring SVC Parameters
Configuring SVC Attributes
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0517-27

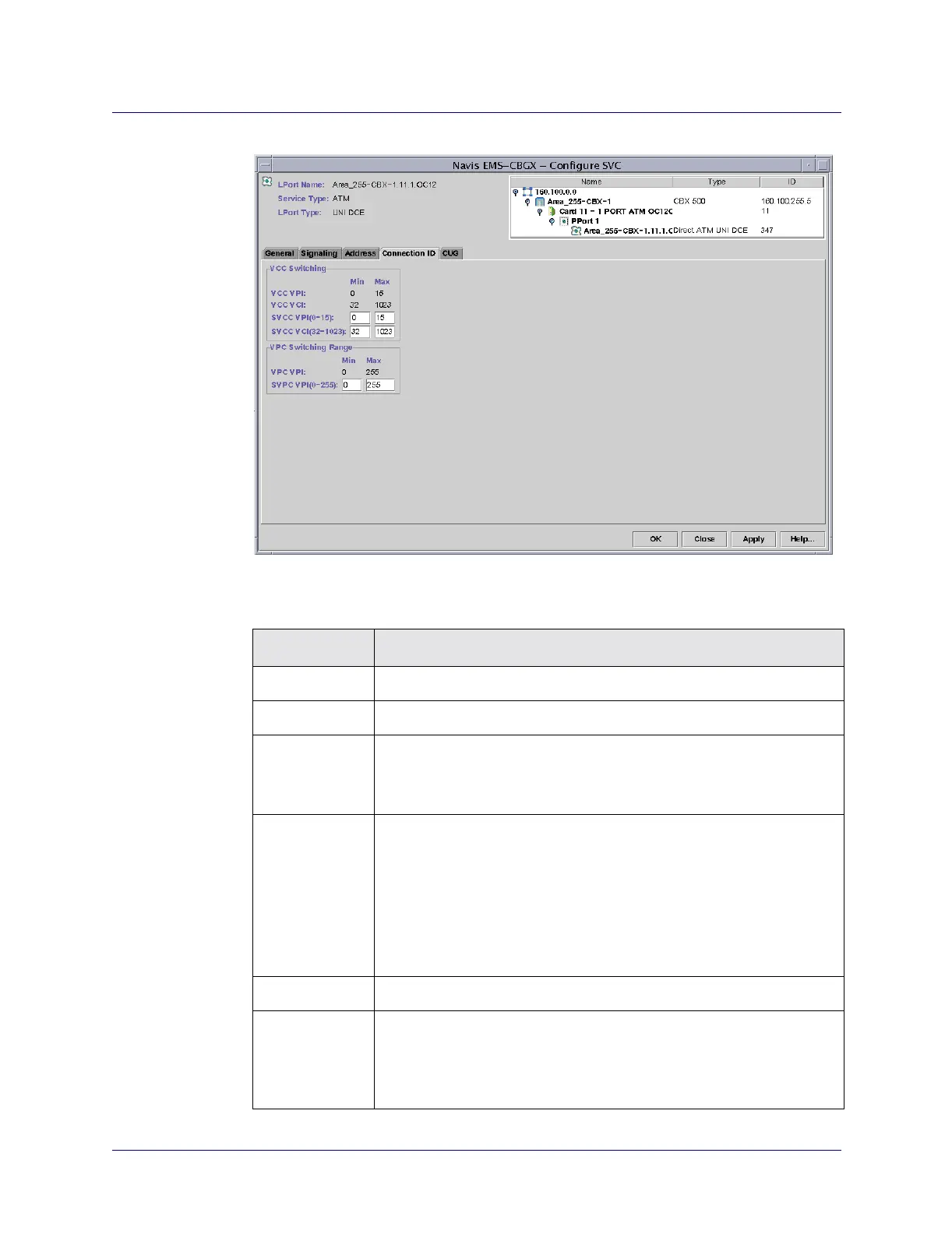

Figure 17-12. Configure SVC: Connection ID Tab
Table 17-7. Configure SVC: Connection ID Tab Fields
Field Action/Description
VCC VPI Displays the VPI for a VCC.
VCC VCI Displays the VCI for a VCC.
SVCC VPI
(0-15)
(Min and Max)
Enter the minimum and maximum values for the VPI range of switching.
Direct UNI – This range corresponds to the value you entered for
Number of Valid Bits in VPI (see page 3-29).
SVCC VCI
(32-1023)
(Min and Max)
Enter the minimum and maximum values for the VCI range of
switching. The range depends on the number of VCI valid bits for direct
UNI.
Direct UNI – This range corresponds to the value you entered for
Number of Valid Bits in VCI (see page 3-30).
Virtual UNI/NNI – This range depends on the number of VCI bits
configured on the feeder (direct) logical port.
VPC VPI Displays the VPI for a VPC.
SVPC VPI
(0-255)
(Min and Max)
(UNI 4.0 only)
Enter the minimum and maximum values for the VPI range of switching.
Direct UNI – This range corresponds to the Cell Header Format field
(see page 3-31). For UNI cell header types, the range is from 0 - 255; for
NNI, the range is from 0 - 4095.
