Beta Draft Confidential
17-601/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring SVC Parameters
Configuring SVC Port Addresses
DCC and ICD AESA SVC Address Format
Complete the following fields for the DCC or ICD AESA SVC address format:

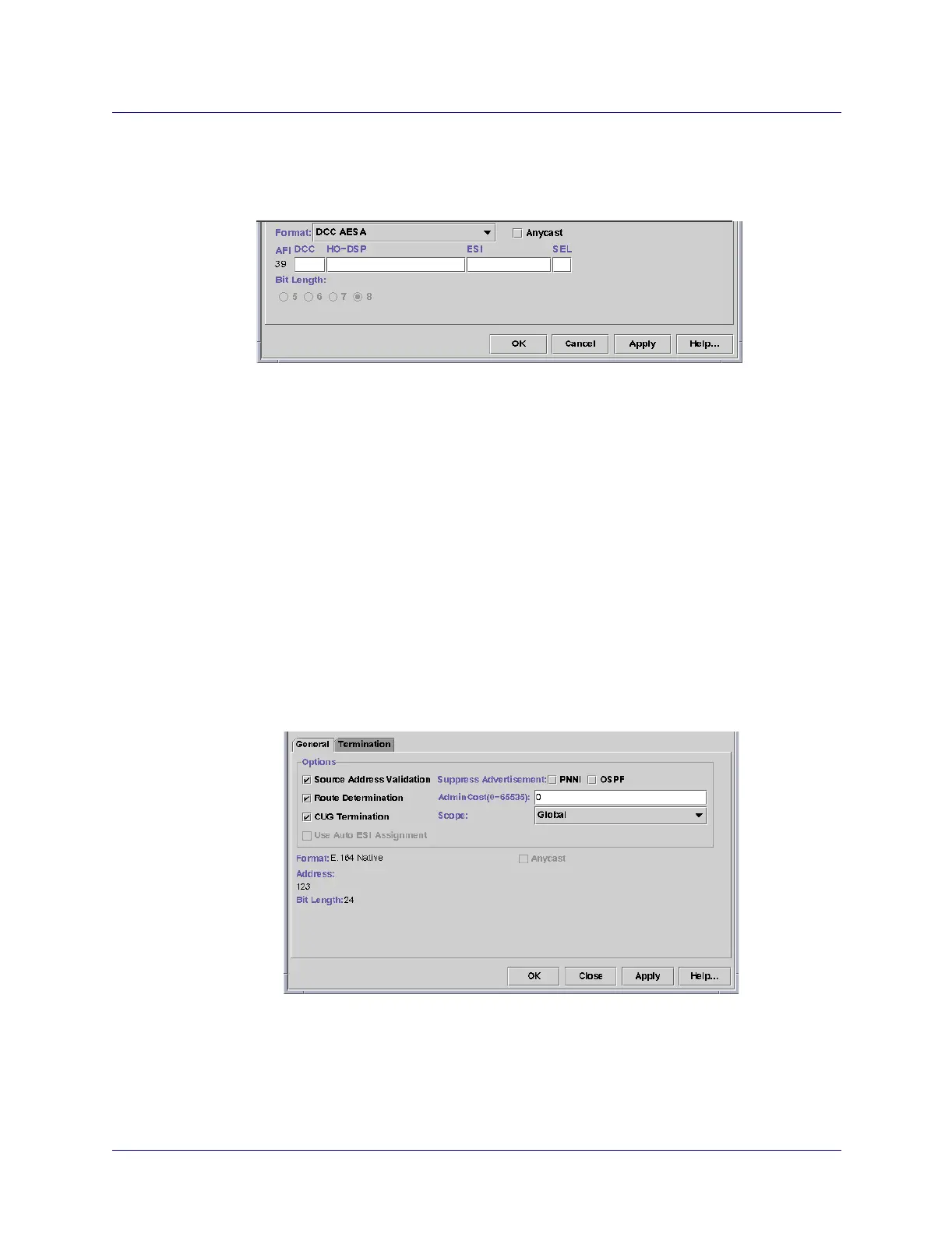

Figure 17-30. Add SVC Port Address: DCC or ICD AESA Format
1. If you want to create the address manually, continue with steps a, b, and c below.
If you want the Auto ESI Assignment feature to create the address, go to step 2
below.
a. In the DCC field, enter the DCC of the country in which the address is
registered, or the ICD that identifies the international organization to which
this address applies. DCCs and ICDs consist of 4 hex digits, and occupy two
octets.
b. Enter the appropriate HO-DSP, ESI and SEL values. For information on these
items and the appropriate format to use for DCC and ICD AESA addresses,
see “AESA Formats” on page 16-2.
c. See Table 17-14 on page 17-63 to configure additional fields. Go to step 3.
2. Select the check box in the Using Auto ESI Assignment field. The address will be
filled in automatically (Figure 17-31).
Figure 17-31. Add SVC Port Address: Use Auto ESI
3. Choose OK to save the SVC port address and close the Add SVC Port Address
dialog box.
