Configuring PNNI Routing
PNNI Reroute Load Balancing
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0521-23

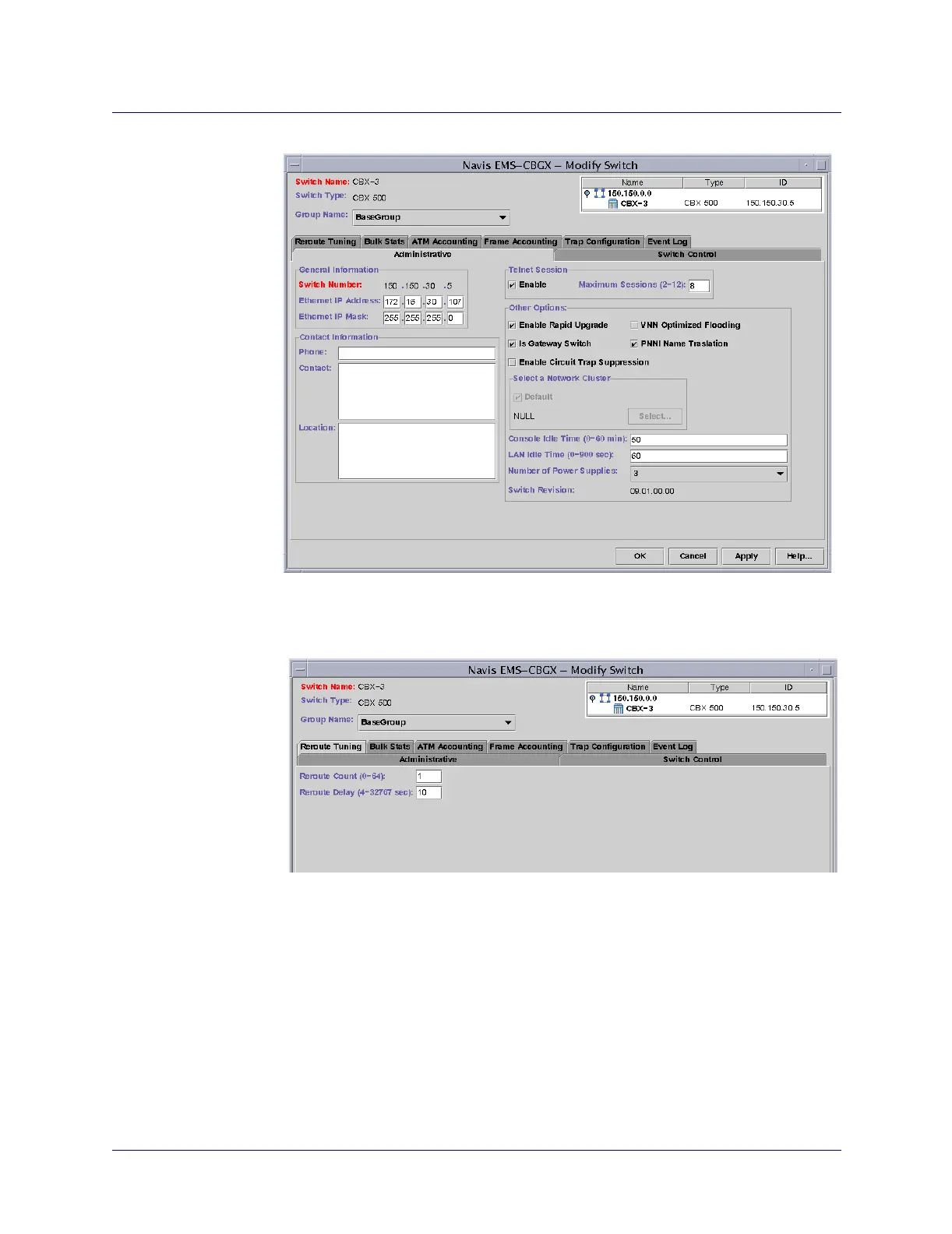

Figure 21-5. Modify Switch Dialog Box
2. Select the Reroute Tuning tab in the Modify Switch dialog box (Figure 21-6).
Figure 21-6. Modify Switch: Reroute Tuning Tab
