7. Select the PNNI tab (Figure 21-15).

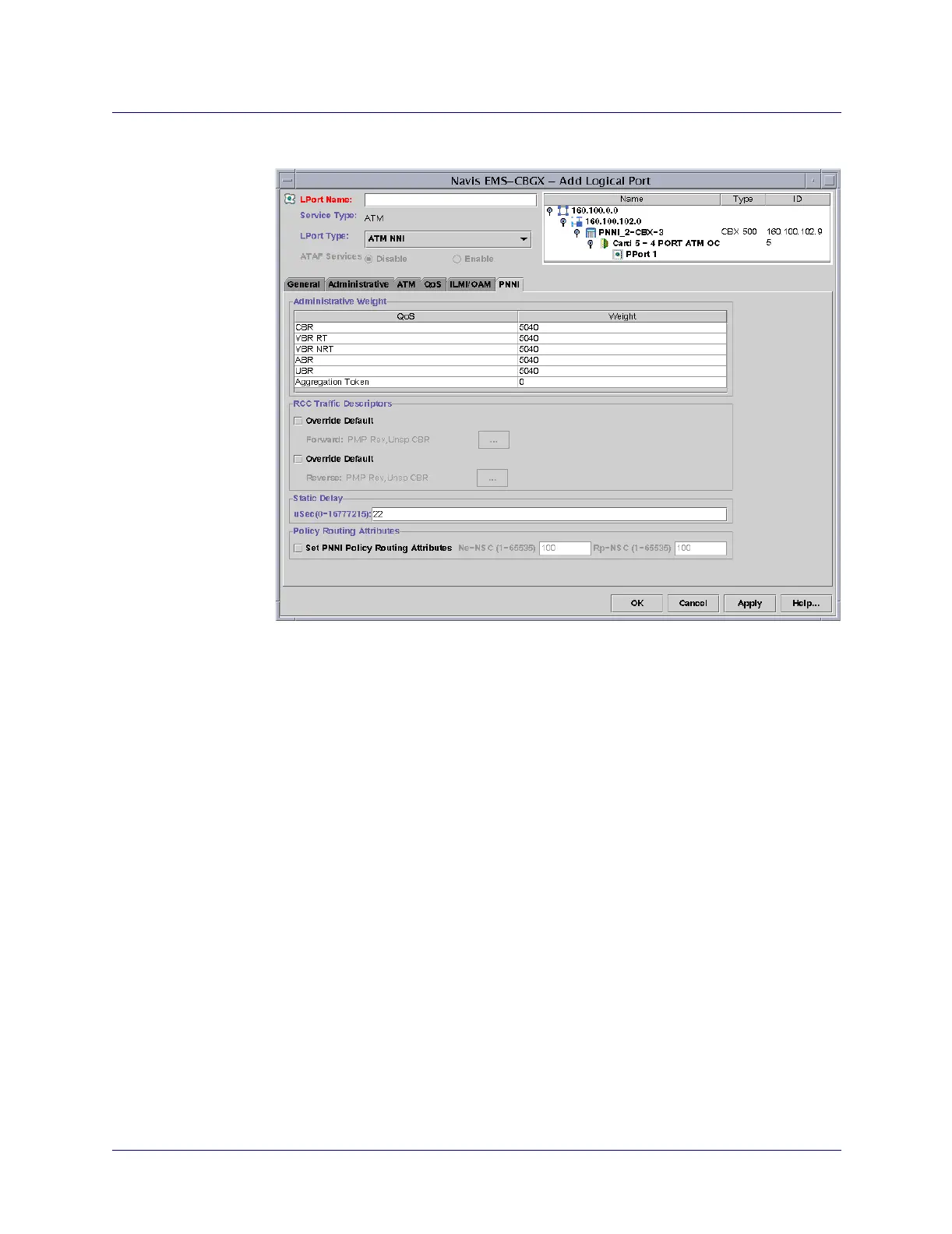

Figure 21-15. Add Logical Port: PNNI Tab
The PNNI tab enables you to configure the PNNI administrative weight status by
assigning an administrative weight to each QoS category field. This weight allows
you to configure the network to favor one path over another path for a given
category. The weights of all the network interfaces along a path are added up, and
switches choose the path with the lowest cumulative weight when making routing
decisions.
For example, suppose that VBR-RT traffic has two available paths for reaching a
given destination: one path has a weight of 1000 and the other path has a weight of
4000. If the call requests VBR-RT QoS and administrative weight as a metric and
if the path has sufficient bandwidth and other metric resources, then the switch
will choose the path with the weight of 1000.
In a network that supports, for example, both CBR and UBR calls, you can
configure PNNI administrative weight values so that the switch will choose one
path for the CBR calls and a different path for the UBR calls.
