Port Security Screening
Administrative Tasks
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0520-11
To assign security screens to a port:
1. In the Switch tab, expand the LPorts node.
2. Right-click on the LPort you want to configure, and select Security from the
pop-up menu, as shown in Figure 20-3.

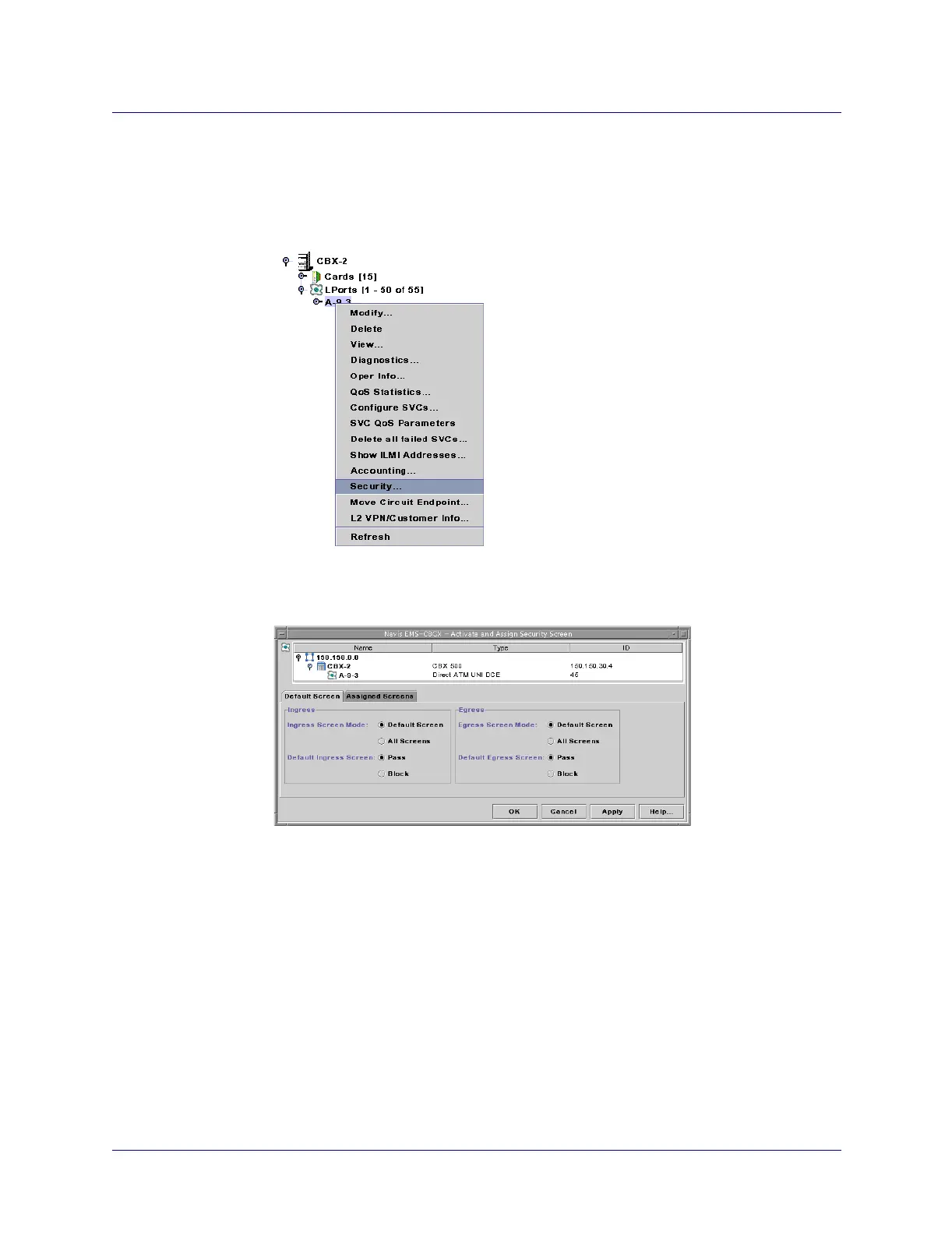

Figure 20-3. Assigning a Security Screen to a Logical Port
The Activate and Assign Security Screen dialog box appears (Figure 20-4).
Figure 20-4. Activate and Assign Security Screen: Default Screen Tab
3. Select the Default Screen tab in the Activate and Assign Security Screen dialog
box, and complete the Default Screen tab fields as described in Table 20-4.
