Beta Draft Confidential
9-381/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM Over MPLS Gateway Solution on CBX 3500
Configuring a Layer 2 Tunnel Over MPLS Core Network
4. Clear the checkbox from the RsvpTE Enable field. RSVP will be disabled for this
IP LPort.
5. When you complete the configuration, choose OK to save the changes and close
the dialog box.
Specifying the IP Interface Address
The IP interface address is used by the MPLS network to identify endpoints. To
specify the IP interface address for an IP LPort:
1. Expand the instance node for the IP LPort for which you want to specify the IP
interface address.
2. Right-click on the IP Interface Address class node and select Add from the pop-up
menu.

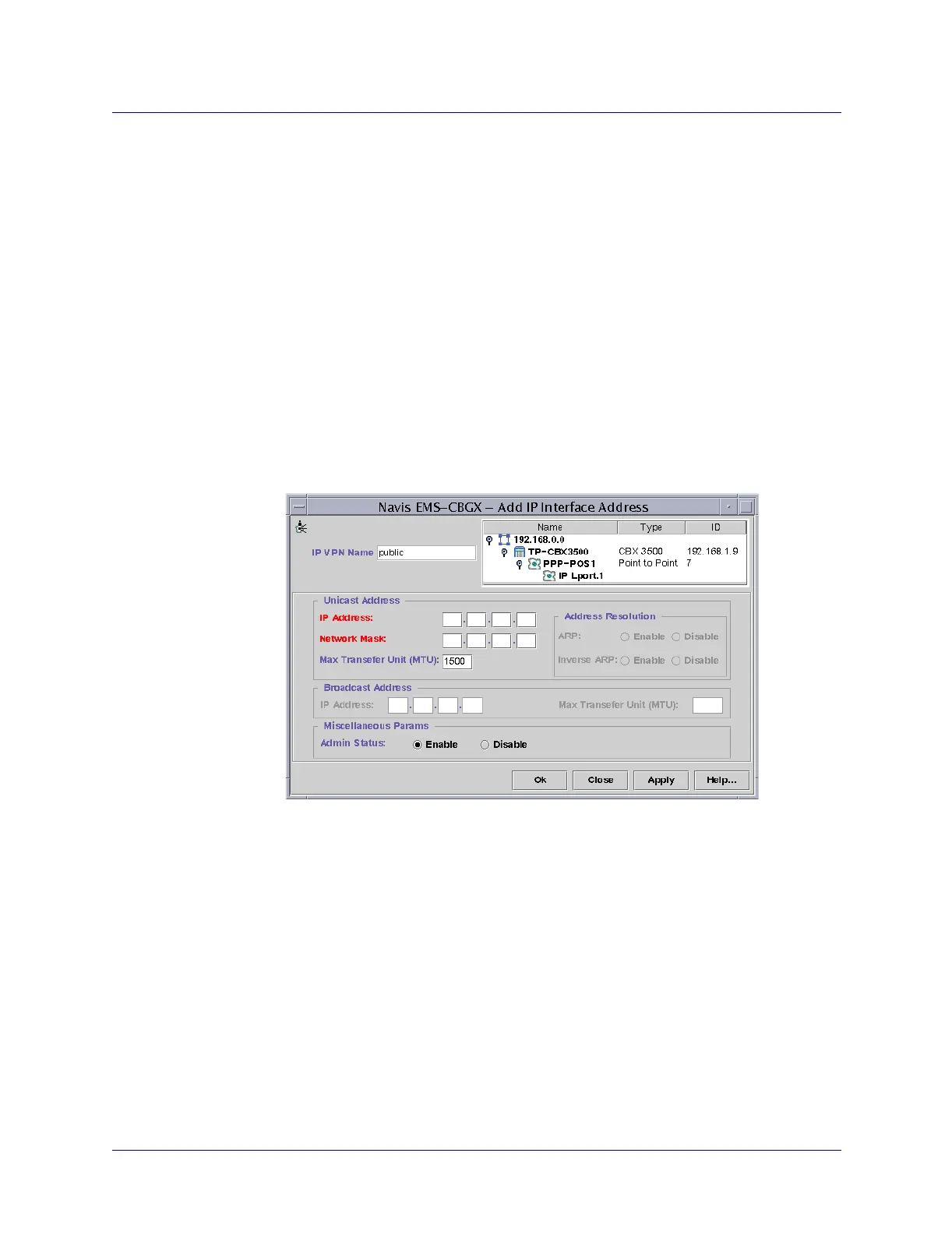

The Add IP Interface Address dialog box appears (Figure 9-19).
Figure 9-19. Add IP Interface Address Dialog Box
