Configuring ATM Traffic Descriptors
Configuring ATM TDs
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0512-9
2. Right-click on the Traffic Descriptors class node and select Add from the pop-up
menu.
The Add Traffic Descriptor dialog box appears (Figure 12-2).

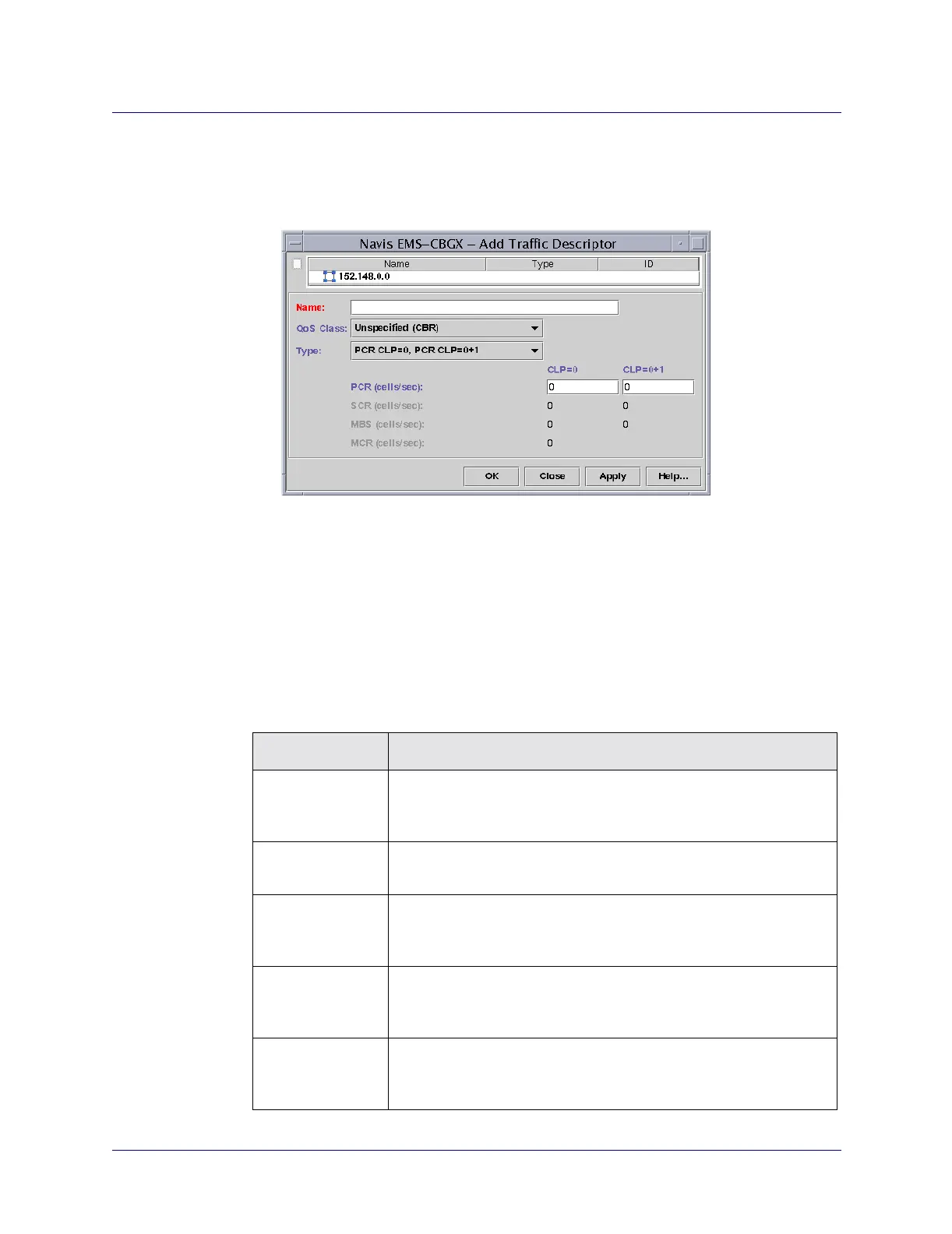

Figure 12-2. Add Traffic Descriptor Dialog Box
3. Enter a name (up to 20 characters) for this TD type.
4. See Table 12-1 on page 12-3 to select the QoS class. Note that your choice of QoS
class affects which TDs are available. If the attached equipment does not support
QoS classes other than zero (0), select only the unspecified service classes.
5. See Table 12-3 on page 12-6 to select the TD type.
6. Use the information in Table 12-4 to specify the required values in CPS.
Table 12-4. TD Types
TD Type Description
PCR CLP=0
(cells/sec)
Displays only if you selected a TD combination that includes PCR
CLP=0. If so, specify the PCR in cells per second for high-priority
traffic (that is, the CLP=0 cell stream).
PCR CLP=0+1
(cells/sec)
Specify the PCR in CPS for combined high- and low-priority traffic
(that is, the CLP=0+1 aggregate cell stream).
SCR CLP=0
(cells/sec)
Displays only if you selected a TD combination that includes SCR
CLP=0. If so, specify the SCR in CPS for combined high-priority
traffic (that is, the CLP=0 cell stream).
SCR CLP=0+1
(cells/sec)
Displays only if you selected a TD combination that includes SCR
CLP=0+1. If so, specify the SCR in CPS for combined high- and
low-priority traffic (that is, the CLP=0+1 aggregate cell stream).
MBS CLP=0
(cells/sec)
Displays only if you selected a TD combination that includes MBS
CLP=0. If so, specify the MBS (in cells per second) for combined
high-priority traffic (that is, the CLP=0 cell stream).
